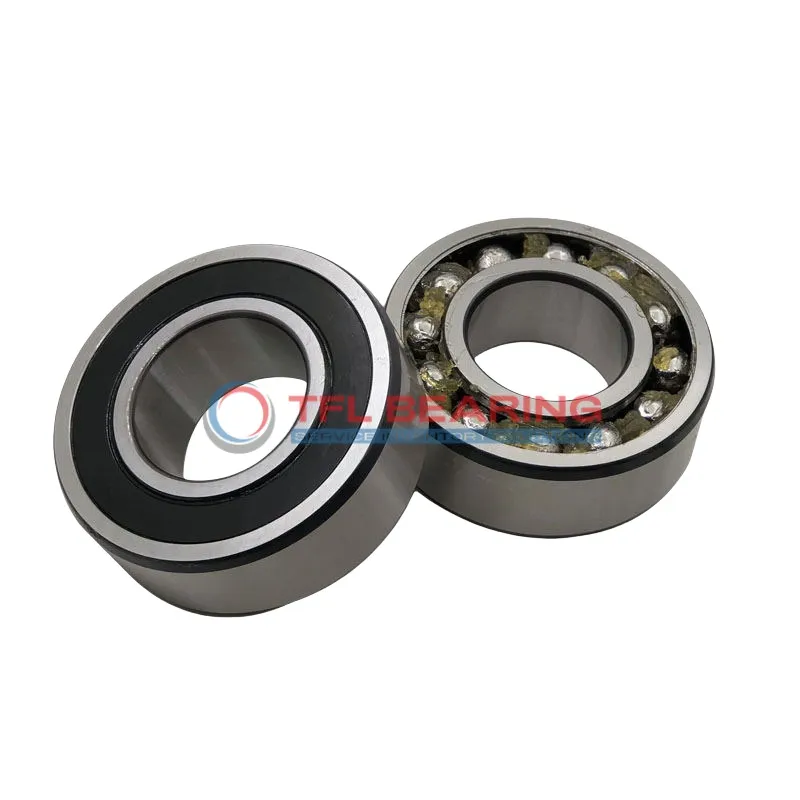

Self Aligning Ball Bearings 2309-2RSTN

Self Aligning Ball Bearings 2309-2RSTN

The 2309-2RSTN is a self-aligning ball bearing with a 45mm bore and 100mm outer diameter, crafted from sturdy chrome steel. It manages radial loads up to 8775 lbf and operates smoothly at speeds up to 4300 RPM.

Its double-row design and sealed construction help it stay aligned and protected from dust, while the nylon cage reduces friction. The bearing works in temperatures from -30°C to 110°C.

This model is interchangeable with SKF bearings, offering a reliable alternative for replacements. It’s well-suited for machinery where misalignment or heavy radial loads are expected, like conveyor systems or agricultural equipment.

Weighing 1.3kg, it’s robust yet manageable for its size. Compliant with RoHS and REACH standards, it’s a safe choice for various industrial applications.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 2309-2RSTN
  • Brand TFL & OEM
  • Interchangeable SKF
  • Bore Dia 45 mm
  • Bore Dia Tolerance -0.012mm to 0
  • Outer Dia 100 mm
  • Outer Dia Tolerance -0.015mm to 0
  • Width 36 mm
  • Width Tolerance -0.12mm to 0
  • External Diameter On Inner Ring 60.9 mm
  • Internal Diameter On Outer Ring 90 mm
  • Chamfer Dimension 1.5 mm
  • System of Measurement Metric
  • Bearing Type Ball
  • Bore Type Cylindrical
  • For Load Direction Radial
  • Construction Double Row
  • Seal Type Sealed
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Nylon
  • Dynamic Radial Load 8775 lbf
  • Static Radial Load 3015 lbf
  • Lubrication Lubricated
  • Temperature Range -30° to 110 °C
  • Radial Clearance CN
  • RoHS Compliant
  • REACH Compliant
  • Max Speed 4300 rpm
  • Weight 1.3 kg
  • Price（$） 178.04
Self Aligning Ball Bearings 2309-2RSTN dimension drawing
Download DWG Download PDF

Features

How Is 2309-2RSTN Bearing Engineered for Reliability?

2309-2RSTN Bearing features a double-row design with chrome steel rings and balls, ensuring strong radial load capacity.
Its dynamic radial load reaches 8775 lbf, making it suitable for demanding applications.
The sealed construction and nylon cage help maintain lubrication and reduce wear.
With a maximum speed of 4,300 rpm, it offers a balance of durability and performance.

Application

Industrial Uses of 2309-2RSTN Bearing
2309-2RSTN Bearing is commonly used in conveyor systems and material handling equipment, where its self-aligning feature compensates for minor misalignments. The sealed design keeps contaminants out, ensuring long service life in dusty environments.

In automotive applications, 2309-2RSTN Bearing fits well in wheel hubs and transmissions, providing reliable radial load support. Its nylon cage reduces noise, making it suitable for passenger vehicles.

For automation systems, 2309-2RSTN Bearing works smoothly in robotic arms and assembly line equipment. The double-row construction offers stability, while the lubricated design minimizes maintenance needs.

In household appliances like washing machines, 2309-2RSTN Bearing handles unbalanced loads with ease. The chrome steel rings and balls ensure durability even with frequent use.
