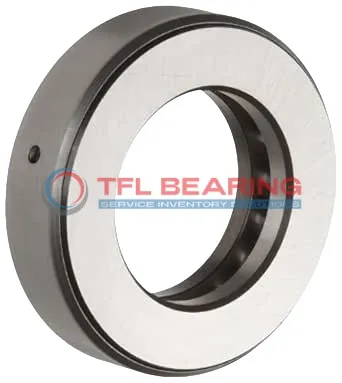

Thrust Ball Bearing With Outside Band T-100-28

Thrust Ball Bearing With Outside Band T-100-28

The T-100-28 is a thrust ball bearing with a 1.56-inch bore and 2.75-inch outer diameter, crafted from durable 52100 chrome steel. It handles thrust loads up to 7280 lbf and performs well across various speeds, from 100 to 1500 RPM.

Its outside band design provides stability, while the 15 steel balls ensure smooth rotation. The bearing requires regular lubrication for optimal performance.

Suitable for temperatures between -30°C and 110°C, it’s a reliable choice for industrial machinery or automotive applications. Weighing 0.43kg, it balances strength and portability.

Compliant with RoHS and REACH standards, this bearing is built for long-term use in demanding environments.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number T-100-28
  • Brand TFL
  • Bore Dia 1.562500"
  • Bore Dia Tolerance +0.001" to +0.003"
  • Inner Dia Housing Washer 1.593750"
  • Outer Dia 2.75"
  • Outer Dia Tolerance -0.015" to +0.015"
  • Width 1"
  • Width Tolerance -0.005" to +0.005"
  • Ball Dia 7/16"
  • Ball Qty 15
  • System of Measurement Inch
  • Bearing Type Ball
  • For Load Direction Thrust
  • Ring Material 52100 Chrome Steel
  • Ball Material 52100 Chrome Steel
  • Dynamic Thrust Load 7280 lbf
  • Dynamic Thrust Load(100 RPM) 4795 lbf
  • Dynamic Thrust Load(500 RPM) 2955 lbf
  • Dynamic Thrust Load(1500 RPM) 2120 lbf
  • Static Thrust Load 25653 lbf
  • Lubrication Required
  • Temperature Range -30° to 110 °C
  • RoHS Compliant
  • REACH Compliant
  • Weight 0.43 kg
Thrust Ball Bearing With Outside Band T-100-28 dimension drawing
Download DWG Download PDF

Features

How Does T-100-28 Bearing Handle Heavy Loads?

T-100-28 Bearing is crafted from 52100 chrome steel, offering robust resistance to high thrust loads.
Its dynamic thrust load capacity reaches 7280 lbf, ensuring dependable performance in demanding conditions.

The bearing’s 15 chrome steel balls distribute loads evenly, reducing wear and enhancing durability.
With a static thrust load of 25653 lbf, it excels in applications requiring long-term reliability.

T-100-28 Bearing operates smoothly within a temperature range of -30° to 110°C.
Its inch-based measurements ensure compatibility with systems requiring precise imperial fittings.

Application

Industrial Uses of T-100-28 Bearing
T-100-28 Bearing is commonly used in heavy machinery, especially where axial loads need to be managed efficiently, like in hydraulic pumps and gear reducers. Its inch sizing makes it a good fit for equipment designed to imperial specifications.

In automotive applications, T-100-28 Bearing can be found in clutch assemblies and steering systems, where its high static thrust load capacity ensures reliable performance. The chrome steel construction adds to its longevity in demanding conditions.

For automation systems, T-100-28 Bearing supports robotic arms and conveyor belts, providing smooth movement under thrust loads. The required lubrication helps maintain its efficiency over extended periods of use.

Where Is T-100-28 Bearing Used?
T-100-28 Bearing is often seen in industrial fans and blowers, where its ability to handle dynamic thrust loads keeps operations running smoothly. The outside band design adds stability during high-speed rotations.

In household appliances like washing machines, T-100-28 Bearing helps manage axial loads in spin cycles. Its durable materials ensure it can withstand frequent use without compromising performance.
