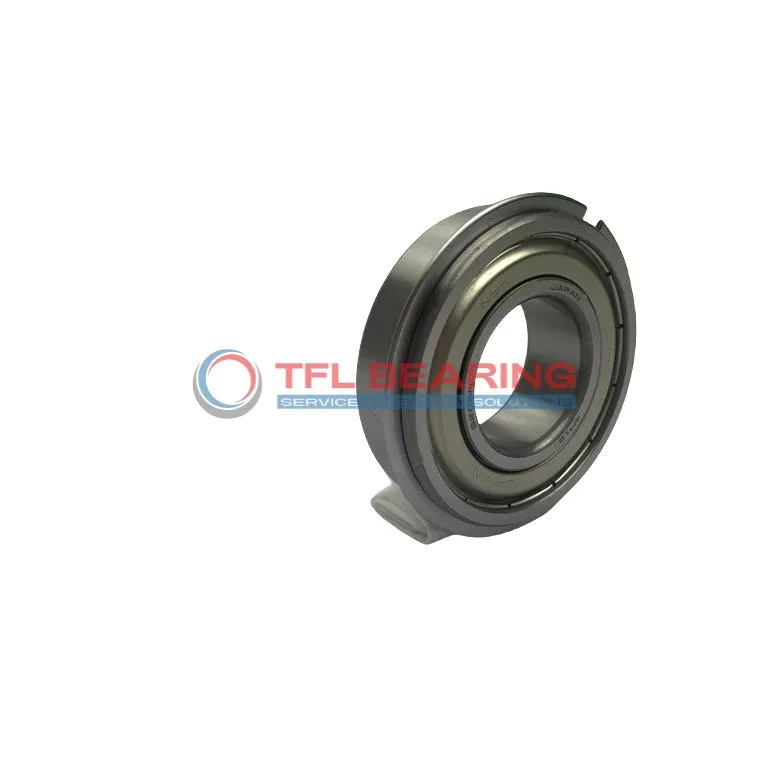

Snap Ring Groove Ball Bearings 6015-ZNR

Snap Ring Groove Ball Bearings 6015-ZNR

The 6015-ZNR is a shielded snap ring groove ball bearing with a 75mm bore and 115mm outer diameter, crafted from sturdy chrome steel. It manages radial loads up to 8902 lbf and operates smoothly at speeds up to 5600 RPM.

Its snap ring design ensures secure fitting, while the single-row construction offers reliable performance. The bearing works in temperatures from -30°C to 120°C, making it versatile for various conditions.

This model is interchangeable with SKF bearings, simplifying replacements. Ideal for machinery requiring radial load support, such as motors or conveyor systems.

Weighing 638g, it’s robust yet manageable. Compliant with RoHS and REACH standards for safe and eco-friendly use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 6015-ZNR
  • Brand TFL
  • Interchangeable SKF
  • Bore Dia 75 mm
  • Bore Dia Tolerance -0.015mm to 0
  • Outer Dia 115 mm
  • Outer Dia Tolerance -0.015mm to 0
  • Width 20 mm
  • Width Tolerance -0.150mm to 0
  • Outside Diameter Of Snap Ring 121.6 mm
  • Width Of Snap Ring 2.46 mm
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Shielded
  • Locating Feature Bearing Outer Ring Snap Ring (fitted)
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No CN
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Chrome Steel
  • Dynamic Radial Load 8902 lbf
  • Static Radial Load 7531 lbf
  • Temperature Range -30°to 120 °C
  • ROHS Compliant
  • REACH Compliant
  • Max Speed 5600 rpm
  • Weight 638 g
  • Price（$） 35.4
Snap Ring Groove Ball Bearings 6015-ZNR dimension drawing
Download DWG Download PDF

Features

Why Choose 6015-ZNR Bearing for Precision Tasks?

6015-ZNR Bearing features a shielded design, protecting against contaminants while maintaining smooth operation.
Its chrome steel construction ensures durability and resistance to wear in radial load applications.

The snap ring groove on the outer ring provides secure mounting, enhancing stability during operation.
With a dynamic radial load capacity of 8902 lbf, it handles demanding conditions reliably.

6015-ZNR Bearing operates efficiently at speeds up to 5,600 rpm, balancing performance and longevity.
Its temperature range of -30°C to 120°C makes it suitable for various industrial environments.

Application

Industrial Uses of 6015-ZNR Bearing
6015-ZNR Bearing is commonly used in conveyor systems, where its shielded design helps keep out dust and debris. The snap ring groove ensures easy installation and secure positioning in machinery frames.

What Makes 6015-ZNR Bearing a Preferred Choice?
In automotive applications like electric motors, 6015-ZNR Bearing offers reliable radial load support. Its chrome steel construction provides durability, even in high-temperature environments.

Built for Heavy-Duty Use: 6015-ZNR Bearing
This bearing works well in industrial fans and pumps, handling moderate speeds with consistent performance. The ABEC 1 tolerance ensures smooth operation without unnecessary precision costs.

Medical vs Industrial: Where 6015-ZNR Bearing Excels
While not typically used in medical devices, 6015-ZNR Bearing shines in packaging equipment and light industrial gear. Its snap ring feature simplifies maintenance in hard-to-reach areas.

Perfect Fit for Automation: 6015-ZNR Bearing
In robotic assembly lines, 6015-ZNR Bearing supports rotary joints with its balanced radial load capacity. The shielded design also reduces contamination risks in clean production environments.
