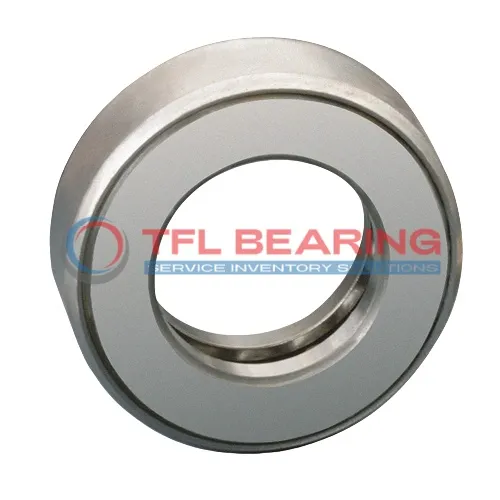

Thrust Ball Bearing With Outside Band T-100-15

Thrust Ball Bearing With Outside Band T-100-15

The T-100-15 is a thrust ball bearing with a 1.25-inch bore and 2.4-inch outer diameter, crafted from durable 52100 chrome steel. It handles thrust loads up to 5505 lbf and operates smoothly in temperatures from -30°C to 110°C.
Its outside band design provides stability, while the 15 chrome steel balls ensure even load distribution. Lubrication is required for optimal performance, making maintenance straightforward.
This bearing is ideal for heavy-duty applications like industrial machinery or automotive systems where high thrust loads are common. Compliant with RoHS and REACH standards, it’s a reliable choice for various engineering needs.
Weighing 0.32kg, it balances strength and portability for its size. The inch measurements make it compatible with systems using imperial units.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number T-100-15
  • Brand TFL
  • Bore Dia 1.25"
  • Bore Dia Tolerance +0.001" to +0.003"
  • Inner Dia Housing Washer 1.281250"
  • Outer Dia 2.406250"
  • Outer Dia Tolerance -0.015" to +0.015"
  • Width 0.937500"
  • Width Tolerance -0.005" to +0.005"
  • Ball Dia 3/8"
  • Ball Qty 15
  • System of Measurement Inch
  • Bearing Type Ball
  • For Load Direction Thrust
  • Ring Material 52100 Chrome Steel
  • Ball Material 52100 Chrome Steel
  • Dynamic Thrust Load 5505 lbf
  • Dynamic Thrust Load(100 RPM) 3625 lbf
  • Dynamic Thrust Load(500 RPM) 2235 lbf
  • Dynamic Thrust Load(1500 RPM) 1605 lbf
  • Static Thrust Load 18847 lbf
  • Lubrication Required
  • Temperature Range -30° to 110 °C
  • RoHS Compliant
  • REACH Compliant
  • Weight 0.32 kg

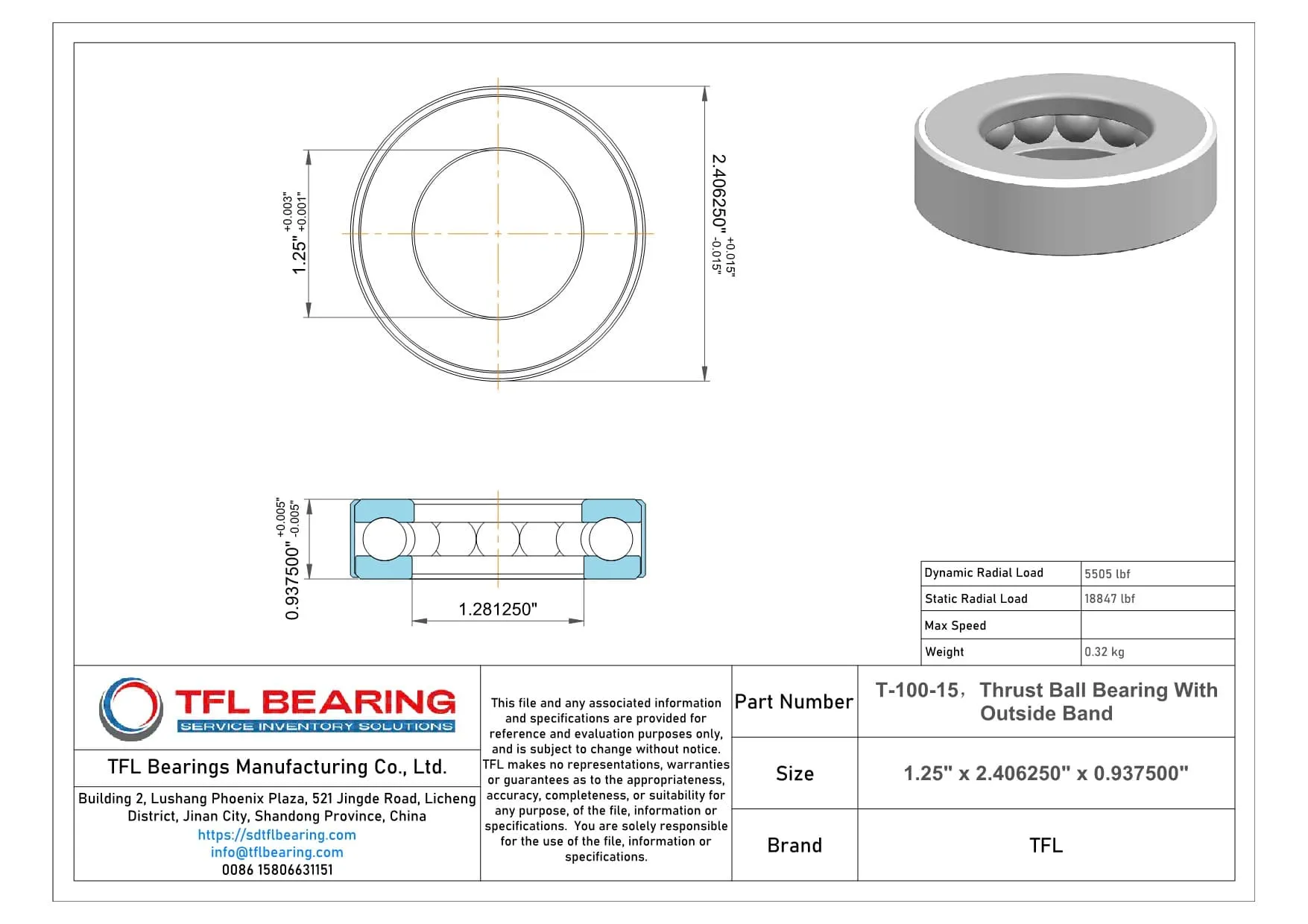

Thrust Ball Bearing With Outside Band T-100-15 dimension drawing
Download DWG Download PDF

Features

How Does T-100-15 Bearing Handle Heavy Loads?

T-100-15 Bearing is built with 52100 chrome steel rings and balls, offering strong resistance to high thrust loads.
Its static thrust load capacity reaches 18,847 lbf, making it suitable for heavy-duty applications.

The bearing’s precise dimensions, including a 1.25″ bore and 2.406250″ outer diameter, ensure a secure fit.
With a temperature range of -30° to 110°C, it performs reliably in various conditions.

T-100-15 Bearing requires lubrication, which helps maintain smooth operation and reduces wear.
Its 15 chrome steel balls provide balanced load distribution, enhancing durability.

Application

Industrial Uses of T-100-15 Bearing
T-100-15 Bearing is commonly used in heavy machinery, such as hydraulic pumps and gearboxes, where its thrust load capacity ensures reliable performance. The inch sizing makes it a good fit for equipment designed to imperial standards.

Where Is T-100-15 Bearing Used?
In automotive applications, T-100-15 Bearing can be found in transmissions and steering systems, handling axial loads with ease. Its chrome steel construction offers durability under constant stress.

Built for Heavy-Duty Use: T-100-15 Bearing
This bearing works well in industrial fans and compressors, where its high static thrust load rating provides stability. The open design allows for easy lubrication, extending its service life.

Automotive vs Aerospace: Applications of T-100-15 Bearing
While T-100-15 Bearing suits car transmissions, it also fits aerospace components like actuator systems, thanks to its precise tolerances. The temperature range ensures performance in varied environments.

Key Fields for T-100-15 Bearing
Medical devices like dental drills benefit from T-100-15 Bearing’s smooth operation and load handling. Its compact size is ideal for space-constrained applications.
