Thrust Ball Bearing With Outside Band D9

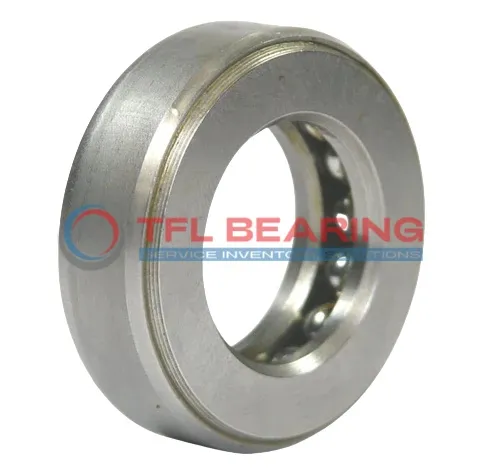

Thrust Ball Bearing With Outside Band D9

The D9 is a thrust ball bearing with a 1-inch bore and 1.969-inch outer diameter, crafted from durable 52100 chrome steel. It manages thrust loads up to 6700 lbf and operates smoothly at speeds up to 3800 RPM.

Its compact design, measuring just 0.625 inches in width, makes it suitable for tight spaces. The bearing requires regular lubrication to maintain optimal performance.

This model performs well in temperatures ranging from -30°C to 110°C, ensuring reliability in various conditions. It’s compliant with RoHS and REACH standards for safe use.

Weighing only 0.3 lbs, it’s lightweight yet sturdy. Ideal for applications like automotive systems or industrial equipment where thrust loads are common.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number D9
  • Brand TFL
  • Bore Dia 1"
  • Bore Dia Tolerance +0.001" to +0.003"
  • Inner Dia Housing Washer 1.031"
  • Outer Dia 1.969"
  • Outer Dia Tolerance -0.015" to +0.015"
  • Width 0.625"
  • Width Tolerance -0.005" to +0.005"
  • System of Measurement Inch
  • Bearing Type Ball
  • For Load Direction Thrust
  • Ring Material 52100 Chrome Steel
  • Ball Material 52100 Chrome Steel
  • Dynamic Thrust Load 6700 lbf
  • Static Thrust Load 13100 lbf
  • Lubrication Required
  • Temperature Range -30° to 110 °C
  • RoHS Compliant
  • REACH Compliant
  • Max Speed 3800 rpm
  • Weight 0.3 lbs

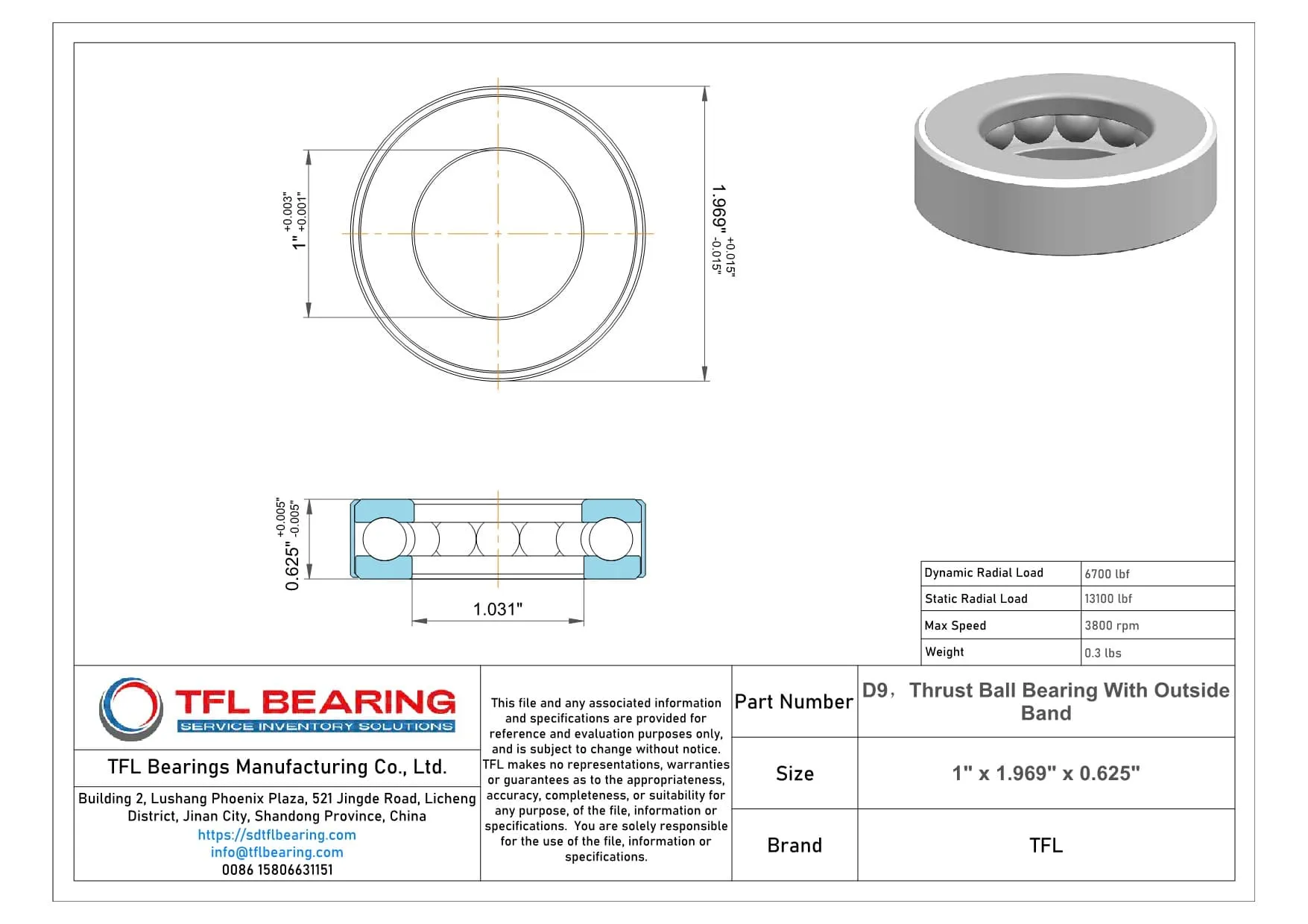

Thrust Ball Bearing With Outside Band D9 dimension drawing
Download DWG Download PDF

Features

How Does D9 Bearing Handle Heavy Loads?

D9 Bearing is crafted from 52100 chrome steel, offering robust resistance to high thrust loads.
Its dynamic thrust load capacity reaches 6700 lbf, making it suitable for demanding applications.

The precise tolerances in D9 Bearing ensure smooth operation and long-lasting performance.
With a maximum speed of 3,800 rpm, it balances durability and efficiency in various conditions.

D9 Bearing operates reliably within a temperature range of -30° to 110°C.
Its design simplifies maintenance while providing consistent performance under heavy loads.

Application

Key Fields for D9 Bearing
D9 Bearing is commonly used in industrial settings, such as conveyor systems and machine tools, where its inch sizing fits standard equipment. The chrome steel construction ensures durability under heavy thrust loads.

In automotive applications, D9 Bearing supports components like gearboxes and steering systems, providing reliable performance. Its tolerance range makes it suitable for precise assembly requirements.

For automation equipment, D9 Bearing works well in robotic arms and assembly lines, thanks to its balanced load capacity. The required lubrication helps maintain smooth operation over time.

In household appliances, D9 Bearing can be found in washing machines and fans, where its compact size and strength are beneficial. The temperature range allows it to perform in various environments.
