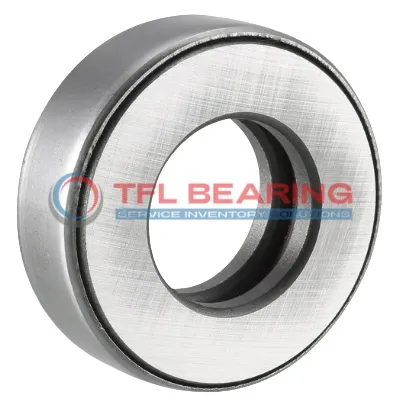

Thrust Ball Bearing With Outside Band T-100-3/8

Thrust Ball Bearing With Outside Band T-100-3/8

The T-100-3/8 is a compact thrust ball bearing measuring 0.375″ in bore diameter and 1.1875″ in outer diameter, with a width of 0.5″. Made from durable 52100 chrome steel, it offers reliable performance under thrust loads.

It handles dynamic thrust loads up to 1730 lbf and static loads up to 5131 lbf. The bearing performs well at various speeds, with reduced load capacity at higher RPMs, making it versatile for different applications.

With 12 chrome steel balls and an outside band design, it provides smooth operation. Regular lubrication is needed to maintain performance.

Suitable for use in temperatures from -30°C to 110°C, this bearing is ideal for machinery requiring precise thrust load management. Its small size (0.05kg) makes it easy to integrate into compact spaces. Compliant with RoHS and REACH standards.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number T-100-3/8
  • Brand TFL
  • Bore Dia 0.375000"
  • Bore Dia Tolerance +0.001" to +0.003"
  • Inner Dia Housing Washer 0.390625"
  • Outer Dia 1.187500"
  • Outer Dia Tolerance -0.015" to +0.015"
  • Width 0.5"
  • Width Tolerance -0.005" to +0.005"
  • Ball Dia 7/32"
  • Ball Qty 12
  • System of Measurement Inch
  • Bearing Type Ball
  • For Load Direction Thrust
  • Ring Material 52100 Chrome Steel
  • Ball Material 52100 Chrome Steel
  • Dynamic Thrust Load 1730 lbf
  • Dynamic Thrust Load(100 RPM) 1140 lbf
  • Dynamic Thrust Load(500 RPM) 700 lbf
  • Dynamic Thrust Load(1500 RPM) 505 lbf
  • Static Thrust Load 5131 lbf
  • Lubrication Required
  • Temperature Range -30° to 110 °C
  • RoHS Compliant
  • REACH Compliant
  • Weight 0.05 kg
Thrust Ball Bearing With Outside Band T-100-3/8 dimension drawing
Download DWG Download PDF

Features

How Does T-100-3/8 Bearing Handle Heavy Loads?

T-100-3/8 Bearing is crafted from 52100 chrome steel, offering robust resistance to high thrust loads.
Its static thrust load capacity reaches 5131 lbf, ensuring dependable performance in demanding conditions.

The bearing’s 12-ball design distributes loads evenly, reducing wear and enhancing longevity.
With a temperature range of -30° to 110°C, it performs reliably in various environments.

T-100-3/8 Bearing requires lubrication, ensuring smooth operation and extended service life.
Its precise dimensions and tolerances make it suitable for applications needing accurate alignment.

Application

Industrial Uses of T-100-3/8 Bearing
T-100-3/8 Bearing is commonly used in industrial settings, especially in machinery that handles axial loads, like presses and gear reducers. Its inch sizing makes it a good fit for equipment designed to imperial measurements.

What Makes T-100-3/8 Bearing a Preferred Choice?
In automotive applications, T-100-3/8 Bearing works well in clutch mechanisms and steering systems, where its thrust load capacity ensures reliable performance. The chrome steel construction adds to its longevity in demanding conditions.

Built for Heavy-Duty Use: T-100-3/8 Bearing
For automation systems, T-100-3/8 Bearing provides stable support in robotic arms and conveyor belts. Its compact design and precise tolerances make it suitable for space-constrained setups.

Medical vs Industrial: Where T-100-3/8 Bearing Excels
While not typically used in medical devices, T-100-3/8 Bearing shines in industrial tools like pumps and compressors. Its durability and load-handling capabilities make it a practical choice for heavy machinery.
