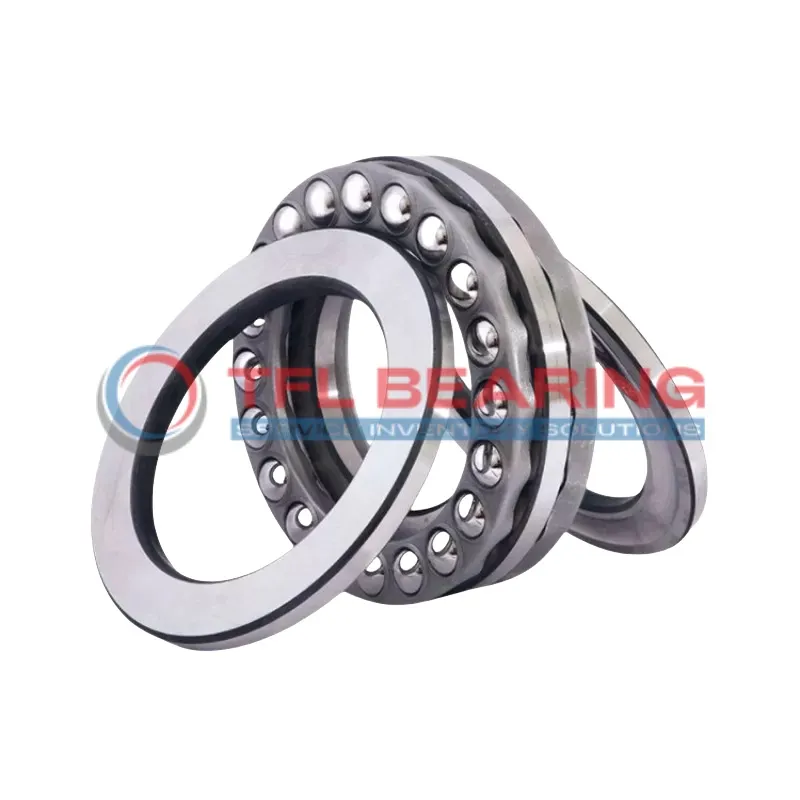

Thrust Ball Bearing With Outside Band D23

Thrust Ball Bearing With Outside Band D23

The D23 thrust ball bearing is a compact unit measuring 1.875″ in bore diameter and 3.219″ in outer diameter, with a width of just 0.813″. Made from durable 52100 chrome steel, it’s built to handle heavy thrust loads.

It supports dynamic loads up to 10800 lbf and static loads up to 27500 lbf, making it suitable for demanding applications. The bearing operates smoothly at speeds up to 2200 RPM and works in temperatures from -30°C to 110°C.

Regular lubrication is needed to maintain its performance, but its robust design ensures reliability. Ideal for use in industrial machinery or automotive systems where space is limited but strength is crucial.

Weighing only 0.94 lbs, it’s a lightweight yet sturdy option. Compliant with RoHS and REACH standards, it’s safe for various environments.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number D23
  • Brand TFL
  • Bore Dia 1.875"
  • Bore Dia Tolerance +0.001" to +0.003"
  • Inner Dia Housing Washer 1.906"
  • Outer Dia 3.219"
  • Outer Dia Tolerance -0.015" to +0.015"
  • Width 0.813"
  • Width Tolerance -0.005" to +0.005"
  • System of Measurement Inch
  • Bearing Type Ball
  • For Load Direction Thrust
  • Ring Material 52100 Chrome Steel
  • Ball Material 52100 Chrome Steel
  • Dynamic Thrust Load 10800 lbf
  • Static Thrust Load 27500 lbf
  • Lubrication Required
  • Temperature Range -30° to 110 °C
  • RoHS Compliant
  • REACH Compliant
  • Max Speed 2200 rpm
  • Weight 0.94 lbs
Thrust Ball Bearing With Outside Band D23 dimension drawing
Download DWG Download PDF

Features

How Is D23 Bearing Engineered for Reliability?

D23 Bearing is crafted from 52100 chrome steel, offering strong resistance to wear and high thrust loads.
Its dynamic thrust load capacity reaches 10,800 lbf, ensuring dependable performance in various applications.

The precise tolerances in D23 Bearing’s dimensions contribute to smooth operation and easy installation.
With a temperature range of -30° to 110°C, it remains reliable in diverse working conditions.

D23 Bearing’s design ensures durability while maintaining a maximum speed of 2,200 rpm.
Regular lubrication helps prolong its service life and maintain optimal performance.

Application

Industrial Uses of D23 Bearing
D23 Bearing is commonly used in heavy machinery like hydraulic pumps and gear reducers, where its inch sizing fits standard North American equipment. The chrome steel construction ensures it handles thrust loads reliably in demanding environments.

Where Is D23 Bearing Used?
You’ll often spot D23 Bearing in automotive applications, particularly in clutch assemblies and steering systems. Its precise tolerances and robust design make it a dependable choice for high-load scenarios.

Built for Heavy-Duty Use: D23 Bearing
This bearing shines in industrial fans and compressors, where its 27500 lbf static load capacity ensures long-term performance. The wide temperature range also makes it suitable for varied operating conditions.

Medical vs Industrial: Where D23 Bearing Excels
While D23 Bearing isn’t typically used in medical devices, it’s ideal for industrial presses and lifting equipment. Its balance of strength and precision makes it versatile for machinery requiring axial load support.

Perfect Fit for Automation: D23 Bearing
In automated conveyor systems, D23 Bearing provides smooth operation with minimal maintenance. The required lubrication is straightforward, ensuring consistent performance in continuous-use settings.
