Thin Section Ball Bearings SET2520 ZZ

Thin Section Ball Bearings SET2520 ZZ

The SET2520 ZZ is a slim, shielded ball bearing measuring 20mm by 25mm by 4mm, crafted entirely from stainless steel for durability. It handles radial loads up to 204 lbf and spins smoothly at speeds up to 7600 RPM.

Its shielded design keeps out dust while allowing easy lubrication, ideal for maintaining performance in tight spaces. The bearing operates in temperatures from -86°F to 230°F, suitable for various environments.

With ABEC-1 precision and C0 clearance, it offers reliable rotation for small machinery. Perfect for applications like medical devices or miniature motors where space is limited.

Weighing just 3.3 grams, it’s lightweight yet sturdy. Compliant with RoHS and REACH standards for safe use across industries.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number SET2520 ZZ
  • Brand TFL
  • Bore Dia 20 mm
  • Bore Dia Tolerance -0.01mm to 0
  • Outer Dia 25 mm
  • Outer Dia Tolerance -0.009mm to 0
  • Width 4 mm
  • Width Tolerance -0.120mm to 0
  • Radial Clearance 0.006mm to 0.020mm
  • System of Measurement Metric
  • Bearing Type Ball
  • For Load Direction Radial
  • Construction Single Row
  • Seal Type Shielded
  • Tolerance Class ABEC-1
  • Radial Clearance Trade No C0
  • Ring Material Stainless Steel
  • Ball Material Stainless Steel
  • Cage Material Stainless Steel
  • Dynamic Radial Load 204 lbf
  • Static Radial Load 140 lbf
  • Temperature Range -86 to 230 °F
  • Lubrication Required
  • RoHS Compliant
  • REACH Compliant
  • Max Speed 7600 rpm
  • Weight 3.3 g
  • Price（$） 1.8

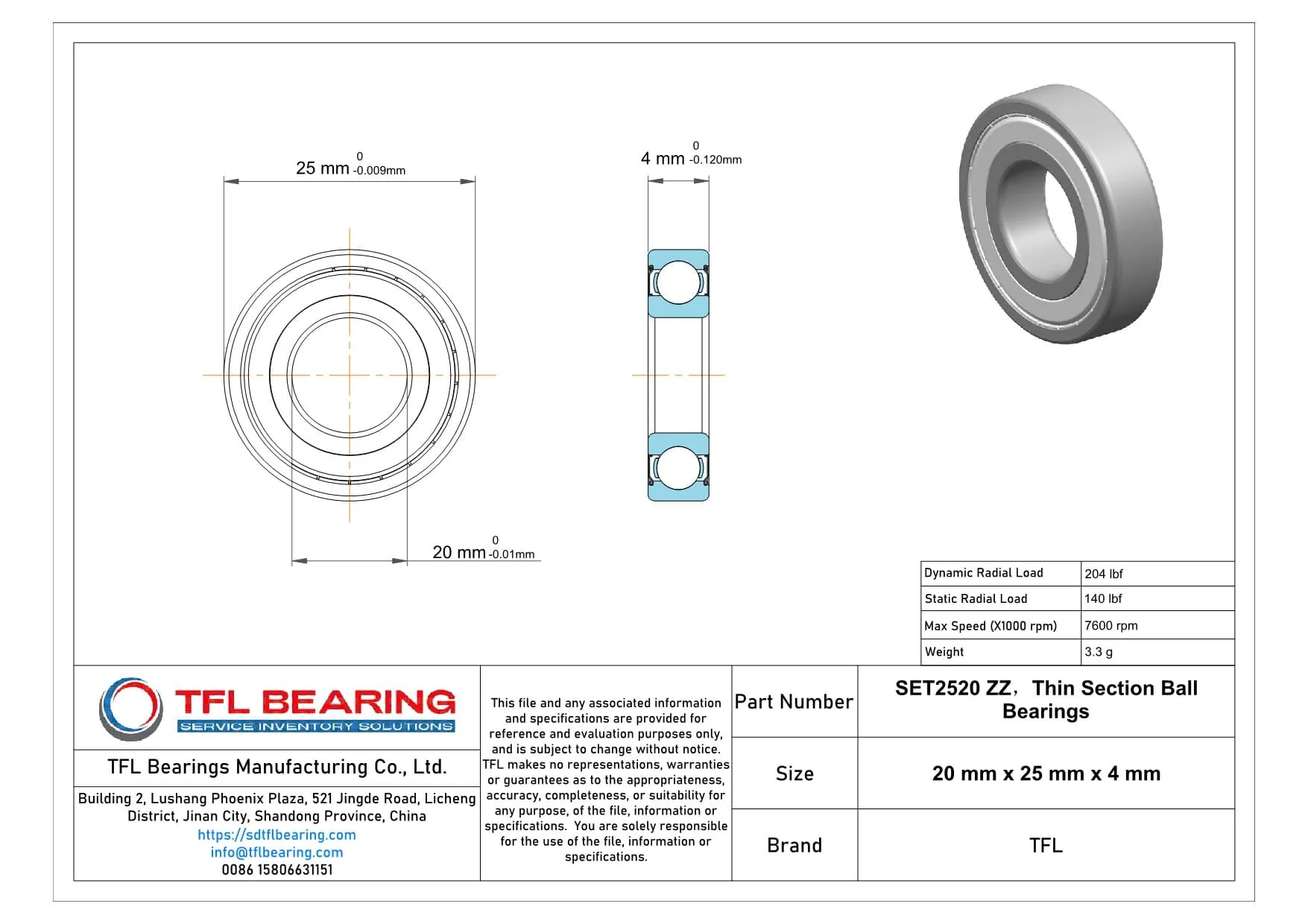

Thin Section Ball Bearings SET2520 ZZ dimension drawing
Download DWG Download PDF

Features

Performance Features of SET2520 ZZ Bearing

SET2520 ZZ Bearing features a compact design with dimensions of 20 mm×25 mm×4 mm, making it ideal for space-constrained applications.
Its stainless steel construction ensures resistance to corrosion, enhancing durability in various environments.

The shielded design of SET2520 ZZ Bearing protects against contaminants while maintaining smooth operation.
With a dynamic radial load capacity of 204 lbf, it handles moderate loads efficiently.

SET2520 ZZ Bearing operates within a temperature range of -86 to 230 °F, suitable for diverse conditions.
Its ABEC-1 tolerance class ensures reliable performance for precision tasks.

The stainless steel cage in SET2520 ZZ Bearing keeps the balls aligned, reducing friction and wear.
Requiring lubrication, it maintains optimal performance over extended periods.

Application

Common Applications of SET2520 ZZ Bearing
SET2520 ZZ Bearing is widely used in robotics, especially in compact robotic arms where space is limited but smooth rotation is essential. Its thin section design fits neatly into tight spaces without compromising performance.

In medical devices like portable diagnostic tools, SET2520 ZZ Bearing offers reliable motion control due to its stainless steel construction. The shielded design helps keep contaminants out, ensuring long-term functionality.

For consumer electronics such as high-end cameras, SET2520 ZZ Bearing provides precise movement for lens adjustment mechanisms. Its lightweight design and ABEC-1 tolerance make it a practical choice for delicate applications.

Automotive applications include small actuators and sensors, where SET2520 ZZ Bearing’s radial load capacity handles frequent movement with ease. The wide temperature range also suits various under-the-hood conditions.

In industrial automation, SET2520 ZZ Bearing supports conveyor belt guides and small rotating assemblies. The stainless steel materials resist corrosion, making it suitable for humid or washdown environments.
