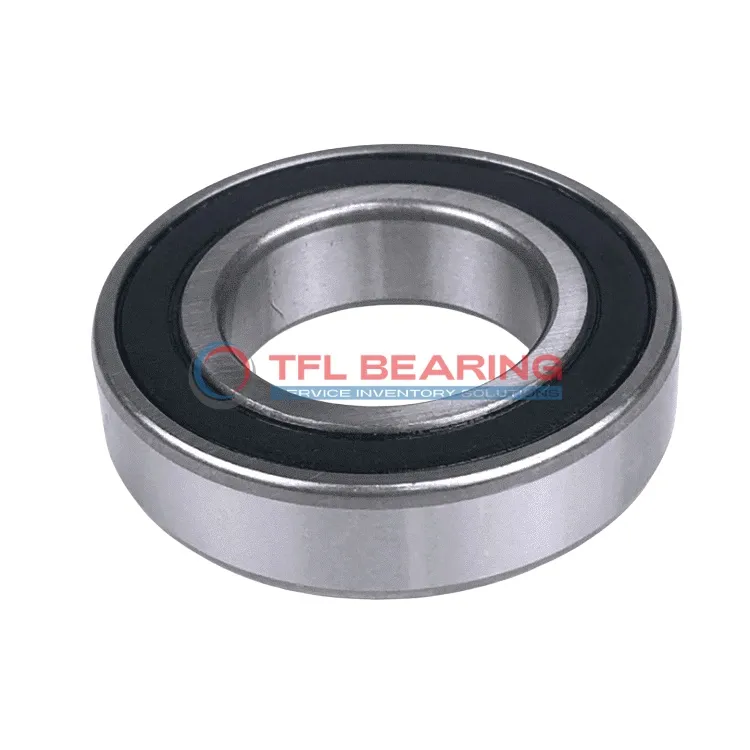

Single Row Deep Groove Ball Bearings 6004-2RSH

Single Row Deep Groove Ball Bearings 6004-2RSH

The 6004-2RSH is a compact single-row deep groove ball bearing, measuring 20mm by 42mm by 12mm, crafted from sturdy chrome steel. It’s designed for radial loads up to 2237 lbf and can handle speeds up to 11000 RPM.

Sealed on both sides, this bearing keeps grease in and dirt out, making it low-maintenance. The stainless steel cage adds durability, ensuring smooth operation even under stress.

With a temperature range of -30°C to 120°C, it’s versatile for various environments. Its P6 tolerance class offers precision for demanding applications.

Ideal for electric motors, pumps, or small machinery, this bearing is a reliable choice. It’s also interchangeable with SKF models, simplifying replacements. Weighing just 0.069kg, it’s lightweight yet robust.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 6004-2RSH
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Sealed
  • Tolerance Class P6
  • Radial Clearance Trade No CN
  • Bore Dia 20 mm
  • Bore Dia Tolerance -0.008mm to 0
  • Outer Dia 42 mm
  • Outer Dia Tolerance -0.009mm to 0
  • Width 12 mm
  • Width Tolerance -0.12mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Stainless Steel
  • Lubrication Grease
  • REACH Compliant
  • Temperature Range -30° to 120 °C
  • Dynamic Radial Load 2237 lbf
  • Static Radial Load 1124 lbf
  • Max Speed 11000 rpm
  • Weight 0.069 kg
  • price（$） 4.77
Single Row Deep Groove Ball Bearings 6004-2RSH dimension drawing
Download DWG Download PDF

Features

Why Choose 6004-2RSH Bearing for Precision Tasks?

6004-2RSH Bearing features sealed construction, protecting against dust and moisture for consistent performance.
Its chrome steel rings and balls provide reliable radial load support, with a dynamic capacity of 2237 lbf.

The stainless steel cage ensures smooth operation, even at high speeds up to 11,000 rpm.
With a temperature range of -30° to 120°C, it performs well in various environments.

6004-2RSH Bearing’s P6 tolerance class offers precision, making it suitable for demanding applications.
Grease lubrication reduces maintenance needs while ensuring long-lasting performance.

Application

Common Applications of 6004-2RSH Bearing
6004-2RSH Bearing is widely used in industrial equipment like conveyor belts and small electric motors, where its sealed design keeps out dust and debris. The chrome steel construction ensures it handles radial loads smoothly in demanding environments.

In automotive applications, 6004-2RSH Bearing fits well in components like alternators and water pumps, providing reliable performance under constant motion. Its P6 tolerance class makes it a precise choice for vehicle systems.

For home appliances, 6004-2RSH Bearing works quietly in devices like washing machines and fans, thanks to its grease lubrication and sealed protection. The compact size is ideal for space-conscious designs.

Automation systems benefit from 6004-2RSH Bearing in robotic arms and small machinery, where its stainless steel cage reduces wear over time. The temperature range also suits various operating conditions.
