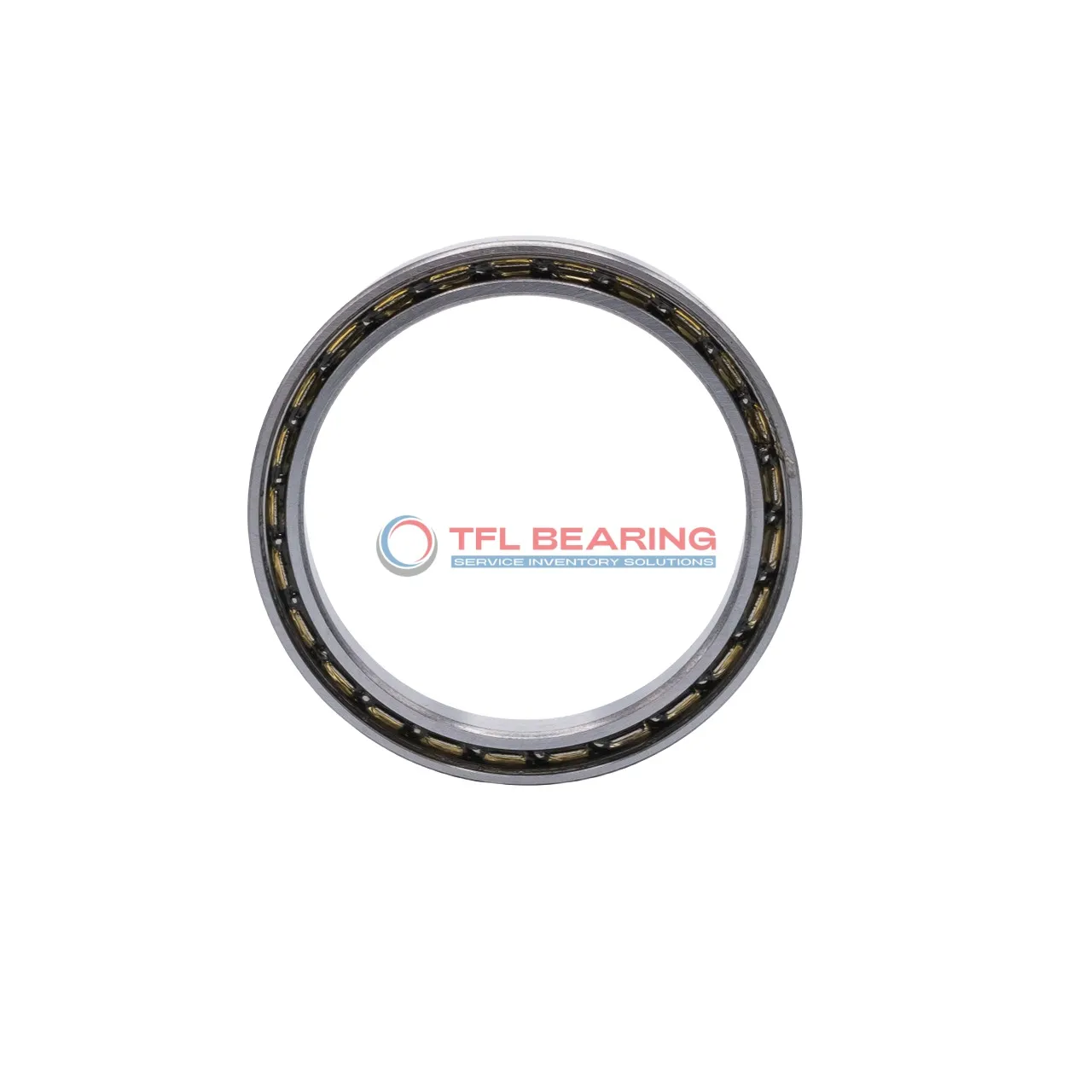

Thin Section Ball Bearings S6907

Thin Section Ball Bearings S6907

The S6907 is a slim, single-row ball bearing measuring 35mm by 55mm by 10mm, crafted entirely from stainless steel for durability. It handles radial loads up to 2205 lbf and spins smoothly at speeds reaching 10,800 RPM.

Its open design allows for easy lubrication, while the ABEC-1 tolerance ensures reliable performance. The bearing operates in temperatures from -86°F to 230°F, making it versatile for various conditions.

With a lightweight build at just 87g, it’s ideal for applications where space and weight matter, such as robotics or precision instruments. Compliant with RoHS and REACH standards, it’s a safe and practical choice for many industrial uses.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number S6907
  • Brand TFL
  • Bore Dia 35 mm
  • Bore Dia Tolerance -0.012mm to 0
  • Outer Dia 55 mm
  • Outer Dia Tolerance -0.013mm to 0
  • Width 10 mm
  • Width Tolerance -0.120mm to 0
  • Radial Clearance 0.006mm to 0.020mm
  • System of Measurement Metric
  • Bearing Type Ball
  • For Load Direction Radial
  • Construction Single Row
  • Seal Type Open
  • Tolerance Class ABEC-1
  • Radial Clearance Trade No C0
  • Ring Material Stainless Steel
  • Ball Material Stainless Steel
  • Cage Material Stainless Steel
  • Dynamic Radial Load 2205 lbf
  • Static Radial Load 1568 lbf
  • Temperature Range -86 to 230 °F
  • Lubrication Required
  • RoHS Compliant
  • REACH Compliant
  • Max Speed 10800 rpm
  • Weight 87 g
  • Price（$） 2.8
Thin Section Ball Bearings S6907 dimension drawing
Download DWG Download PDF

Features

Performance Features of S6907 Bearing

S6907 Bearing is constructed with stainless steel rings and balls, offering reliable radial load support.
Its dynamic radial load capacity of 2205 lbf ensures stable performance in various applications.
The open design allows for easy lubrication, maintaining smooth operation over time.

With a maximum speed of 10,800 rpm, S6907 Bearing balances efficiency and durability.
The ABEC-1 tolerance class ensures consistent precision for smooth rotation.
Its compact size of 35 mm×55 mm×10 mm makes it ideal for space-constrained installations.

S6907 Bearing operates in temperatures from -86 to 230 °F, suitable for diverse environments.
The stainless steel cage keeps the balls aligned, reducing wear and extending service life.
Its lightweight design at 87 g minimises additional load on the system.

Application

Where Is S6907 Bearing Used?
S6907 Bearing is commonly used in automation systems, particularly in robotic arms where its slim profile and radial load capacity are beneficial. The stainless steel construction ensures durability in repetitive motion applications.

In medical imaging devices, S6907 Bearing provides smooth rotation for precise positioning. Its open design allows for easy lubrication, maintaining performance in critical healthcare environments.

For consumer electronics like printers, S6907 Bearing’s compact size and reliable operation help reduce noise and vibration. The ABEC-1 tolerance ensures consistent performance for everyday use.

In industrial machinery, S6907 Bearing supports radial loads in conveyor systems and packaging equipment. Its wide temperature range makes it suitable for various operating conditions.
