Single Row Angular Contact Ball Bearings (General) 7222 BECCM

Single Row Angular Contact Ball Bearings (General) 7222 BECCM

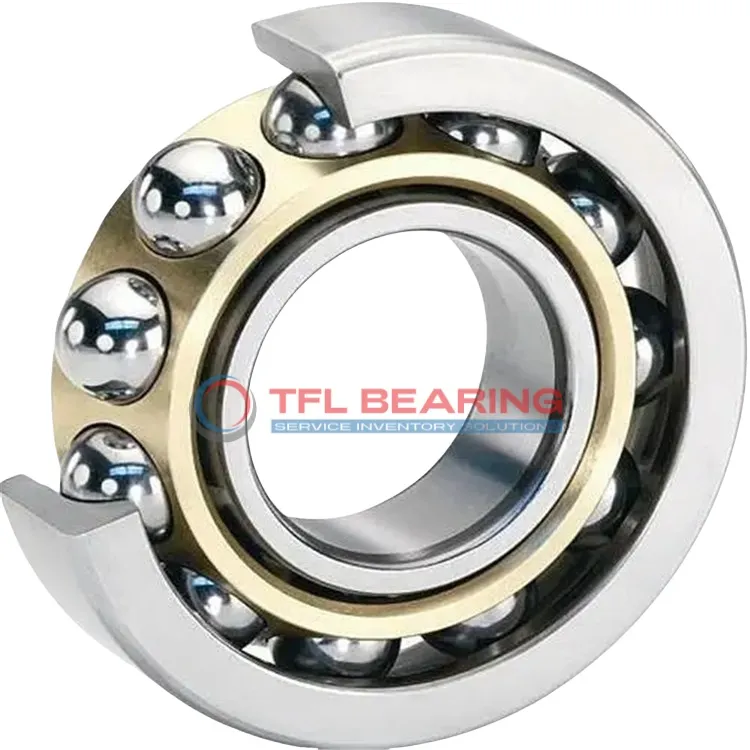

The 7222 BECCM is a single-row angular contact ball bearing with a 110mm bore and 200mm outer diameter, measuring 38mm in width. Made from chrome steel with a brass cage, it’s built to handle both radial and angular loads efficiently.

With a 40° contact angle, it supports dynamic radial loads up to 36675 lbf and operates smoothly at speeds up to 5000 RPM. Its open design allows for easy lubrication and maintenance.

The bearing’s P6 tolerance class ensures reliable precision, suitable for applications requiring consistent performance. It works well in temperatures ranging from -30°C to 110°C.

Ideal for machinery like pumps or gearboxes where angular contact loads are common. Weighing 4.6kg, it’s robust yet manageable for its size. Compliant with RoHS and REACH standards for safe use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 7222 BECCM
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • Bearing Type Ball
  • Contact Angle 40°
  • For Load Direction Angular Contact
  • Construction Single Row
  • Seal Type Open
  • Bore Dia 110 mm
  • Bore Dia Tolerance -0.015mm to 0
  • Outer Dia 200 mm
  • Outer Dia Tolerance -0.02mm to 0
  • Width 38 mm
  • Width Tolerance -0.05mm to 0
  • External Diameter On Inner Ring (Large Side Face) 144.85 mm
  • External Diameter On Inner Ring (Small Side Face) 127.12 mm
  • Internal Diameter On Outer Ring 167.35 mm
  • Chamfer Dimension 2.1 mm
  • Distance Pressure Point (a) 84 mm
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Brass
  • Dynamic Radial Load 36675 lbf
  • Static Radial Load 35100 lbf
  • Lubrication Lubricated
  • Temperature Range -30° to 110 °C
  • Tolerance Class P6 (ABEC-3)
  • ROHS Compliant
  • REACH Compliant
  • Max Speed 5000 rpm
  • Weight 4.6 kg
  • Price（$） 146.66
Single Row Angular Contact Ball Bearings (General) 7222 BECCM dimension drawing
Download DWG Download PDF

Features

Performance Features of 7222 BECCM Bearing

7222 BECCM Bearing features a 40° contact angle, optimising load distribution for angular contact applications.
Its chrome steel rings and balls provide strong resistance to radial loads, with a dynamic capacity of 36675 lbf.

The brass cage ensures smooth operation, reducing friction and wear during high-speed rotation.
With a maximum speed of 5,000 rpm, it balances performance and durability in demanding conditions.

7222 BECCM Bearing operates efficiently within a temperature range of -30° to 110°C.
Its P6 tolerance class (ABEC-3) guarantees precision and reliability for industrial applications.

Application

Where Is 7222 BECCM Bearing Used?
7222 BECCM Bearing is commonly used in industrial machinery, especially where high radial and axial loads are present, such as in gearboxes and pumps. Its 40° contact angle makes it suitable for handling combined loads efficiently.

In automotive applications, 7222 BECCM Bearing can be found in wheel hubs and transmissions, providing reliable performance under demanding conditions. The brass cage enhances durability and reduces friction, ensuring smoother operation.

For automation systems, 7222 BECCM Bearing supports robotic arms and precision equipment, where its P6 tolerance class ensures accurate movement. The open design allows for easy lubrication, extending service life in continuous-use scenarios.
