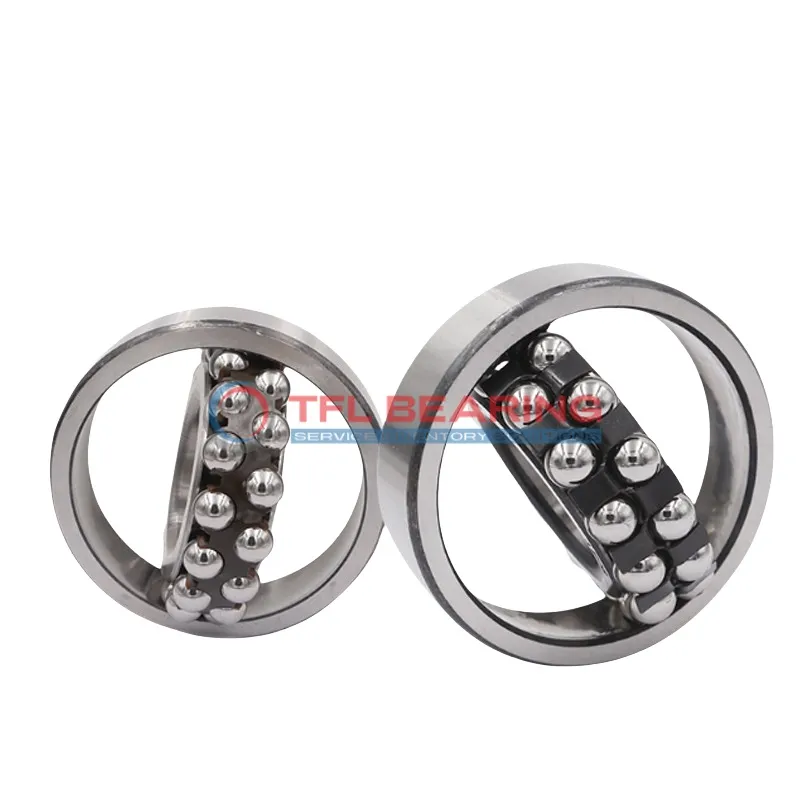

Self Aligning Ball Bearings 1313 EKTN9/C3

Self Aligning Ball Bearings 1313 EKTN9/C3

The 1313 EKTN9/C3 is a self-aligning ball bearing with a 65mm tapered bore and 140mm outer diameter, built from sturdy chrome steel. It handles radial loads up to 14625 lbf and runs smoothly at speeds up to 6000 RPM.

Its double-row design and open construction allow for easy lubrication and alignment adjustments, while the nylon cage reduces friction. The bearing operates reliably in temperatures from -30°C to 110°C.

With a C3 radial clearance, it accommodates slight misalignments, making it suitable for applications like conveyor systems or agricultural machinery. Weighing 2.35kg, it offers a balance of strength and manageable size.

This model is interchangeable with SKF bearings and complies with RoHS and REACH standards for safe, versatile use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 1313 EKTN9/C3
  • Brand TFL & OEM
  • Interchangeable SKF
  • Bore Dia 65 mm
  • Bore Dia Tolerance -0.015mm to 0
  • Outer Dia 140 mm
  • Outer Dia Tolerance -0.018mm to 0
  • Width 33 mm
  • Width Tolerance -0.15mm to 0
  • External Diameter On Inner Ring 99 mm
  • Internal Diameter On Outer Ring 125.2 mm
  • Chamfer Dimension 2 mm
  • System of Measurement Metric
  • Bearing Type Ball
  • Bore Type Taper 1:12
  • For Load Direction Radial
  • Construction Double Row
  • Seal Type Open
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Nylon
  • Dynamic Radial Load 14625 lbf
  • Static Radial Load 5738 lbf
  • Lubrication Lubricated
  • Temperature Range -30° to 110 °C
  • Radial Clearance C3
  • RoHS Compliant
  • REACH Compliant
  • Max Speed 6000 rpm
  • Weight 2.35 kg
  • Price（$） 121.13
Self Aligning Ball Bearings 1313 EKTN9/C3 dimension drawing
Download DWG Download PDF

Features

Performance Features of 1313 EKTN9/C3 Bearing

1313 EKTN9/C3 Bearing features a double-row design with chrome steel rings and balls, optimised for radial load handling.
Its dynamic radial load capacity of 14625 lbf ensures dependable performance in various applications.

The nylon cage maintains ball alignment, reducing friction and enhancing durability.
With a maximum speed of 6,000 rpm, it balances efficiency and longevity.

1313 EKTN9/C3 Bearing operates smoothly in temperatures ranging from -30° to 110°C.
Its C3 radial clearance allows for flexibility in different operating conditions.

Application

Industrial Uses of 1313 EKTN9/C3 Bearing
1313 EKTN9/C3 Bearing is commonly used in heavy machinery like conveyors and mixers, where its self-aligning feature compensates for shaft misalignment. The double-row design ensures stability under radial loads, making it suitable for demanding industrial environments.

In automotive applications, 1313 EKTN9/C3 Bearing fits well in gearboxes and wheel hubs, thanks to its tapered bore for secure mounting. The chrome steel construction provides durability, even under continuous use.

For automation systems, 1313 EKTN9/C3 Bearing works efficiently in robotic arms and assembly lines. Its nylon cage reduces friction, ensuring smooth movement in high-precision tasks.

In household appliances like washing machines, 1313 EKTN9/C3 Bearing offers reliable performance. The open design allows for easy lubrication, extending its lifespan in everyday use.
