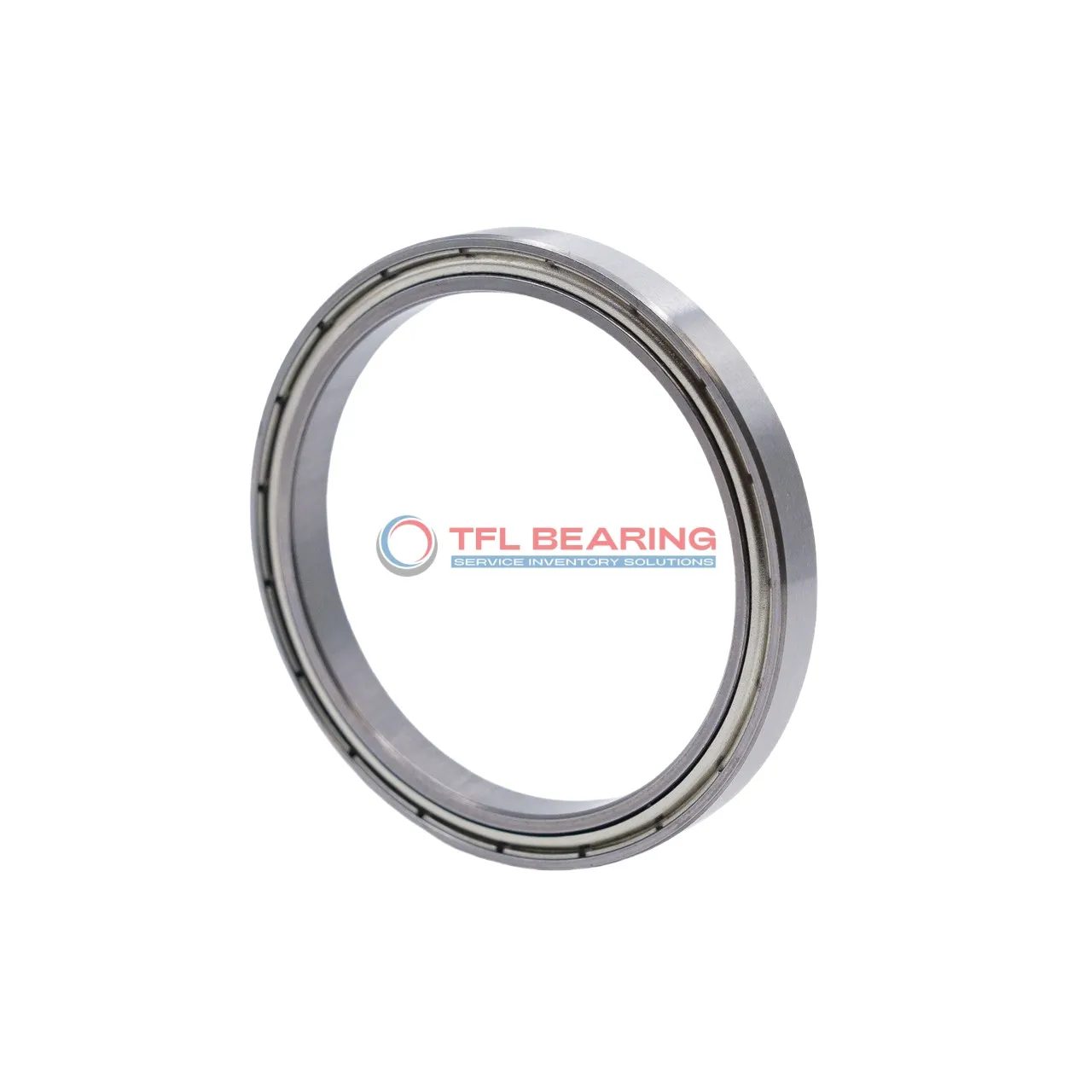

Thin Section Ball Bearings SET2216 ZZ

Brand: TFL Bearing 16 mm × 22 mm × 4 mm Metric Shielded
Part number: SET2216 ZZ
Thin Section Ball Bearings SET2216 ZZ
In Stock
US$2.00 / piece
Reference price · volume pricing on request
Get a Quote WhatsApp
  • ISO 9001 quality system
  • RoHS & REACH compliant
  • Pre-shipment inspection
  • Lead time confirmed with your quote
Dimensions
Bore Dia16 mm
Bore Dia Tolerance-0.008mm to 0
Outer Dia22 mm
Outer Dia Tolerance-0.009mm to 0
Width4 mm
Width Tolerance-0.120mm to 0
Performance
Dynamic Radial Load196 lbf
Static Radial Load125 lbf
Temperature Range-86 to 230 °F
Max Speed9,000 rpm
Characteristics
Radial Clearance0.003mm to 0.018mm
System of MeasurementMetric
Bearing TypeBall
For Load DirectionRadial
ConstructionSingle Row
Seal TypeShielded
Tolerance ClassABEC-1
Radial Clearance Trade NoC0
LubricationRequired
Weight3.7 g
Material
Ring MaterialStainless Steel
Ball MaterialStainless Steel
Cage MaterialStainless Steel
Compliance
RoHSCompliant
REACHCompliant
Dimension drawing · click to enlarge

Description

The SET2216 ZZ is a slim, shielded ball bearing measuring 16mm by 22mm by 4mm, crafted entirely from stainless steel for durability. It handles radial loads up to 196 lbf and spins smoothly at speeds up to 9000 RPM.

Its shielded design keeps out dust while allowing easy lubrication, and the ABEC-1 tolerance ensures reliable performance. The bearing operates in temperatures from -86°F to 230°F, making it versatile for various conditions.

Weighing just 3.7 grams, it’s ideal for compact applications like small motors or precision instruments. Compliant with RoHS and REACH standards, it’s a safe choice for environmentally conscious users.

With a radial clearance of 0.003mm to 0.018mm, it offers smooth rotation for light to moderate loads. Perfect for projects where space is limited but performance can’t be compromised.

Features

How Does SET2216 ZZ Bearing Ensure Smooth Operation?

SET2216 ZZ Bearing features stainless steel construction, offering resistance to corrosion and wear.
Its shielded design protects against dust and debris, maintaining smooth performance.

The thin section design of SET2216 ZZ Bearing allows for compact installations without sacrificing durability.
With a dynamic radial load capacity of 196 lbf, it handles moderate loads efficiently.

SET2216 ZZ Bearing operates at speeds up to 9,000 rpm, making it suitable for high-speed applications.
Its ABEC-1 tolerance ensures reliable precision in various mechanical systems.

Application

Ideal for Precision: SET2216 ZZ Bearing
SET2216 ZZ Bearing works well in compact spaces, like small robotics arms, where its thin design and shielded construction keep dust out. The stainless steel build ensures it handles light loads smoothly.

How Does SET2216 ZZ Bearing Improve Performance?
In medical devices such as dental tools, SET2216 ZZ Bearing offers quiet operation and reliable rotation. Its ABEC-1 tolerance provides enough precision for most standard applications.

Automotive vs Aerospace: Applications of SET2216 ZZ Bearing
SET2216 ZZ Bearing fits nicely in car dashboard mechanisms, where space is tight but performance matters. For drones, its lightweight and corrosion resistance make it a good fit for motor assemblies.

Built for Heavy-Duty Use: SET2216 ZZ Bearing
Though small, SET2216 ZZ Bearing handles radial loads well in conveyor belt guides or packaging machines. The C0 clearance ensures smooth movement without excessive play.

What Makes SET2216 ZZ Bearing a Preferred Choice?
In office printers, SET2216 ZZ Bearing’s low friction helps paper feed mechanisms run quietly. The stainless steel materials also resist wear from frequent use.
