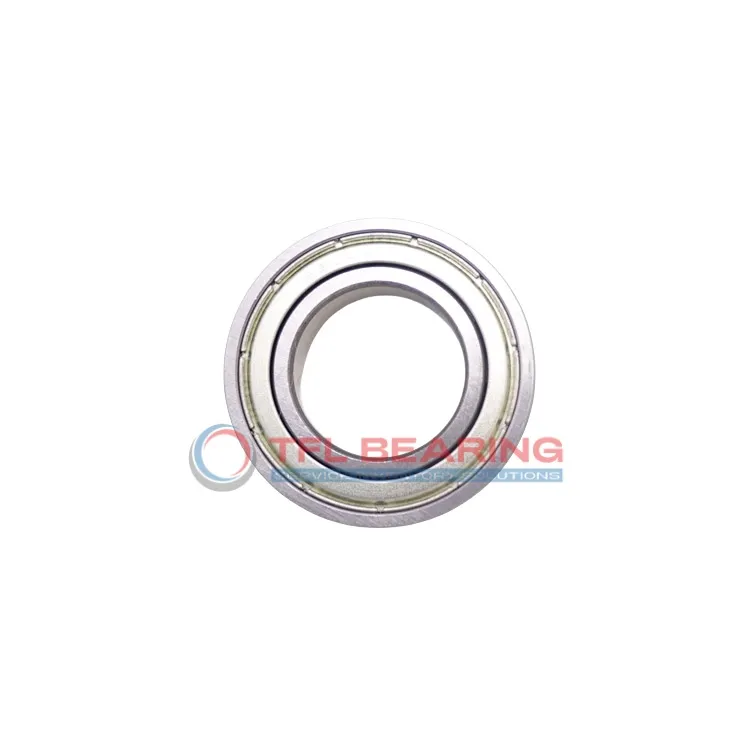

Thin Section Ball Bearings S6918zz

Thin Section Ball Bearings S6918zz

The S6918zz is a thin-section ball bearing with a 90mm bore and 125mm outer diameter, crafted entirely from stainless steel for durability. Its compact 18mm width makes it ideal for space-sensitive applications while handling radial loads up to 6636 lbf.

Shielded on both sides, this bearing keeps contaminants out while maintaining smooth operation at speeds up to 4600 RPM. The stainless steel cage ensures consistent performance, even in temperatures ranging from -86°F to 230°F.

With ABEC-1 precision and C0 radial clearance, it offers reliable rotation for moderate-speed applications. Regular lubrication is recommended to maintain its efficiency.

This model suits equipment like medical devices or robotics where slim profiles and corrosion resistance are key. Compliant with RoHS and REACH standards, it weighs 565g for easy handling.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number S6918zz
  • Brand TFL
  • Bore Dia 90 mm
  • Bore Dia Tolerance -0.02mm to 0
  • Outer Dia 125 mm
  • Outer Dia Tolerance -0.018mm to 0
  • Width 18 mm
  • Width Tolerance -0.200mm to 0
  • Radial Clearance 0.012mm to 0.036mm
  • System of Measurement Metric
  • Bearing Type Ball
  • For Load Direction Radial
  • Construction Single Row
  • Seal Type Shielded
  • Tolerance Class ABEC-1
  • Radial Clearance Trade No C0
  • Ring Material Stainless Steel
  • Ball Material Stainless Steel
  • Cage Material Stainless Steel
  • Dynamic Radial Load 6636 lbf
  • Static Radial Load 6394 lbf
  • Temperature Range -86 to 230 °F
  • Lubrication Required
  • RoHS Compliant
  • REACH Compliant
  • Max Speed 4600 rpm
  • Weight 565 g
  • Price（$） 4
Thin Section Ball Bearings S6918zz dimension drawing
Download DWG Download PDF

Features

How Is S6918zz Bearing Engineered for Reliability?

S6918zz Bearing features stainless steel rings and balls, offering excellent resistance to corrosion and wear.
Its shielded design helps keep contaminants out while maintaining smooth operation.

With a dynamic radial load capacity of 6636 lbf, S6918zz Bearing handles demanding radial loads effectively.
The ABEC-1 tolerance ensures consistent performance in precision applications.

S6918zz Bearing operates efficiently within a temperature range of -86 to 230 °F.
Its compact width of 18 mm makes it suitable for space-constrained installations.

The stainless steel cage enhances durability, reducing long-term maintenance needs.
Lubrication ensures smooth rotation, even at speeds up to 4,600 rpm.

Application

Industrial Uses of S6918zz Bearing
S6918zz Bearing is commonly used in industrial machinery where space constraints are a concern, thanks to its thin-section design. The shielded seals help keep contaminants out, making it suitable for dusty environments like packaging lines.

In robotics, S6918zz Bearing provides smooth rotation for joints and pivots due to its stainless steel construction. Its ABEC-1 tolerance ensures reliable performance in automated assembly systems.

For medical imaging devices, S6918zz Bearing offers quiet operation and corrosion resistance, essential for sensitive equipment. The wide temperature range also makes it adaptable to various clinical settings.

In consumer electronics, S6918zz Bearing is often found in high-end turntables and precision instruments. The lightweight design and consistent performance make it a practical choice for these applications.
