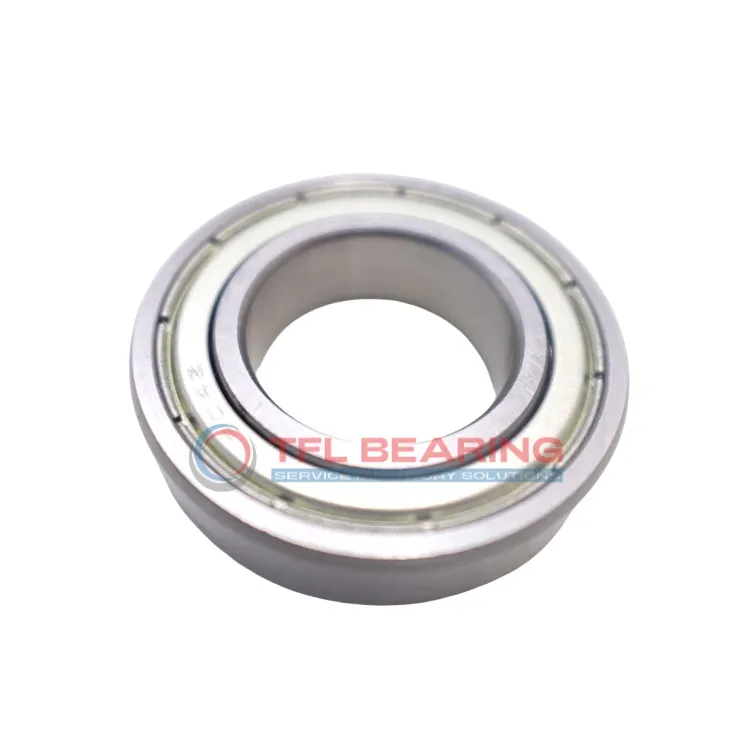

Thin Section Ball Bearings S6907zz

Brand: TFL Bearing 35 mm × 55 mm × 10 mm Metric Shielded
Part number: S6907zz
Thin Section Ball Bearings S6907zz
In Stock
US$2.80 / piece
Reference price · volume pricing on request
Get a Quote WhatsApp
  • ISO 9001 quality system
  • RoHS & REACH compliant
  • Pre-shipment inspection
  • Lead time confirmed with your quote
Dimensions
Bore Dia35 mm
Bore Dia Tolerance-0.012mm to 0
Outer Dia55 mm
Outer Dia Tolerance-0.013mm to 0
Width10 mm
Width Tolerance-0.120mm to 0
Performance
Dynamic Radial Load2,205 lbf
Static Radial Load1,568 lbf
Temperature Range-86 to 230 °F
Max Speed10,800 rpm
Characteristics
Radial Clearance0.006mm to 0.020mm
System of MeasurementMetric
Bearing TypeBall
For Load DirectionRadial
ConstructionSingle Row
Seal TypeShielded
Tolerance ClassABEC-1
Radial Clearance Trade NoC0
LubricationRequired
Weight87 g
Material
Ring MaterialStainless Steel
Ball MaterialStainless Steel
Cage MaterialStainless Steel
Compliance
RoHSCompliant
REACHCompliant
Dimension drawing · click to enlarge

Description

The S6907zz is a slim, shielded ball bearing measuring 35mm by 55mm by 10mm, crafted entirely from stainless steel for durability. It handles radial loads up to 2205 lbf and spins smoothly at speeds reaching 10,800 RPM.

Its shielded design keeps out dust while maintaining easy access for lubrication. The bearing operates reliably in temperatures from -86°F to 230°F, making it versatile for various environments.

With ABEC-1 precision and C0 clearance, it offers consistent performance without being overly sensitive to alignment. Ideal for applications like small motors or precision instruments where space is limited.

Weighing just 87 grams, it’s lightweight yet sturdy. Compliant with RoHS and REACH standards for safe use in most industrial settings.

Features

Performance Features of S6907zz Bearing

S6907zz Bearing is designed with stainless steel rings and balls, offering excellent resistance to corrosion.
Its thin section construction makes it ideal for applications where space is limited.

The shielded design helps keep contaminants out while maintaining smooth operation.
With a dynamic radial load capacity of 2205 lbf, it handles demanding radial loads effectively.

S6907zz Bearing operates efficiently at speeds up to 10,800 rpm.
Its temperature range of -86 to 230 °F ensures reliable performance in various conditions.

Application

Key Fields for S6907zz Bearing
S6907zz Bearing is commonly used in industrial automation, particularly in robotic arms and precision machinery where its thin section design saves space without compromising performance. The shielded seals help keep contaminants out, ensuring longer service life.

Where Is S6907zz Bearing Used?
In automotive applications, S6907zz Bearing fits well in electric motors and steering systems, thanks to its stainless steel construction and resistance to corrosion. Its ABEC-1 tolerance ensures reliable performance under radial loads.

Built for Versatility: S6907zz Bearing
For medical devices like surgical tools, S6907zz Bearing offers smooth operation and durability, crucial for high-precision tasks. The wide temperature range makes it suitable for various clinical environments.

Light-Duty vs Heavy-Duty: Best Uses for S6907zz Bearing
In consumer electronics such as printers and small appliances, S6907zz Bearing provides quiet and efficient operation. Its lightweight design is ideal for compact devices requiring reliable motion control.
