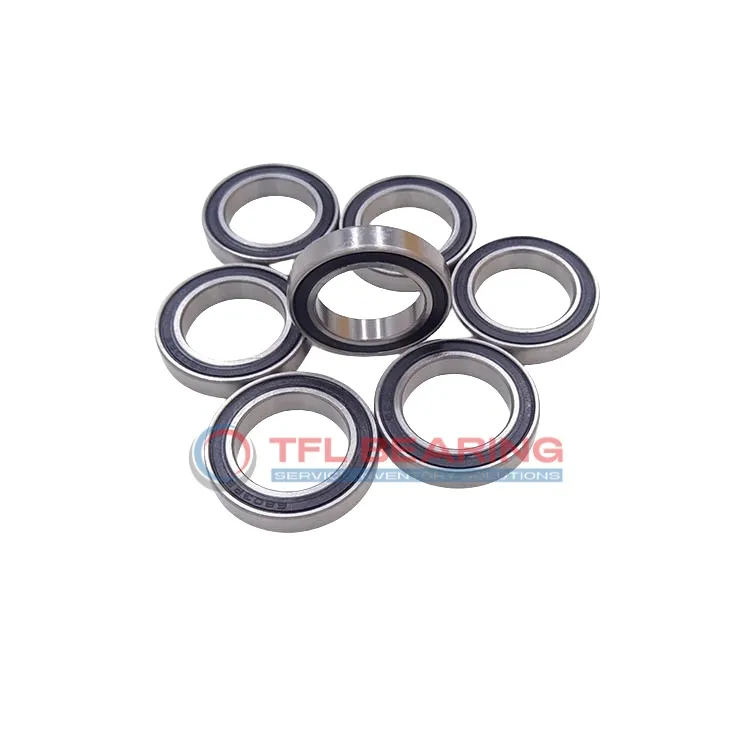

Thin Section Ball Bearings S6908 2rs

Thin Section Ball Bearings S6908 2rs

The S6908 2RS is a slim, sealed ball bearing measuring 40mm by 62mm by 12mm, crafted entirely from stainless steel for durability. It handles radial loads up to 2772 lbf and spins smoothly at speeds up to 9900 RPM.

Its sealed design keeps out dust and moisture, making it low-maintenance, while the stainless steel construction resists corrosion. The bearing operates in temperatures from -86°F to 230°F, suitable for varied environments.

With a C0 radial clearance, it offers reliable performance for precision applications. Ideal for use in medical equipment, robotics, or small machinery where space is limited.

Weighing just 131g, it’s lightweight yet robust. Compliant with RoHS and REACH standards, it’s a safe choice for industrial and commercial use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number S6908 2rs
  • Brand TFL
  • Bore Dia 40 mm
  • Bore Dia Tolerance -0.012mm to 0
  • Outer Dia 62 mm
  • Outer Dia Tolerance -0.013mm to 0
  • Width 12 mm
  • Width Tolerance -0.120mm to 0
  • Radial Clearance 0.006mm to 0.020mm
  • System of Measurement Metric
  • Bearing Type Ball
  • For Load Direction Radial
  • Construction Single Row
  • Seal Type Sealed
  • Tolerance Class ABEC-1
  • Radial Clearance Trade No C0
  • Ring Material Stainless Steel
  • Ball Material Stainless Steel
  • Cage Material Stainless Steel
  • Dynamic Radial Load 2772 lbf
  • Static Radial Load 2007 lbf
  • Temperature Range -86 to 230 °F
  • Lubrication Required
  • RoHS Compliant
  • REACH Compliant
  • Max Speed 9900 rpm
  • Weight 131 g
  • Price（$） 3.5
Thin Section Ball Bearings S6908 2rs dimension drawing
Download DWG Download PDF

Features

How Is S6908 2rs Bearing Engineered for Reliability?

S6908 2rs Bearing features stainless steel rings and balls, ensuring durability and resistance to wear.
Its sealed design protects against contaminants, making it suitable for various environments.

With a dynamic radial load capacity of 2772 lbf, S6908 2rs Bearing handles demanding radial loads efficiently.
The ABEC-1 tolerance class ensures consistent performance in precision applications.

S6908 2rs Bearing operates smoothly at speeds up to 9,900 rpm, balancing speed and reliability.
Its temperature range of -86 to 230 °F allows for use in diverse conditions.

The stainless steel cage maintains ball alignment, reducing friction and extending service life.
S6908 2rs Bearing’s compact design (40 mm×62 mm×12 mm) fits well in space-constrained applications.

Application

Key Fields for S6908 2rs Bearing
S6908 2rs Bearing is widely used in industrial automation, particularly in robotic arms and precision machinery, where its thin section design saves space without compromising performance. The sealed construction keeps contaminants out, ensuring long-lasting operation.

What Makes S6908 2rs Bearing a Preferred Choice?
In automotive applications, S6908 2rs Bearing fits well in electric motors and steering systems, thanks to its stainless steel build and reliable radial load capacity. Its ABEC-1 tolerance ensures smooth rotation even under demanding conditions.

Perfect Fit for Automation: S6908 2rs Bearing
For medical devices like surgical tools, S6908 2rs Bearing offers quiet and precise movement, crucial for sensitive procedures. The wide temperature range makes it suitable for sterilisation processes without losing efficiency.

Light-Duty vs Heavy-Duty: Best Uses for S6908 2rs Bearing
In consumer electronics, S6908 2rs Bearing works efficiently in printers and small appliances, where its compact size and sealed design reduce maintenance needs. The stainless steel materials also resist corrosion in humid environments.
