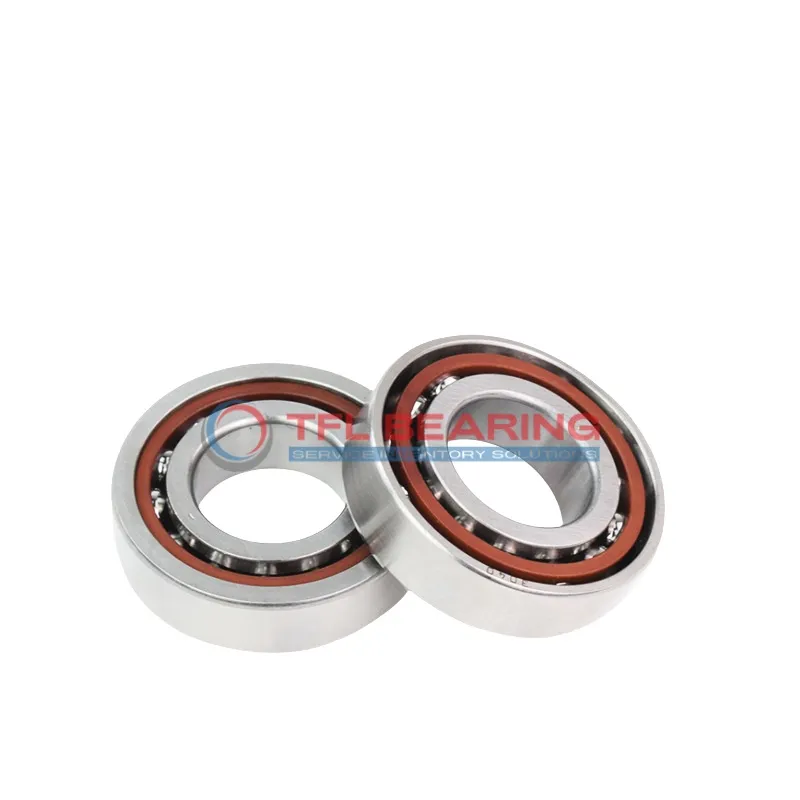

Single Row Angular Contact Ball Bearings (General) 7210 BEGBP

Brand: TFL Bearing Interchangeable: SKF 7210 BEGBP 50 mm × 90 mm × 20 mm Metric Open
Part number: 7210 BEGBP
Single Row Angular Contact Ball Bearings (General) 7210 BEGBP
In Stock
US$34.60 / piece
Reference price · volume pricing on request
Get a Quote WhatsApp
  • ISO 9001 quality system
  • RoHS & REACH compliant
  • Pre-shipment inspection
  • Lead time confirmed with your quote
Dimensions
Bore Dia50 mm
Bore Dia Tolerance-0.01mm to 0
Outer Dia90 mm
Outer Dia Tolerance-0.013mm to 0
Width20 mm
Width Tolerance-0.05mm to 0
External Diameter On Inner Ring (Large Side Face)65.75 mm
External Diameter On Inner Ring (Small Side Face)57.68 mm
Internal Diameter On Outer Ring75.15 mm
Chamfer Dimension1.1 mm
Performance
Dynamic Radial Load9,000 lbf
Static Radial Load6,975 lbf
Temperature Range-30° to 110 °C
Max Speed9,000 rpm
Characteristics
System of MeasurementMetric
Bearing TypeBall
Contact Angle40°
For Load DirectionAngular Contact
ConstructionSingle Row
Seal TypeOpen
Distance Pressure Point (a)39 mm
LubricationLubricated
Tolerance ClassP6 (ABEC-3)
Weight0.47 kg
Material
Ring MaterialChrome Steel
Ball MaterialChrome Steel
Cage MaterialNylon
Compliance
ROHSCompliant
REACHCompliant
Dimension drawing · click to enlarge

Description

The 7210 BEGBP is a single-row angular contact ball bearing with a 50mm bore and 90mm outer diameter, crafted from sturdy chrome steel. It manages radial loads up to 9000 lbf and operates smoothly at speeds up to 9000 RPM.

With a 40° contact angle, it efficiently handles combined radial and axial loads. The open design and nylon cage ensure low friction and easy maintenance, suitable for various industrial uses.

This bearing fits well in applications like pumps or gearboxes where precise alignment is needed. It works in temperatures from -30°C to 110°C and meets P6 tolerance standards.

Weighing 0.47kg, it’s a reliable choice for replacements, compatible with SKF models. Compliant with RoHS and REACH, it’s safe for most environments.

Features

Why Choose 7210 BEGBP Bearing for Precision Tasks?

7210 BEGBP Bearing features a 40° contact angle, ideal for handling combined radial and axial loads with precision.
Its chrome steel construction ensures durability and smooth operation under high-speed conditions.

The nylon cage in 7210 BEGBP Bearing reduces friction and noise, making it suitable for quiet applications.
With a maximum speed of 9,000 rpm, it delivers reliable performance in demanding environments.

7210 BEGBP Bearing’s P6 tolerance class guarantees consistent accuracy for precision tasks.
Its open design allows for easy lubrication, ensuring long service life with minimal maintenance.

Application

Industrial Uses of 7210 BEGBP Bearing
The 7210 BEGBP Bearing is commonly used in machine tools, where its 40° contact angle efficiently handles combined radial and axial loads. Its open design and nylon cage make it suitable for high-speed operations in industrial settings.

In automotive applications, 7210 BEGBP Bearing works well in wheel hubs and transmissions, thanks to its durable chrome steel construction. The metric sizing ensures compatibility with a variety of vehicle designs.

For automation systems, 7210 BEGBP Bearing provides reliable performance in robotic arms and conveyor belts. Its P6 tolerance class ensures precision in repetitive movements.

Where Is 7210 BEGBP Bearing Used?
You’ll often find 7210 BEGBP Bearing in electric motors, where its high-speed capability and angular contact design are ideal. The lubricated construction helps maintain smooth operation over time.

In household appliances like washing machines, 7210 BEGBP Bearing offers quiet and efficient performance. Its nylon cage reduces friction, making it a practical choice for daily use.

Built for Heavy-Duty Use: 7210 BEGBP Bearing
The 7210 BEGBP Bearing is designed for demanding environments like construction equipment, where its static radial load capacity of 6975 lbf comes in handy. Its chrome steel rings ensure long-lasting durability.

In agricultural machinery, 7210 BEGBP Bearing handles rough conditions with ease. The wide temperature range makes it adaptable to various working environments.

Automotive vs Aerospace: Applications of 7210 BEGBP Bearing
In automotive systems, 7210 BEGBP Bearing supports gearboxes and drivetrains, balancing speed and load requirements. Its metric dimensions fit standard automotive designs.

For aerospace applications, 7210 BEGBP Bearing’s precision and high-speed performance make it suitable for auxiliary systems. The P6 tolerance ensures reliability in critical operations.
