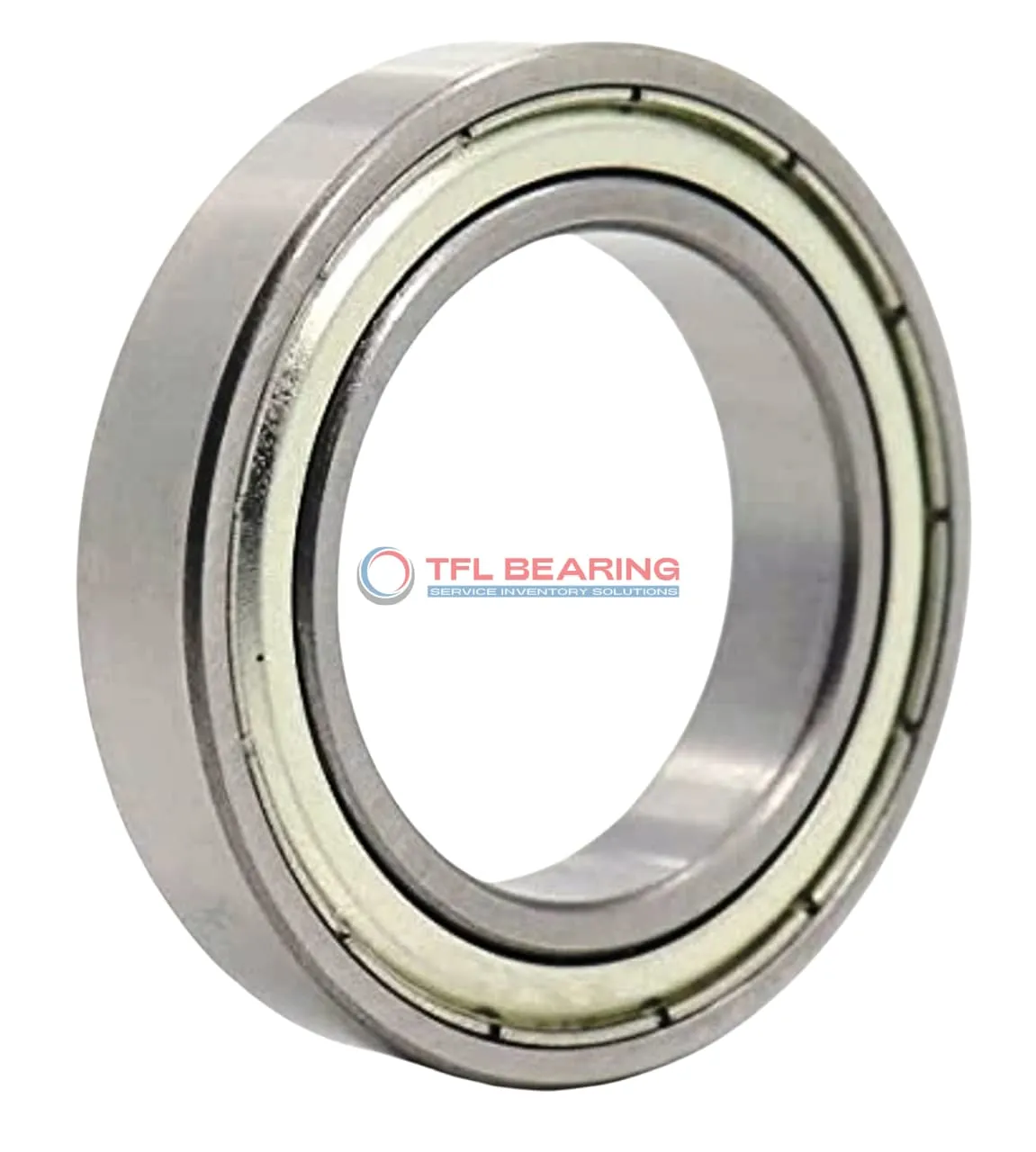

Thin Section Ball Bearings S6817zz

Thin Section Ball Bearings S6817zz

The S6817zz is a thin-section ball bearing with an 85mm bore and 110mm outer diameter, crafted entirely from stainless steel for durability. Its compact 13mm width makes it ideal for space-sensitive applications while handling radial loads up to 3784 lbf.

The shielded design keeps contaminants out, extending its lifespan, and it spins smoothly at speeds up to 5000 RPM. With a temperature range of -86°F to 230°F, it performs well in varied environments.

This bearing requires lubrication for optimal performance and comes with ABEC-1 tolerance for reliable precision. Suitable for machinery where slim profiles and corrosion resistance are key, like medical equipment or food processing units.

Weighing 266g, it’s lightweight yet sturdy, and complies with RoHS and REACH standards for safe use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number S6817zz
  • Brand TFL
  • Bore Dia 85 mm
  • Bore Dia Tolerance -0.02mm to 0
  • Outer Dia 110 mm
  • Outer Dia Tolerance -0.015mm to 0
  • Width 13 mm
  • Width Tolerance -0.200mm to 0
  • Radial Clearance 0.012mm to 0.036mm
  • System of Measurement Metric
  • Bearing Type Ball
  • For Load Direction Radial
  • Construction Single Row
  • Seal Type Shielded
  • Tolerance Class ABEC-1
  • Radial Clearance Trade No C0
  • Ring Material Stainless Steel
  • Ball Material Stainless Steel
  • Cage Material Stainless Steel
  • Dynamic Radial Load 3784 lbf
  • Static Radial Load 3844 lbf
  • Temperature Range -86 to 230 °F
  • Lubrication Required
  • RoHS Compliant
  • REACH Compliant
  • Max Speed 5000 rpm
  • Weight 266 g
  • Price（$） 2.8
Thin Section Ball Bearings S6817zz dimension drawing
Download DWG Download PDF

Features

How Does S6817zz Bearing Resist Wear?

S6817zz Bearing features stainless steel rings and balls, offering excellent resistance to wear and corrosion.
Its shielded design helps keep contaminants out, ensuring smoother operation over time.

The ABEC-1 tolerance class ensures consistent performance, even under radial loads up to 3784 lbf.
With a temperature range of -86 to 230°F, it remains reliable in varying conditions.

S6817zz Bearing’s compact 13 mm width makes it suitable for space-constrained applications.
The stainless steel cage maintains ball alignment, reducing friction and prolonging service life.

Application

Practical Applications of S6817zz Bearing
S6817zz Bearing is commonly used in industrial equipment like conveyor systems and packaging machines, where its thin section design saves space without compromising load capacity. The shielded seals help keep contaminants out, extending service life in dusty environments.

In robotics, S6817zz Bearing provides smooth motion for robotic arms and joints, thanks to its stainless steel construction and consistent radial clearance. Its lightweight design also reduces energy consumption in automated systems.

For medical devices such as diagnostic scanners, S6817zz Bearing offers reliable performance with minimal maintenance. The ABEC-1 tolerance ensures precise movement, which is essential for accurate imaging results.

Around the home, S6817zz Bearing can be found in appliances like washing machines, where its durability handles constant rotation. The stainless steel materials resist rust, making it suitable for damp conditions.
