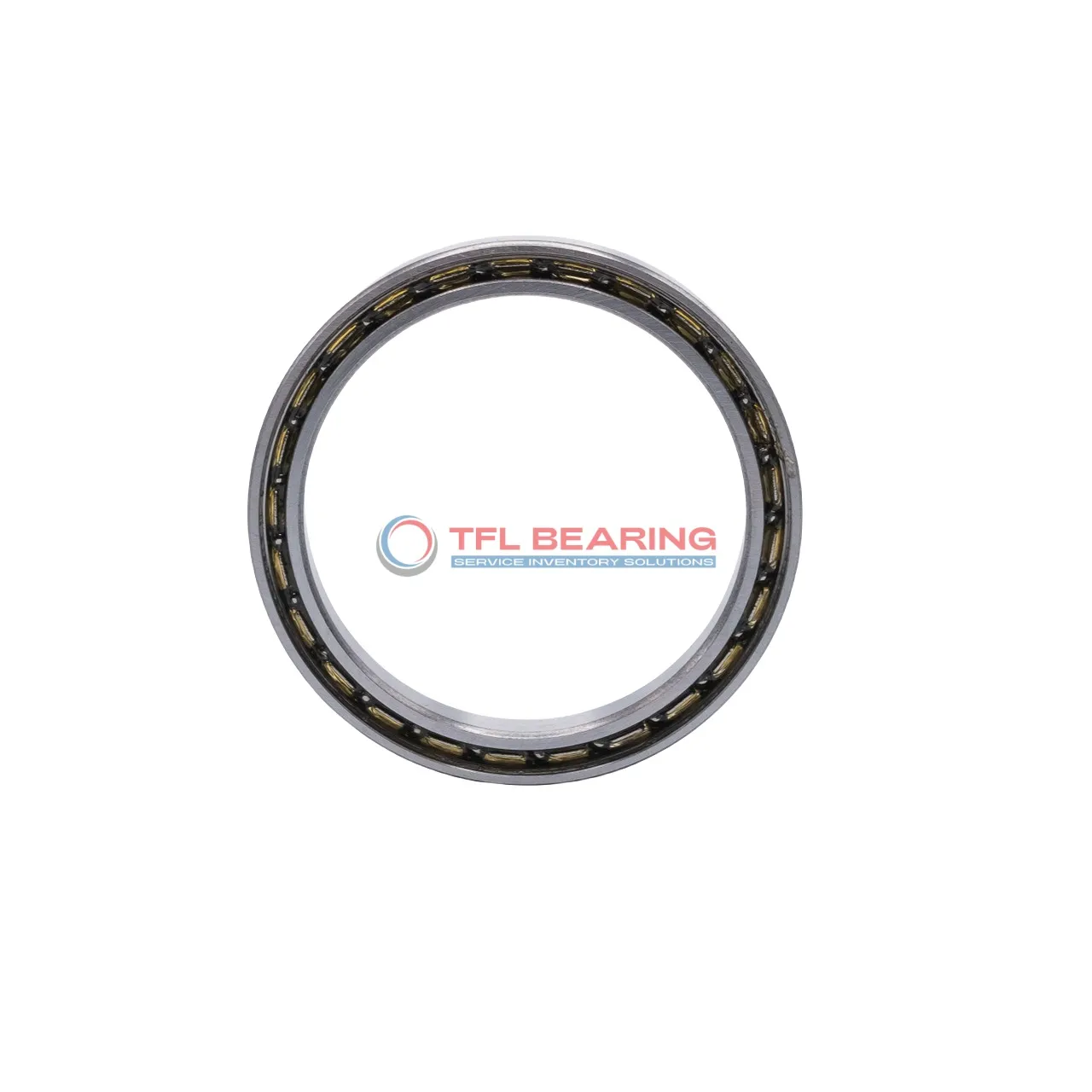

Thin Section Ball Bearings 6913

The 6913 is a thin-section ball bearing with a compact 65mm bore and 90mm outer diameter, crafted from sturdy chrome steel. Its slim 13mm width makes it ideal for space-constrained applications while handling radial loads up to 3892 lbf.

With an open design and ABEC-1 tolerance, it offers smooth rotation at speeds up to 8300 RPM. The stainless steel cage ensures durability, and it operates reliably between -30°C and 110°C.

This bearing requires regular lubrication for optimal performance. Its lightweight 211g design suits precision equipment like robotics or medical devices where low friction is key. Compliant with RoHS and REACH standards, it’s a practical choice for engineers and maintenance teams.

Get A Free Quote

Description

Features

Application

Q&A

Product Parameters

Part Number 6913
Brand TFL
Bore Dia 65 mm
Bore Dia Tolerance -0.015mm to 0
Outer Dia 90 mm
Outer Dia Tolerance -0.015mm to 0
Width 13 mm
Width Tolerance -0.150mm to 0
Radial Clearance 0.008mm to 0.028mm
System of Measurement Metric
Bearing Type Ball
For Load Direction Radial
Construction Single Row
Seal Type Open
Tolerance Class ABEC-1
Radial Clearance Trade No C0
Ring Material Chrome Steel
Ball Material Chrome Steel
Cage Material Stainless Steel
Dynamic Radial Load 3892 lbf
Static Radial Load 3600 lbf
Temperature Range -30°C to 110 °C
Lubrication Required
RoHS Compliant
REACH Compliant
Max Speed 8300 rpm
Weight 211 g
Price（$） 3

Thin Section Ball Bearings 6913 dimension drawing

Download DWG Download PDF

Features

How Does 6913 Bearing Reduce Friction?

6913 Bearing features chrome steel rings and balls, designed to minimise friction during radial load operations.
Its single-row construction ensures smooth rotation, enhancing efficiency in various applications.
The stainless steel cage maintains ball alignment, reducing wear and prolonging service life.
With a maximum speed of 8,300 rpm, it delivers reliable performance while keeping energy consumption low.

Built for Reliability: 6913 Bearing

6913 Bearing is crafted with high-quality chrome steel, offering strong resistance to radial loads up to 3892 lbf.
Its ABEC-1 tolerance class ensures consistent performance in precision applications.
The open design allows for easy lubrication, maintaining optimal operation over time.
Operating between -30°C to 110°C, it adapts well to varying environmental conditions.

Technical Highlights of 6913 Bearing

6913 Bearing’s thin section design saves space without compromising on load capacity.
The C0 radial clearance range of 0.008mm to 0.028mm ensures smooth operation under radial loads.
Its stainless steel cage enhances durability, making it suitable for long-term use.
Weighing just 211 g, it combines lightweight construction with robust performance.

Application

Industrial Uses of 6913 Bearing
6913 Bearing is commonly used in machine tools, where its thin section design saves space without compromising load capacity. The open seal allows for easy lubrication, keeping operations smooth in demanding environments.

Where Is 6913 Bearing Used?
You’ll often find 6913 Bearing in conveyor systems, where its radial load handling keeps things moving efficiently. Its chrome steel construction ensures durability even with continuous use.

Perfect Fit for Automation: 6913 Bearing
In robotic arms, 6913 Bearing provides precise movement thanks to its ABEC-1 tolerance. The stainless steel cage adds extra reliability for high-precision tasks.

Automotive vs Aerospace: Applications of 6913 Bearing
6913 Bearing works well in car steering systems, offering smooth rotation under radial loads. In aerospace, its lightweight design is ideal for auxiliary equipment where every gram counts.

Essential Roles of 6913 Bearing
For medical imaging devices, 6913 Bearing’s consistent performance ensures accurate results. The wide temperature range makes it suitable for various clinical environments.
