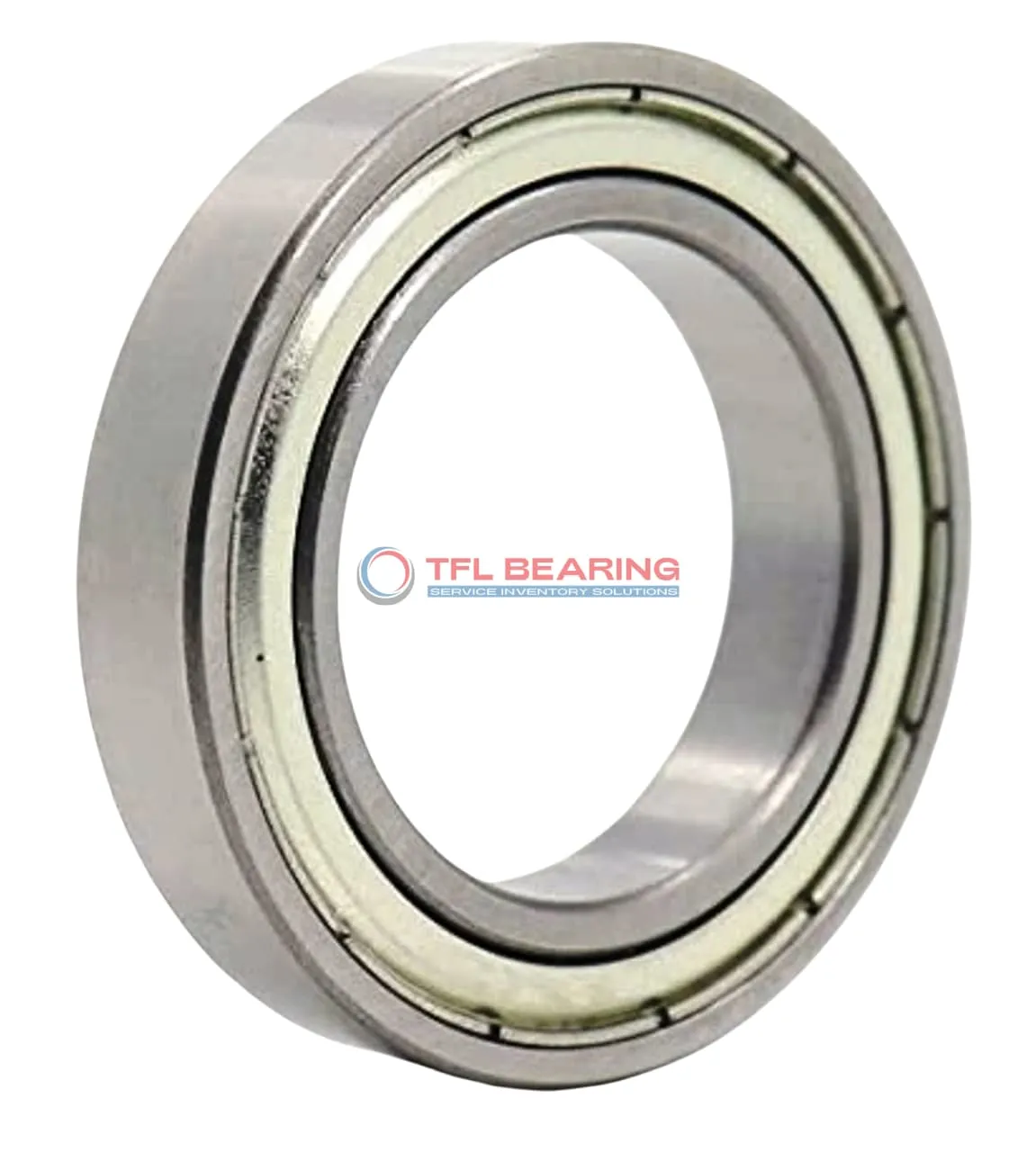

Thin Section Ball Bearings S6815zz

Thin Section Ball Bearings S6815zz

The S6815zz is a slim, shielded ball bearing measuring 75mm by 95mm by 10mm, crafted entirely from stainless steel for durability. It handles radial loads up to 2489 lbf and spins smoothly at speeds reaching 6840 RPM.

Its shielded design keeps out dust while maintaining easy access for lubrication. The bearing operates reliably in temperatures from -86°F to 230°F, making it versatile for various environments.

With ABEC-1 precision and C0 clearance, it offers consistent performance without being overly sensitive to alignment. The lightweight 142g design suits space-constrained applications.

Ideal for machinery where slim profiles are needed, such as robotics or medical equipment. Compliant with RoHS and REACH standards for safe use across industries.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number S6815zz
  • Brand TFL
  • Bore Dia 75 mm
  • Bore Dia Tolerance -0.015mm to 0
  • Outer Dia 95 mm
  • Outer Dia Tolerance -0.015mm to 0
  • Width 10 mm
  • Width Tolerance -0.150mm to 0
  • Radial Clearance 0.01mm to 0.03mm
  • System of Measurement Metric
  • Bearing Type Ball
  • For Load Direction Radial
  • Construction Single Row
  • Seal Type Shielded
  • Tolerance Class ABEC-1
  • Radial Clearance Trade No C0
  • Ring Material Stainless Steel
  • Ball Material Stainless Steel
  • Cage Material Stainless Steel
  • Dynamic Radial Load 2489 lbf
  • Static Radial Load 2590 lbf
  • Temperature Range -86 to 230 °F
  • Lubrication Required
  • RoHS Compliant
  • REACH Compliant
  • Max Speed 6840 rpm
  • Weight 142 g
  • Price（$） 2.9
Thin Section Ball Bearings S6815zz dimension drawing
Download DWG Download PDF

Features

How Does S6815zz Bearing Reduce Friction?

S6815zz Bearing features stainless steel rings and balls, ensuring smooth operation with minimal friction.
Its shielded design helps keep contaminants out, maintaining consistent performance over time.

The ABEC-1 tolerance class ensures reliable precision in radial applications.
With a dynamic radial load capacity of 2489 lbf, it handles demanding tasks efficiently.

S6815zz Bearing operates in temperatures from -86 to 230°F, suitable for varied environments.
Its compact 10 mm width makes it ideal for space-constrained installations.

Application

Industrial Uses of S6815zz Bearing
S6815zz Bearing works well in industrial settings, especially in machinery where space is limited but radial load support is needed. Its thin section design fits neatly into compact equipment like packaging machines.

The shielded seals help keep contaminants out, making S6815zz Bearing suitable for dusty environments. Stainless steel construction also adds resistance to corrosion, extending its lifespan in harsh conditions.

In automation systems, S6815zz Bearing supports smooth rotation in robotic arms and conveyor belts. Its ABEC-1 tolerance ensures reliable performance without requiring high precision adjustments.

For medical devices, S6815zz Bearing’s quiet operation and cleanliness make it a good fit for diagnostic equipment. The wide temperature range allows it to function in various clinical environments.
