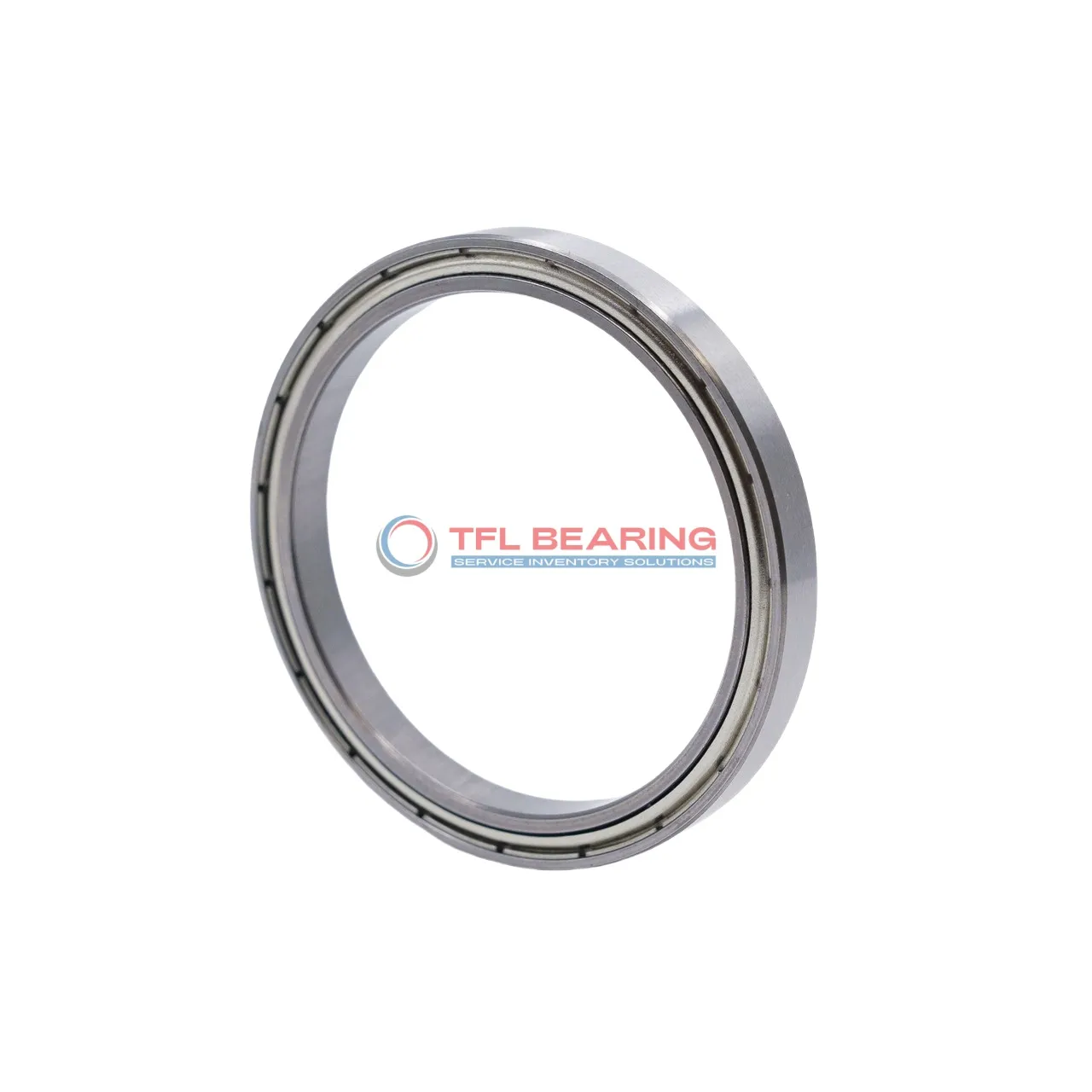

Thin Section Ball Bearings S6810zz

Thin Section Ball Bearings S6810zz

The S6810zz is a slim, shielded ball bearing measuring 50mm by 65mm by 7mm, crafted entirely from stainless steel for corrosion resistance. It handles radial loads up to 1248 lbf and spins smoothly at speeds nearing 10,000 RPM.

Its compact, single-row design with shields keeps dust out while maintaining low friction. The bearing operates in temperatures from -86°F to 230°F, requiring regular lubrication for optimal performance.

With ABEC-1 precision and C0 clearance, it offers reliable rotation for light to moderate loads. Ideal for applications like small motors or precision instruments where space is limited.

Weighing just 52 grams, it’s a lightweight solution that meets RoHS and REACH standards. The shielded design simplifies maintenance in dusty environments.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number S6810zz
  • Brand TFL
  • Bore Dia 50 mm
  • Bore Dia Tolerance -0.012mm to 0
  • Outer Dia 65 mm
  • Outer Dia Tolerance -0.013mm to 0
  • Width 7 mm
  • Width Tolerance -0.120mm to 0
  • Radial Clearance 0.006mm to 0.023mm
  • System of Measurement Metric
  • Bearing Type Ball
  • For Load Direction Radial
  • Construction Single Row
  • Seal Type Shielded
  • Tolerance Class ABEC-1
  • Radial Clearance Trade No C0
  • Ring Material Stainless Steel
  • Ball Material Stainless Steel
  • Cage Material Stainless Steel
  • Dynamic Radial Load 1248 lbf
  • Static Radial Load 1165 lbf
  • Temperature Range -86 to 230 °F
  • Lubrication Required
  • RoHS Compliant
  • REACH Compliant
  • Max Speed 9900 rpm
  • Weight 52 g
  • Price（$） 2.3
Thin Section Ball Bearings S6810zz dimension drawing
Download DWG Download PDF

Features

How Does S6810zz Bearing Reduce Friction?

S6810zz Bearing features stainless steel rings and balls, ensuring smooth operation with minimal friction.
Its shielded design helps retain lubrication, further reducing wear and maintaining efficiency.
The ABEC-1 tolerance class ensures consistent performance, even at high speeds up to 9,900 rpm.
With a dynamic radial load capacity of 1248 lbf, it handles demanding radial loads reliably.

Application

Industrial Uses of S6810zz Bearing
S6810zz Bearing works well in compact machinery like packaging equipment, where its thin section design saves space without sacrificing performance. The shielded seals help keep contaminants out, extending its lifespan in dusty environments.

Where Is S6810zz Bearing Used?
You’ll often spot S6810zz Bearing in robotics, particularly in joint mechanisms where low friction and smooth rotation are key. Its stainless steel construction also makes it suitable for food processing equipment, where corrosion resistance matters.

Built for Versatility: S6810zz Bearing
S6810zz Bearing fits nicely into medical devices like dental drills, offering reliable precision in tight spaces. The ABEC-1 tolerance ensures consistent performance for delicate applications.

Automotive vs Aerospace: Applications of S6810zz Bearing
In cars, S6810zz Bearing can handle dashboard instrument movements, while in drones, it supports lightweight rotor systems. Its balanced load capacity makes it adaptable across different industries.

Perfect Fit for Automation: S6810zz Bearing
S6810zz Bearing shines in conveyor systems, where its slim profile and shielded design reduce maintenance needs. The high-speed capability also makes it a solid pick for automated sorting machines.
