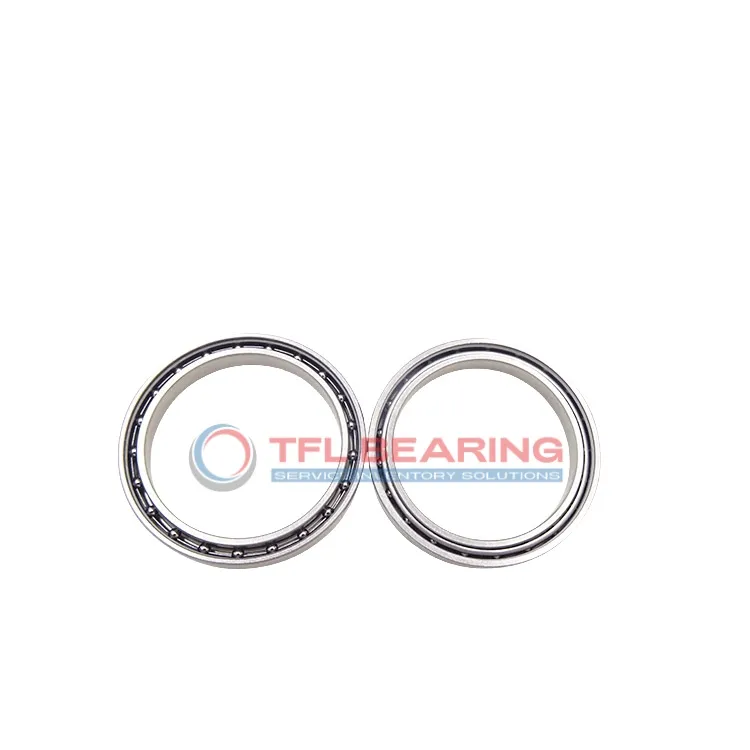

Thin Section Ball Bearings S6810

Thin Section Ball Bearings S6810

The S6810 is a slim, single-row ball bearing with a 50mm bore and 65mm outer diameter, crafted entirely from stainless steel for durability. Its thin 7mm profile makes it ideal for space-constrained applications while handling radial loads up to 1248 lbf.

With a maximum speed of 9900 RPM and smooth operation, it suits moderate-speed machinery. The open design allows easy lubrication, though regular maintenance is needed for optimal performance.

This bearing works across a wide temperature range from -86°F to 230°F, adaptable to various environments. Its ABEC-1 tolerance ensures reliable precision for general industrial use.

Weighing just 52g, it’s lightweight yet sturdy. Compliant with RoHS and REACH standards, it’s a practical choice for radial load applications like small motors or precision equipment.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number S6810
  • Brand TFL
  • Bore Dia 50 mm
  • Bore Dia Tolerance -0.012mm to 0
  • Outer Dia 65 mm
  • Outer Dia Tolerance -0.013mm to 0
  • Width 7 mm
  • Width Tolerance -0.120mm to 0
  • Radial Clearance 0.006mm to 0.023mm
  • System of Measurement Metric
  • Bearing Type Ball
  • For Load Direction Radial
  • Construction Single Row
  • Seal Type Open
  • Tolerance Class ABEC-1
  • Radial Clearance Trade No C0
  • Ring Material Stainless Steel
  • Ball Material Stainless Steel
  • Cage Material Stainless Steel
  • Dynamic Radial Load 1248 lbf
  • Static Radial Load 1165 lbf
  • Temperature Range -86 to 230 °F
  • Lubrication Required
  • RoHS Compliant
  • REACH Compliant
  • Max Speed 9900 rpm
  • Weight 52 g
  • Price（$） 2.3
Thin Section Ball Bearings S6810 dimension drawing
Download DWG Download PDF

Features

How Does S6810 Bearing Reduce Friction?

S6810 Bearing features a single-row design with stainless steel rings and balls, ensuring smooth radial load handling.
Its ABEC-1 tolerance class provides consistent performance, while the C0 radial clearance reduces friction.
The stainless steel cage maintains ball alignment, enhancing durability and efficiency.
With a maximum speed of 9,900 rpm, it delivers reliable operation in various applications.

Application

Common Applications of S6810 Bearing
S6810 Bearing is widely used in industrial automation, particularly in robotic arms and precision machinery, where its thin section design saves space without compromising performance. The stainless steel construction ensures durability in demanding environments.

In automotive applications, S6810 Bearing fits well in compact components like electric motors and gear systems, offering smooth radial load handling. Its lightweight design also helps improve fuel efficiency in modern vehicles.

For medical devices, S6810 Bearing’s precision and corrosion resistance make it suitable for surgical tools and diagnostic equipment. The open seal design allows for easy lubrication, ensuring long-term reliability.

In consumer electronics, S6810 Bearing can be found in devices like printers and small appliances, where its low-profile design and quiet operation are key advantages. The ABEC-1 tolerance ensures consistent performance for everyday use.
