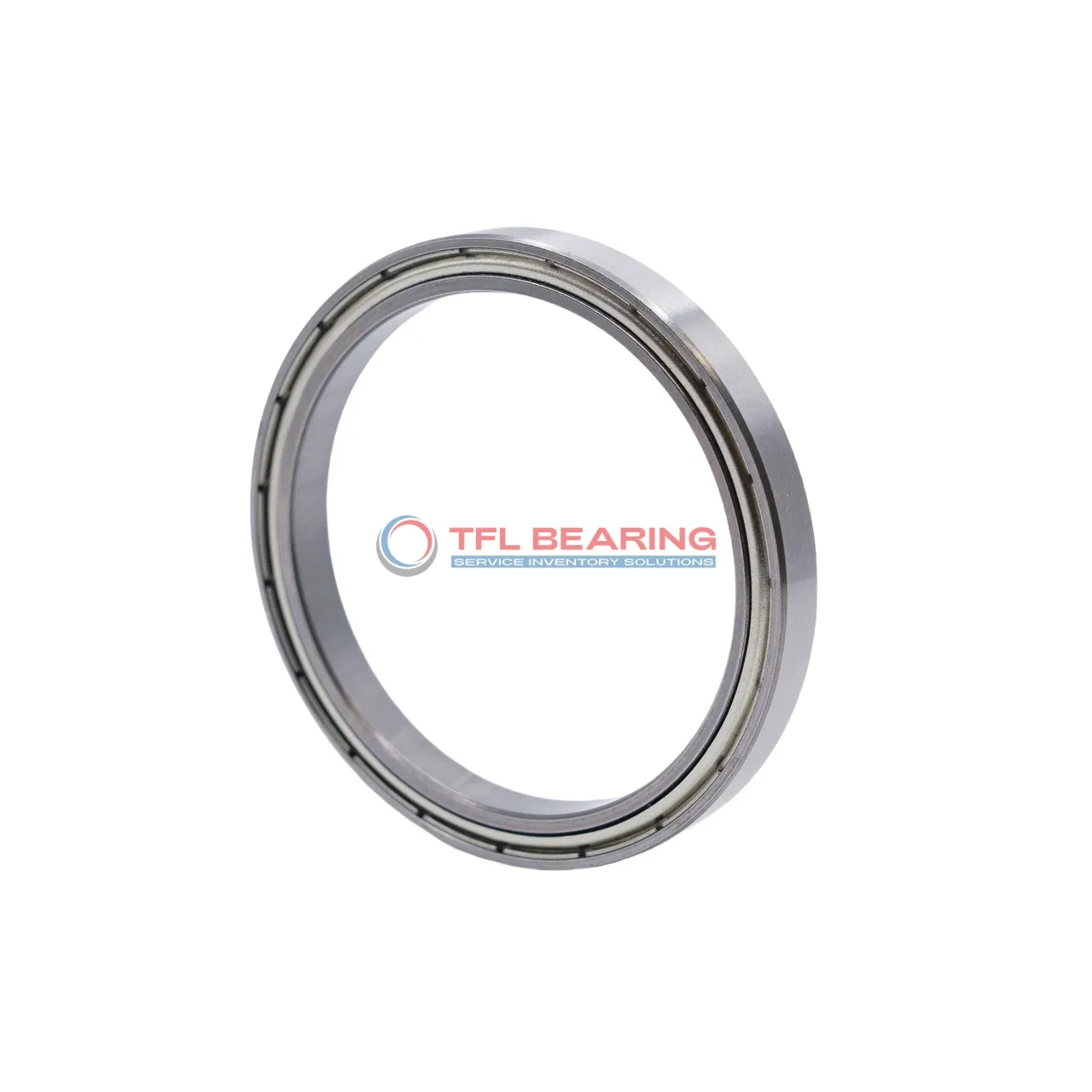

Thin Section Ball Bearings S6809zz

Thin Section Ball Bearings S6809zz

The S6809zz is a slim, shielded ball bearing measuring 45mm by 58mm by 7mm, crafted entirely from stainless steel for durability. It handles radial loads up to 1256 lbf and spins smoothly at speeds nearing 10,000 RPM.

Its compact design makes it ideal for tight spaces, while the shielded seals help keep out dust and debris. The bearing operates in temperatures from -86°F to 230°F, requiring regular lubrication for optimal performance.

With ABEC-1 precision and C0 radial clearance, it offers reliable accuracy for light to moderate loads. Perfect for applications like small motors, medical devices, or precision instruments where space is limited.

Weighing just 42 grams, it’s lightweight yet sturdy, and complies with RoHS and REACH standards for safe use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number S6809zz
  • Brand TFL
  • Bore Dia 45 mm
  • Bore Dia Tolerance -0.012mm to 0
  • Outer Dia 58 mm
  • Outer Dia Tolerance -0.013mm to 0
  • Width 7 mm
  • Width Tolerance -0.120mm to 0
  • Radial Clearance 0.006mm to 0.023mm
  • System of Measurement Metric
  • Bearing Type Ball
  • For Load Direction Radial
  • Construction Single Row
  • Seal Type Shielded
  • Tolerance Class ABEC-1
  • Radial Clearance Trade No C0
  • Ring Material Stainless Steel
  • Ball Material Stainless Steel
  • Cage Material Stainless Steel
  • Dynamic Radial Load 1256 lbf
  • Static Radial Load 1089 lbf
  • Temperature Range -86 to 230 °F
  • Lubrication Required
  • RoHS Compliant
  • REACH Compliant
  • Max Speed 9900 rpm
  • Weight 42 g
  • Price（$） 2.2
Thin Section Ball Bearings S6809zz dimension drawing
Download DWG Download PDF

Features

How Does S6809zz Bearing Reduce Friction?

S6809zz Bearing features stainless steel rings and balls, ensuring smooth operation with minimal friction.
Its shielded design helps retain lubrication, further enhancing performance and reducing wear.

The ABEC-1 tolerance class ensures consistent precision, making it suitable for radial load applications.
With a dynamic radial load capacity of 1256 lbf, it delivers reliable performance in various conditions.

S6809zz Bearing operates efficiently at speeds up to 9,900 rpm, balancing speed and durability.
Its compact 7 mm width makes it ideal for applications where space is limited.

Application

Industrial Uses of S6809zz Bearing
S6809zz Bearing is commonly used in industrial machinery where space is limited, thanks to its thin section design. Its shielded construction helps keep contaminants out, ensuring reliable performance in dusty environments.

How Does S6809zz Bearing Improve Performance?
In automation systems, S6809zz Bearing reduces friction in robotic arms, allowing for smoother movements. The stainless steel construction also resists corrosion, making it suitable for humid conditions.

Perfect Fit for Automation: S6809zz Bearing
S6809zz Bearing works well in 3D printers, where precision and low noise are essential. Its lightweight design ensures minimal strain on moving parts during prolonged use.

Automotive vs Aerospace: Applications of S6809zz Bearing
In automotive applications, S6809zz Bearing supports small electric motors, while in aerospace, it aids in lightweight instrument panels. The ABEC-1 tolerance ensures consistent performance in both fields.

Where Is S6809zz Bearing Used?
You’ll find S6809zz Bearing in medical devices like lab equipment, where its smooth operation is crucial. The wide temperature range also makes it adaptable to various working conditions.
