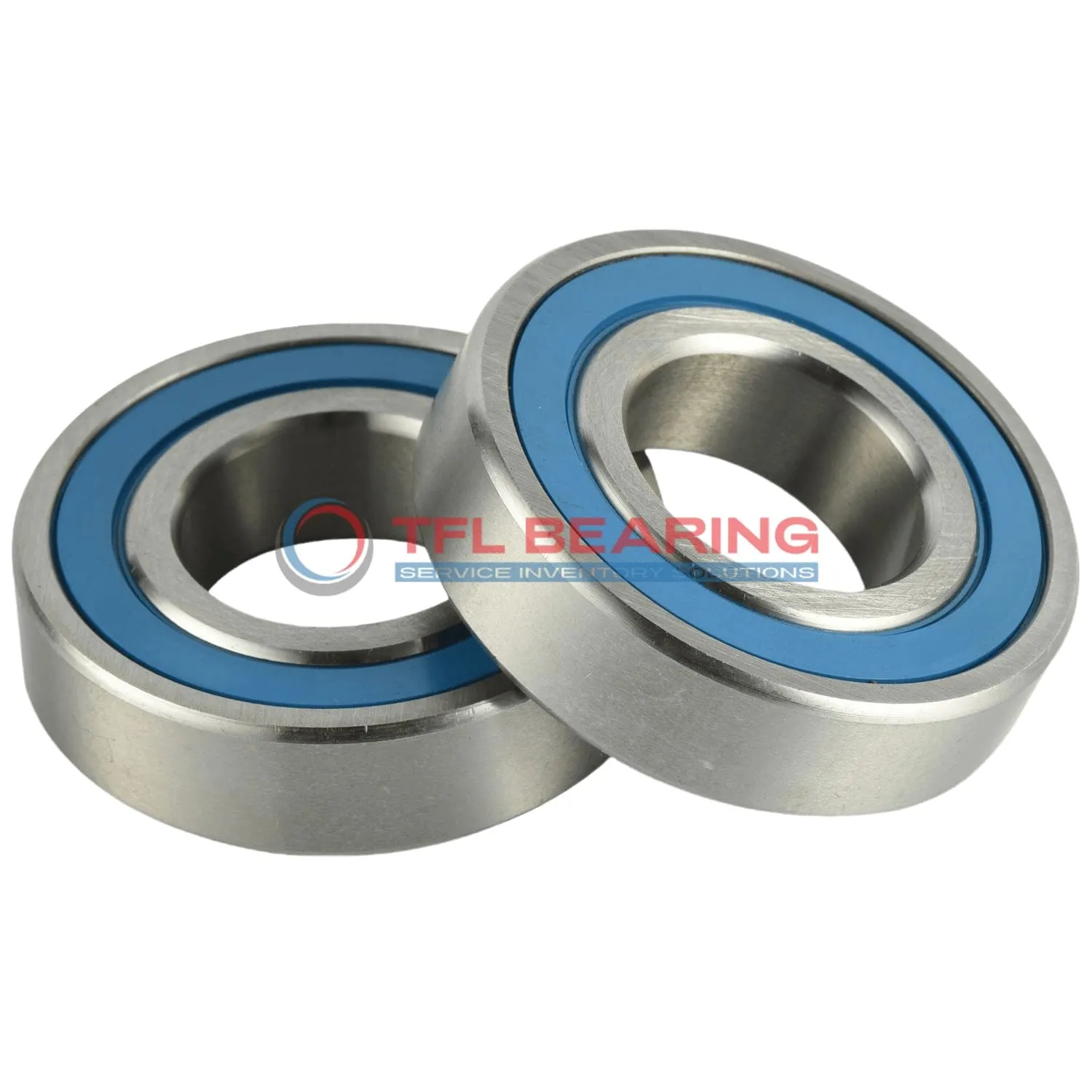

Single Row Deep Groove Ball Bearings 6306-2RS/C3 GJN

Single Row Deep Groove Ball Bearings 6306-2RS/C3 GJN

The 6306-2RS/C3 GJN is a single-row deep groove ball bearing with a 30mm bore and 72mm outer diameter, crafted from robust chrome steel. It handles radial loads up to 6002 lbf and operates smoothly at speeds up to 9600 RPM.

Sealed on both sides, it keeps dirt out and grease in, making it low-maintenance. The C3 clearance allows for slight thermal expansion, ideal for varying temperatures.

This bearing suits a range of applications, from electric motors to conveyor systems, where reliability is key. It works in temperatures from -30°C to 120°C.

Weighing 346g, it’s a sturdy yet manageable size. Compliant with RoHS and REACH standards, it’s a safe and dependable choice for industrial use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 6306-2RS/C3 GJN
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Sealed
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No C3
  • Bore Dia 30 mm
  • Bore Dia Tolerance -0.01mm to 0
  • Outer Dia 72 mm
  • Outer Dia Tolerance -0.013mm to 0
  • Width 19 mm
  • Width Tolerance -0.120mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Chrome Steel
  • ROHS Compliant
  • REACH Compliant
  • Temperature Range -30°to 120 °C
  • Dynamic Radial Load 6002 lbf
  • Static Radial Load 3372 lbf
  • Max Speed 9600 rpm
  • Weight 346 g
  • price（$） 9.603
Single Row Deep Groove Ball Bearings 6306-2RS/C3 GJN dimension drawing
Download DWG Download PDF

Features

How Does 6306-2RS/C3 GJN Bearing Reduce Friction?

6306-2RS/C3 GJN Bearing features a single-row deep groove design, optimised for smooth radial load distribution.
The sealed construction prevents contaminants from entering, reducing friction and wear.
Chrome steel rings and balls enhance durability, while the C3 radial clearance ensures reliable performance under varying temperatures.
With a maximum speed of 9,600 rpm, it balances efficiency and longevity.

Application

Industrial Uses of 6306-2RS/C3 GJN Bearing
This bearing is commonly used in industrial machinery like pumps and electric motors, where its sealed design helps keep contaminants out. The C3 clearance ensures reliable performance even under varying thermal conditions.

Where Is 6306-2RS/C3 GJN Bearing Used?
You’ll often find 6306-2RS/C3 GJN Bearing in automotive applications such as alternators and wheel hubs. Its chrome steel construction provides durability, while the sealed design reduces maintenance needs.

Built for Heavy-Duty Use: 6306-2RS/C3 GJN Bearing
In conveyor systems and gearboxes, 6306-2RS/C3 GJN Bearing handles radial loads with ease. The wide temperature range makes it suitable for both hot and cold environments.

Automotive vs Industrial: Applications of 6306-2RS/C3 GJN Bearing
While 6306-2RS/C3 GJN Bearing excels in car components like fans and clutches, it’s also a staple in factory equipment. The metric sizing ensures compatibility across various machinery types.

Perfect Fit for Automation: 6306-2RS/C3 GJN Bearing
Robotic arms and packaging machines benefit from 6306-2RS/C3 GJN Bearing’s smooth operation. The sealed design keeps lubrication in and dirt out, extending service life.
