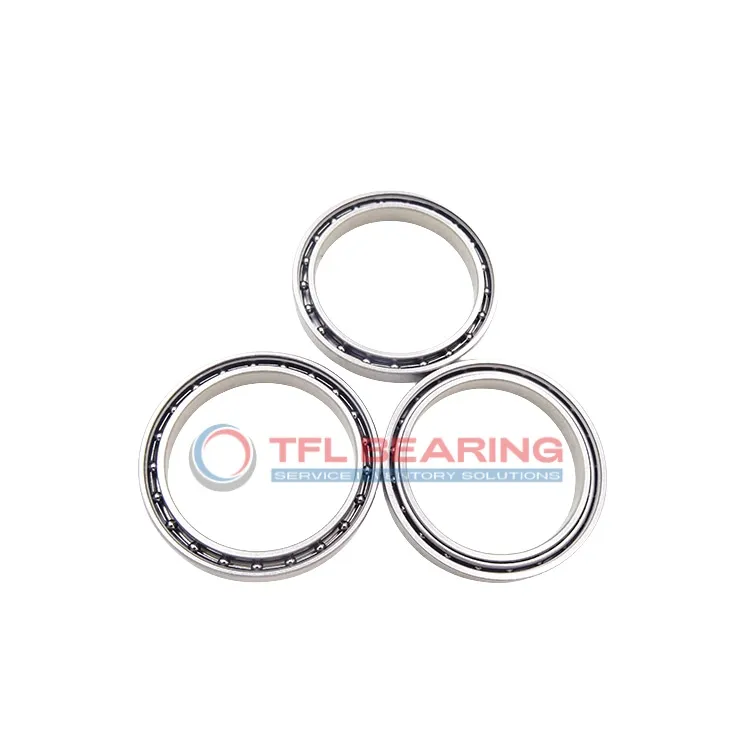

Thin Section Ball Bearings S6806

Thin Section Ball Bearings S6806

The S6806 is a slim, single-row ball bearing measuring 30mm by 42mm by 7mm, crafted entirely from stainless steel for durability. It handles radial loads up to 900 lbf and spins smoothly at speeds up to 13,500 RPM.

With an open design and ABEC-1 tolerance, it offers reliable performance while allowing easy lubrication. The bearing operates in temperatures from -86°F to 230°F, making it versatile for various environments.

Its compact, lightweight build (just 27g) suits space-constrained applications like robotics or medical devices. Compliant with RoHS and REACH standards, it’s a safe choice for precision equipment needing smooth radial motion.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number S6806
  • Brand TFL
  • Bore Dia 30 mm
  • Bore Dia Tolerance -0.01mm to 0
  • Outer Dia 42 mm
  • Outer Dia Tolerance -0.011mm to 0
  • Width 7 mm
  • Width Tolerance -0.120mm to 0
  • Radial Clearance 0.006mm to 0.020mm
  • System of Measurement Metric
  • Bearing Type Ball
  • For Load Direction Radial
  • Construction Single Row
  • Seal Type Open
  • Tolerance Class ABEC-1
  • Radial Clearance Trade No C0
  • Ring Material Stainless Steel
  • Ball Material Stainless Steel
  • Cage Material Stainless Steel
  • Dynamic Radial Load 900 lbf
  • Static Radial Load 696 lbf
  • Temperature Range -86 to 230 °F
  • Lubrication Required
  • RoHS Compliant
  • REACH Compliant
  • Max Speed 13500 rpm
  • Weight 27 g
  • Price（$） 2
Thin Section Ball Bearings S6806 dimension drawing
Download DWG Download PDF

Features

Performance Features of S6806 Bearing

S6806 Bearing is crafted with stainless steel rings and balls, offering strong resistance to radial loads.
Its dynamic radial load capacity reaches 900 lbf, ensuring reliable performance in various applications.

The thin-section design of S6806 Bearing makes it suitable for compact spaces without compromising strength.
With a maximum speed of 13,500 rpm, it delivers smooth and efficient operation.

S6806 Bearing operates effectively in temperatures ranging from -86 to 230 °F, adapting to diverse environments.
Its stainless steel construction provides corrosion resistance, enhancing durability.

The open design of S6806 Bearing simplifies lubrication, ensuring consistent performance over time.
Its ABEC-1 tolerance class guarantees precision, making it ideal for applications requiring accuracy.

Application

Key Fields for S6806 Bearing
S6806 Bearing is commonly used in industrial automation, especially in robotic arms and precision machinery, where its slim profile and radial load capacity are beneficial. The stainless steel construction ensures durability in demanding environments.

Where Is S6806 Bearing Used?
In medical devices like surgical tools and diagnostic equipment, S6806 Bearing offers smooth operation due to its low friction and high precision. Its compact size makes it ideal for space-constrained applications.

Optimized for Performance: S6806 Bearing
For consumer electronics such as printers and small appliances, S6806 Bearing provides reliable performance with minimal maintenance. The open design allows for easy lubrication, extending its service life.

Automotive vs Aerospace: Applications of S6806 Bearing
In automotive systems like electric motors, S6806 Bearing handles radial loads efficiently, while in aerospace, its lightweight design is advantageous for reducing overall weight. The temperature range suits both environments well.
