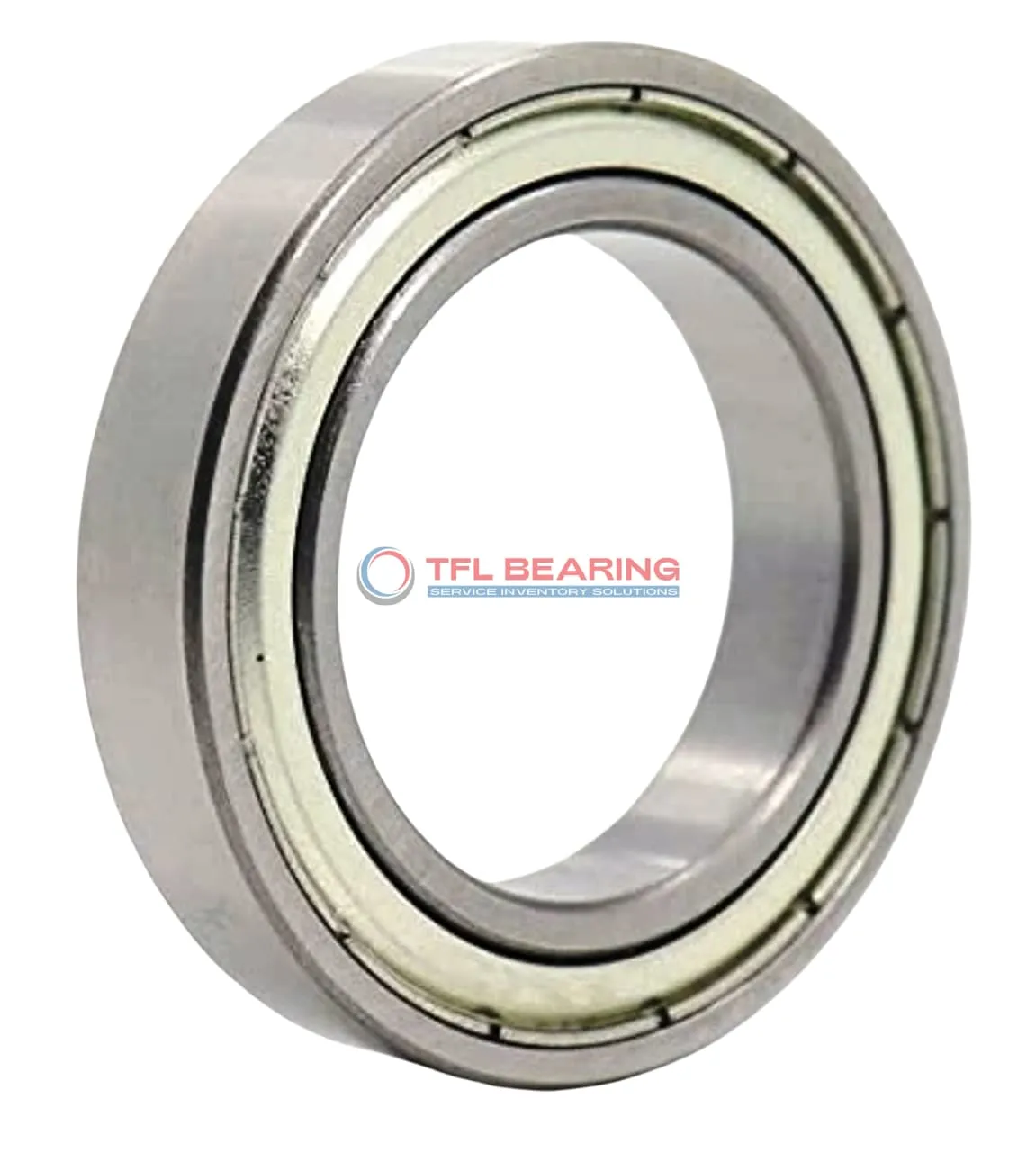

Thin Section Ball Bearings S6710zz

The S6710zz is a slim, shielded ball bearing measuring 50mm by 62mm by 6mm, crafted entirely from stainless steel for durability. It handles radial loads up to 540 lbf and operates smoothly at speeds up to 3200 RPM.

Its shielded design helps keep out dust and debris, while the stainless steel cage ensures reliable performance. The bearing requires lubrication for optimal function and works in temperatures from -86°F to 230°F.

With a C0 radial clearance, it offers a balance between precision and ease of movement. Ideal for compact applications like small motors or precision instruments where space is limited.

Weighing just 64g, it’s lightweight yet sturdy. Compliant with RoHS and REACH standards, making it a safe choice for various industries.

Get A Free Quote

Description

Features

Application

Q&A

Product Parameters

Part Number S6710zz
Brand TFL
Bore Dia 50 mm
Bore Dia Tolerance -0.012mm to 0
Outer Dia 62 mm
Outer Dia Tolerance -0.013mm to 0
Width 6 mm
Width Tolerance -0.120mm to 0
Radial Clearance 0.006mm to 0.023mm
System of Measurement Metric
Bearing Type Ball
For Load Direction Radial
Construction Single Row
Seal Type Shielded
Tolerance Class ABEC-1
Radial Clearance Trade No C0
Ring Material Stainless Steel
Ball Material Stainless Steel
Cage Material Stainless Steel
Dynamic Radial Load 540 lbf
Static Radial Load 536 lbf
Temperature Range -86 to 230 °F
Lubrication Required
RoHS Compliant
REACH Compliant
Max Speed 3200 rpm
Weight 64 g
Price（$） 2.5

Thin Section Ball Bearings S6710zz dimension drawing

Download DWG Download PDF

Features

How Does S6710zz Bearing Resist Wear?

S6710zz Bearing features stainless steel rings and balls, offering excellent resistance to wear and corrosion.
Its shielded design helps protect against contaminants, ensuring smoother operation over time.

With a dynamic radial load capacity of 540 lbf, it handles moderate loads reliably.
The ABEC-1 tolerance class ensures consistent performance for precision applications.

S6710zz Bearing operates efficiently within a temperature range of -86 to 230 °F.
Its compact 6 mm width makes it suitable for space-constrained installations.

Application

Common Applications of S6710zz Bearing
S6710zz Bearing is widely used in industrial automation, particularly in robotic arms and precision machinery, where its thin section design saves space without compromising performance. The shielded seals help keep contaminants out, ensuring longer service life in dusty environments.

In medical imaging devices, S6710zz Bearing’s stainless steel construction offers excellent corrosion resistance, crucial for maintaining hygiene and reliability. Its low-profile design also fits well in compact medical equipment where space is limited.

For consumer electronics like printers and scanners, S6710zz Bearing provides smooth, quiet operation thanks to its precision ball design. The ABEC-1 tolerance ensures consistent performance, making it a reliable choice for everyday devices.

Automotive applications benefit from S6710zz Bearing’s ability to handle radial loads in components like dashboard mechanisms. Its lightweight design and corrosion resistance make it suitable for both interior and under-the-hood uses.

In 3D printers, S6710zz Bearing’s thin section and shielded design help maintain accuracy by reducing friction and preventing dust buildup. The stainless steel materials ensure durability even with continuous use in high-precision tasks.
