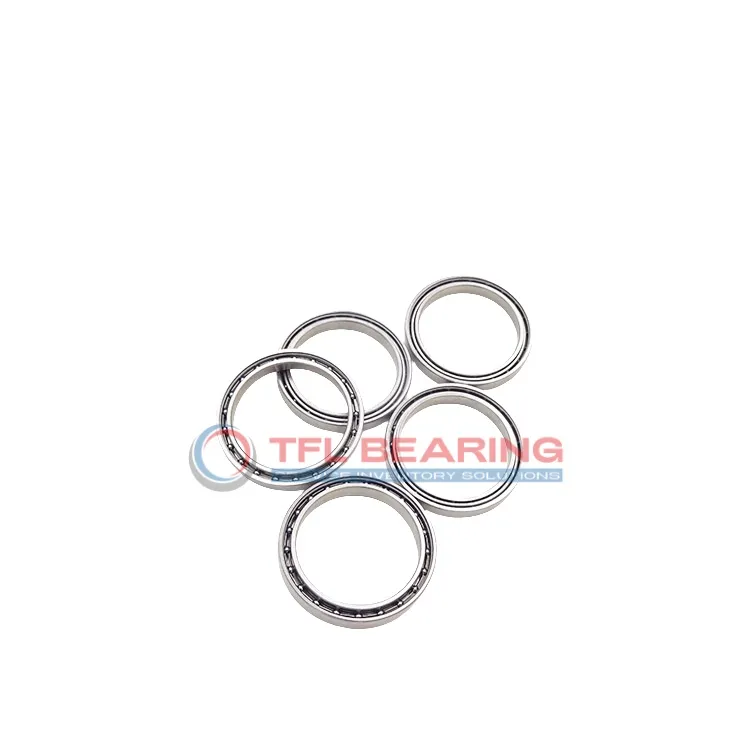

Thin Section Ball Bearings S6710

Thin Section Ball Bearings S6710

The S6710 is a slim, single-row ball bearing with a 50mm bore and 62mm outer diameter, crafted entirely from stainless steel for corrosion resistance. Its compact 6mm width makes it ideal for space-sensitive applications.

With a dynamic radial load capacity of 540 lbf, it handles moderate forces while spinning smoothly at speeds up to 3690 RPM. The open design allows easy lubrication when needed.

The bearing operates reliably in temperatures from -86°F to 230°F, suitable for varied environments. Its ABEC-1 tolerance ensures decent precision for general use.

Perfect for lightweight machinery or instruments where thin profiles are essential. Compliant with RoHS and REACH standards, it weighs just 64 grams for easy handling.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number S6710
  • Brand TFL
  • Bore Dia 50 mm
  • Bore Dia Tolerance -0.012mm to 0
  • Outer Dia 62 mm
  • Outer Dia Tolerance -0.013mm to 0
  • Width 6 mm
  • Width Tolerance -0.120mm to 0
  • Radial Clearance 0.006mm to 0.023mm
  • System of Measurement Metric
  • Bearing Type Ball
  • For Load Direction Radial
  • Construction Single Row
  • Seal Type Open
  • Tolerance Class ABEC-1
  • Radial Clearance Trade No C0
  • Ring Material Stainless Steel
  • Ball Material Stainless Steel
  • Cage Material Stainless Steel
  • Dynamic Radial Load 540 lbf
  • Static Radial Load 536 lbf
  • Temperature Range -86 to 230 °F
  • Lubrication Required
  • RoHS Compliant
  • REACH Compliant
  • Max Speed 3690 rpm
  • Weight 64 g
  • Price（$） 2.5
Thin Section Ball Bearings S6710 dimension drawing
Download DWG Download PDF

Features

Performance Features of S6710 Bearing

S6710 Bearing features a slim 6 mm width, making it ideal for space-constrained applications.
Its stainless steel construction ensures resistance to corrosion and long-lasting performance.

The single-row design of S6710 Bearing provides reliable radial load support up to 540 lbf.
With ABEC-1 precision tolerance, it offers smooth operation for various industrial uses.

S6710 Bearing operates efficiently within a wide temperature range from -86 to 230 °F.
Its open design allows for easy lubrication, maintaining optimal performance over time.

Application

Common Applications of S6710 Bearing
S6710 Bearing is widely used in industrial automation, particularly in robotic arms and precision machinery, where its thin section design saves space without compromising performance. The stainless steel construction ensures durability in demanding environments.

Where Is S6710 Bearing Used?
You’ll often find S6710 Bearing in medical imaging devices, where its low friction and smooth operation are essential for accurate results. Its compact size makes it ideal for tight spaces in high-tech equipment.

Built for Versatility: S6710 Bearing
S6710 Bearing works well in consumer electronics like printers and scanners, thanks to its lightweight design and reliable radial load capacity. The open seal allows for easy lubrication, extending its service life.

Automotive vs Aerospace: Applications of S6710 Bearing
In automotive systems, S6710 Bearing supports small components like sensors and actuators, while in aerospace, its temperature resistance makes it suitable for avionics. The metric sizing ensures compatibility across various applications.
