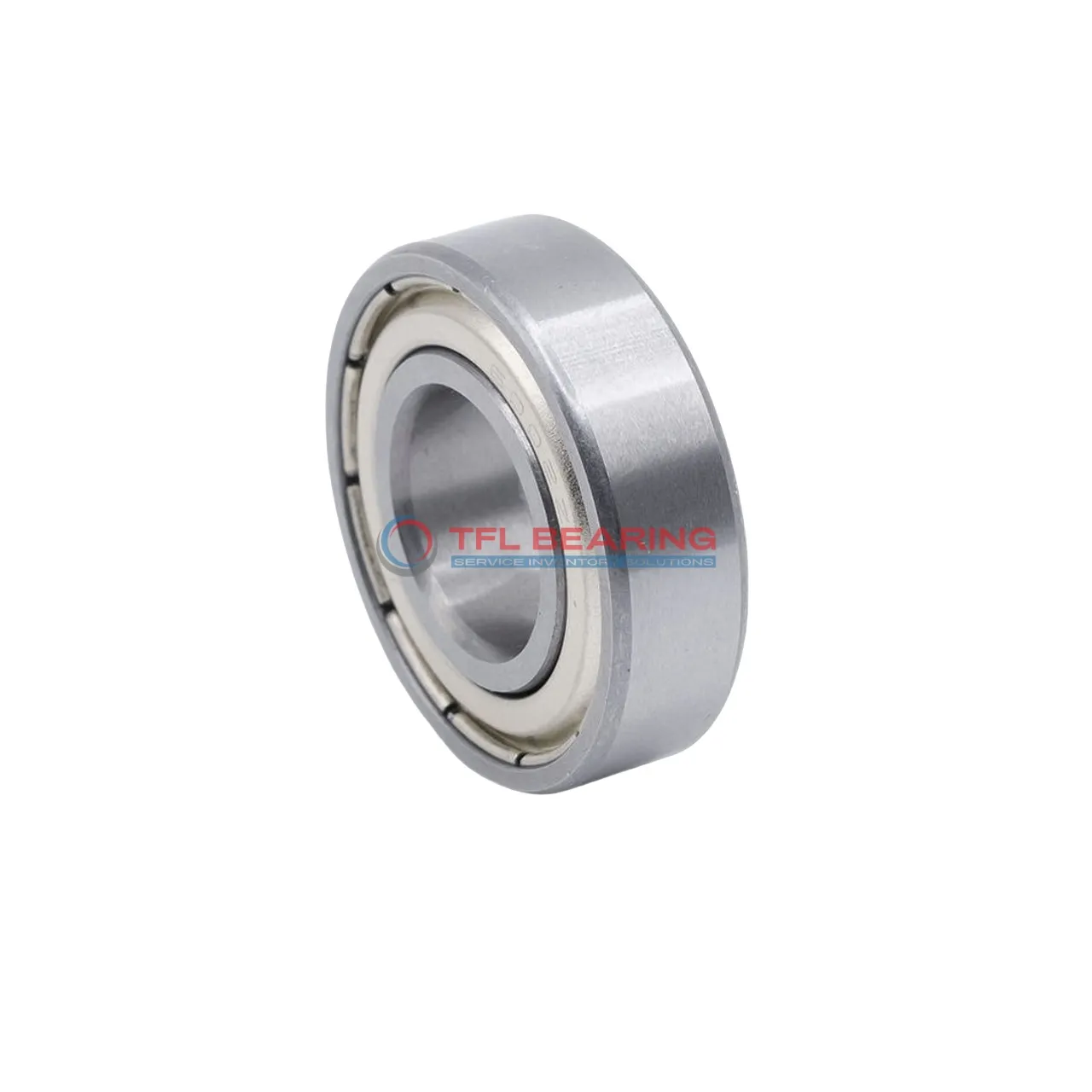

Single Row Deep Groove Ball Bearings 6315-2ZJEM

Single Row Deep Groove Ball Bearings 6315-2ZJEM

The 6315-2ZJEM is a single-row deep groove ball bearing with a 75mm bore and 160mm outer diameter, crafted from sturdy chrome steel. It manages radial loads up to 25403 lbf and operates smoothly at speeds up to 4300 RPM.

Its shielded design keeps dirt out while maintaining easy access for lubrication. The chrome steel cage adds durability, making it a reliable choice for long-term use.

This bearing works well in temperatures from -30°C to 120°C, suitable for various industrial environments. It’s interchangeable with SKF models, offering flexibility for replacements.

Weighing 3030g, it’s robust yet manageable for its size. Compliant with RoHS and REACH standards, ensuring safe and eco-friendly operation. Ideal for machinery like pumps or electric motors where radial loads are common.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 6315-2ZJEM
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Shielded
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No CN
  • Bore Dia 75 mm
  • Bore Dia Tolerance -0.015mm to 0
  • Outer Dia 160 mm
  • Outer Dia Tolerance -0.025mm to 0
  • Width 37 mm
  • Width Tolerance -0.150mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Chrome Steel
  • ROHS Compliant
  • REACH Compliant
  • Temperature Range -30°to 120 °C
  • Dynamic Radial Load 25403 lbf
  • Static Radial Load 17355 lbf
  • Max Speed 4300 rpm
  • Weight 3030 g
  • price（$） 55.782
Single Row Deep Groove Ball Bearings 6315-2ZJEM dimension drawing
Download DWG Download PDF

Features

How Does 6315-2ZJEM Bearing Reduce Friction?

6315-2ZJEM Bearing features a single-row deep groove design, optimised for smooth radial load distribution.
The shielded construction helps keep contaminants out, ensuring consistent performance.

Made from chrome steel, both the rings and balls provide excellent durability and reduced friction.
Its dynamic radial load capacity of 25403 lbf makes it suitable for demanding applications.

With a maximum speed of 4,300 rpm, 6315-2ZJEM Bearing balances efficiency and reliability.
The ABEC 1 tolerance ensures consistent performance in various industrial settings.

Application

Industrial Uses of 6315-2ZJEM Bearing
6315-2ZJEM Bearing is commonly used in industrial machinery like pumps and electric motors, where its shielded design helps keep contaminants out. The chrome steel construction ensures durability even in demanding environments.

In automotive applications, 6315-2ZJEM Bearing fits well in wheel hubs and transmissions, providing reliable radial load support. Its ABEC 1 tolerance makes it suitable for standard performance requirements.

For automation systems, 6315-2ZJEM Bearing works smoothly in conveyor belts and robotic arms. The balanced design reduces vibration, contributing to longer equipment life.

In household appliances, 6315-2ZJEM Bearing can be found in washing machines and fans. Its shielded seals help maintain performance while reducing maintenance needs.
