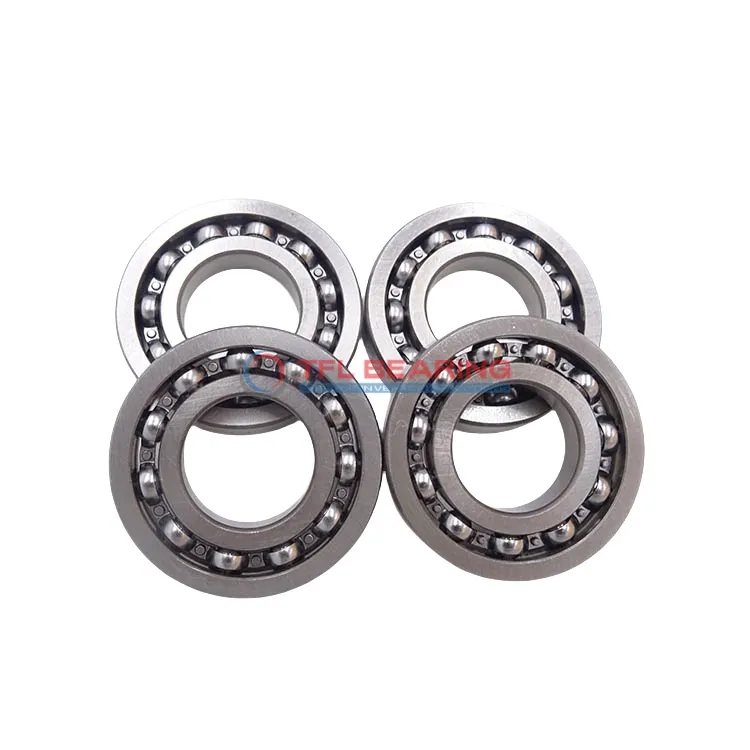

Single Row Deep Groove Ball Bearings 6314/C4HS0

Single Row Deep Groove Ball Bearings 6314/C4HS0

The 6314/C4HS0 is a single-row deep groove ball bearing with a 70mm bore and 150mm outer diameter, crafted from sturdy chrome steel. It manages radial loads up to 2338 lbf and operates smoothly at speeds reaching 4500 RPM.

Its open design simplifies maintenance, while the chrome steel cage enhances durability. The bearing performs reliably in temperatures ranging from -30°C to 150°C.

With a C4 radial clearance, it offers flexibility for applications with thermal expansion. This model is interchangeable with SKF bearings, making it a practical choice for replacements.

Weighing 2530g, it’s robust yet manageable for industrial use. Compliant with RoHS and REACH standards, it’s suitable for machinery like pumps or electric motors where radial loads are common.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 6314/C4HS0
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Open
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No C4
  • Bore Dia 70 mm
  • Bore Dia Tolerance -0.015mm to 0
  • Outer Dia 150 mm
  • Outer Dia Tolerance -0.018mm to 0
  • Width 35 mm
  • Width Tolerance -0.150mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Chrome Steel
  • ROHS Compliant
  • REACH Compliant
  • Temperature Range -30°to 150 °C
  • Dynamic Radial Load 2338 lbf
  • Static Radial Load 15332 lbf
  • Max Speed 4500 rpm
  • Weight 2530 g
Single Row Deep Groove Ball Bearings 6314/C4HS0 dimension drawing
Download DWG Download PDF

Features

Engineered for Precision: 6314/C4HS0 Bearing

6314/C4HS0 Bearing features a single-row deep groove design, optimised for radial load handling with high efficiency.
Its chrome steel construction ensures durability and resistance to wear in various applications.

With a dynamic radial load capacity of 2338 lbf, it performs reliably under demanding conditions.
The C4 radial clearance allows for thermal expansion, making it suitable for high-temperature environments up to 150°C.

Maintenance is simplified due to its open design, reducing long-term operational costs.
Its maximum speed of 4,500 rpm ensures smooth operation in high-speed applications.

Application

Industrial Uses of 6314/C4HS0 Bearing
This bearing is commonly used in industrial machinery like pumps and electric motors, where its deep groove design handles radial loads efficiently. The open seal allows for easy lubrication, extending service life in demanding conditions.

In automotive applications, 6314/C4HS0 Bearing fits well in wheel hubs and transmission systems, thanks to its robust chrome steel construction. Its C4 clearance ensures reliable performance even with thermal expansion during long drives.

For automation equipment, 6314/C4HS0 Bearing supports smooth rotation in robotic arms and conveyor belts. The metric sizing makes it compatible with a variety of European and Asian machinery standards.

Where Is 6314/C4HS0 Bearing Used?
You’ll often find this bearing in household appliances like washing machines, where its durability handles constant spin cycles. The wide temperature range also makes it suitable for both hot and cold environments.

In agricultural machinery, 6314/C4HS0 Bearing withstands heavy loads in equipment like harvesters. Its ABEC 1 tolerance provides a good balance of precision and cost-effectiveness for farm use.
