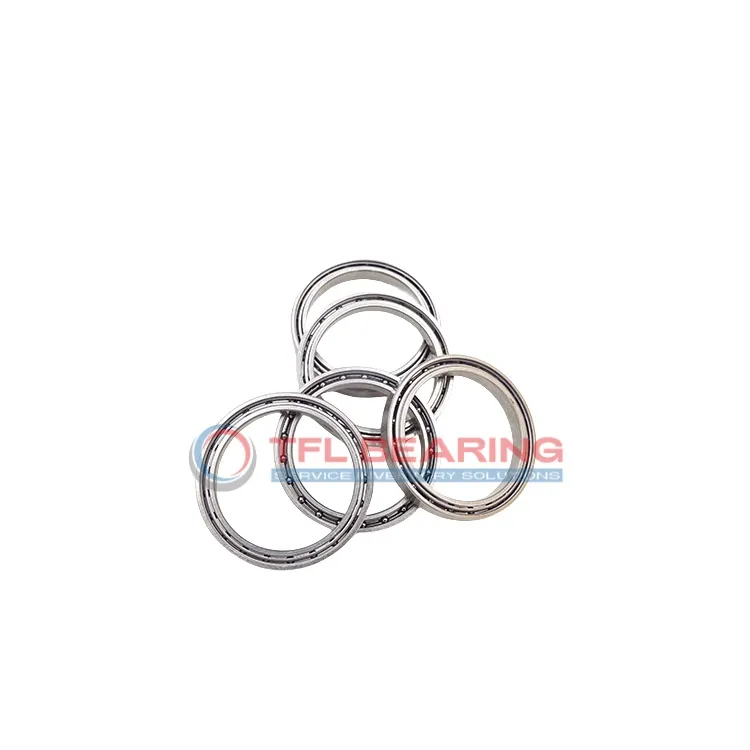

Thin Section Ball Bearings 6917

Thin Section Ball Bearings 6917

The 6917 is a thin-section ball bearing with an 85mm bore and 120mm outer diameter, designed for radial loads. Its compact 18mm width makes it ideal for space-constrained applications.

Made from chrome steel with a stainless steel cage, it handles radial loads up to 7178 lbf and spins smoothly at 6200 RPM. The open design allows for easy lubrication and maintenance.

With a temperature range of -30°C to 110°C, it suits various industrial environments. The ABEC-1 tolerance ensures reliable performance without being overly precise.

Weighing 535g, it’s lightweight yet durable. Compliant with RoHS and REACH standards, it’s a safe choice for machinery requiring slim, efficient bearings.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 6917
  • Brand TFL
  • Bore Dia 85 mm
  • Bore Dia Tolerance -0.02mm to 0
  • Outer Dia 120 mm
  • Outer Dia Tolerance -0.015mm to 0
  • Width 18 mm
  • Width Tolerance -0.200mm to 0
  • Radial Clearance 0.012mm to 0.036mm
  • System of Measurement Metric
  • Bearing Type Ball
  • For Load Direction Radial
  • Construction Single Row
  • Seal Type Open
  • Tolerance Class ABEC-1
  • Radial Clearance Trade No C0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Stainless Steel
  • Dynamic Radial Load 7178 lbf
  • Static Radial Load 6660 lbf
  • Temperature Range -30°C to 110 °C
  • Lubrication Required
  • RoHS Compliant
  • REACH Compliant
  • Max Speed 6200 rpm
  • Weight 535 g
  • Price（$） 4
Thin Section Ball Bearings 6917 dimension drawing
Download DWG Download PDF

Features

How Is 6917 Bearing Engineered for Reliability?

6917 Bearing features chrome steel rings and balls, ensuring durability under radial loads.
Its dynamic radial load capacity of 7178 lbf makes it suitable for demanding applications.

The stainless steel cage maintains ball alignment, reducing friction and wear.
With a maximum speed of 6,200 rpm, it offers reliable performance in various conditions.

6917 Bearing operates efficiently within a temperature range of -30°C to 110°C.
Its open design allows for easy lubrication, ensuring smooth operation over time.

Application

Industrial Uses of 6917 Bearing
The 6917 Bearing is commonly used in industrial machinery where space is limited but radial load capacity is essential, such as in packaging equipment and textile machines. Its thin-section design allows for compact installations without compromising performance.

What Makes 6917 Bearing a Preferred Choice?
In robotics and automation, 6917 Bearing provides smooth rotation for robotic arms and precision-guided systems. The chrome steel construction ensures durability even in high-cycle applications.

Built for Heavy-Duty Use: 6917 Bearing
For conveyor systems and material handling equipment, 6917 Bearing offers reliable performance under continuous radial loads. The open design simplifies lubrication and maintenance, extending service life.

Automotive vs Aerospace: Applications of 6917 Bearing
In automotive applications, 6917 Bearing is found in gearboxes and steering systems, while in aerospace, it supports auxiliary equipment requiring lightweight yet sturdy components. The ABEC-1 tolerance ensures consistent operation.

Perfect Fit for Automation: 6917 Bearing
6917 Bearing is ideal for automated production lines and CNC machines, where its precise dimensions and smooth operation enhance efficiency. The stainless steel cage adds corrosion resistance in demanding environments.
