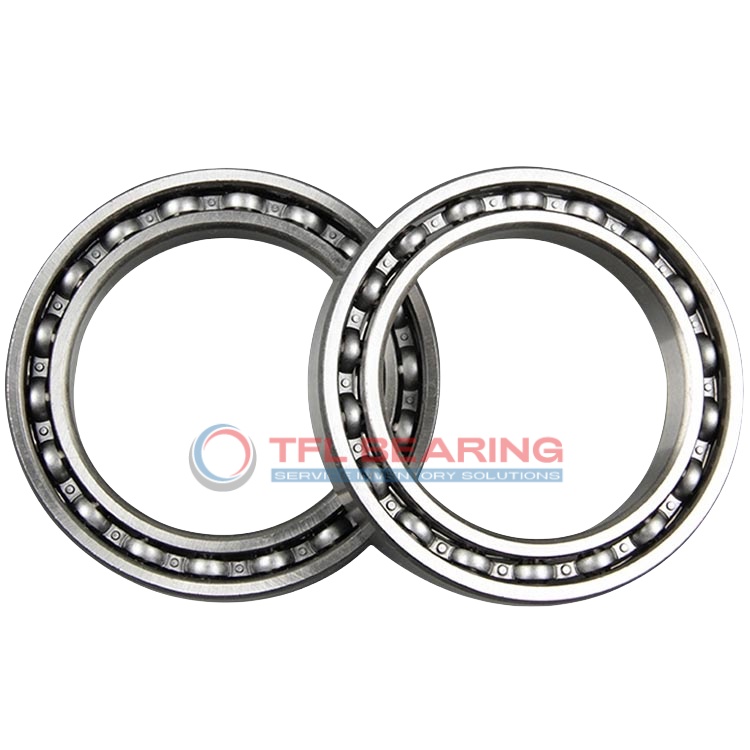

Thin Section Ball Bearings 6915

Thin Section Ball Bearings 6915

The 6915 is a thin-section ball bearing with a compact design, measuring 75mm in bore diameter and 105mm outside, just 16mm wide. Made from chrome steel, it offers reliable radial load handling up to 5400 lbf.

Its open design and ABEC-1 tolerance ensure smooth rotation at speeds up to 7100 RPM, with a radial clearance of 0.01mm to 0.03mm for precise movement. The stainless steel cage adds durability.

This bearing suits applications where space is limited but performance can’t be compromised, like robotics or medical equipment. It operates in temperatures from -30°C to 110°C.

Weighing 363g, it’s lightweight yet sturdy. Compliant with RoHS and REACH standards, it requires regular lubrication for optimal performance.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 6915
  • Brand TFL
  • Bore Dia 75 mm
  • Bore Dia Tolerance -0.015mm to 0
  • Outer Dia 105 mm
  • Outer Dia Tolerance -0.015mm to 0
  • Width 16 mm
  • Width Tolerance -0.150mm to 0
  • Radial Clearance 0.01mm to 0.03mm
  • System of Measurement Metric
  • Bearing Type Ball
  • For Load Direction Radial
  • Construction Single Row
  • Seal Type Open
  • Tolerance Class ABEC-1
  • Radial Clearance Trade No C0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Stainless Steel
  • Dynamic Radial Load 5400 lbf
  • Static Radial Load 5085 lbf
  • Temperature Range -30°C to 110 °C
  • Lubrication Required
  • RoHS Compliant
  • REACH Compliant
  • Max Speed 7100 rpm
  • Weight 363 g
  • Price（$） 3.5
Thin Section Ball Bearings 6915 dimension drawing
Download DWG Download PDF

Features

Performance Features of 6915 Bearing

6915 Bearing is designed with chrome steel rings and balls, offering strong radial load capacity up to 5400 lbf.
Its single-row construction ensures smooth operation, making it suitable for various applications.

The stainless steel cage maintains ball alignment, reducing friction and extending service life.
With a maximum speed of 7,100 rpm, it balances performance and durability.

6915 Bearing operates efficiently within a temperature range of -30°C to 110°C.
Its open design allows for easy lubrication, ensuring consistent performance over time.

The ABEC-1 tolerance class provides reliable precision for standard applications.
Weighing just 363 g, it combines strength with a lightweight design.

Application

Industrial Uses of 6915 Bearing
6915 Bearing is commonly used in machine tools, where its thin section design saves space without compromising load capacity. The open seal allows for easy lubrication, ensuring smooth operation in industrial settings.

Where Is 6915 Bearing Used?
You’ll find 6915 Bearing in conveyor systems, where its radial load handling keeps things running efficiently. Its chrome steel construction also makes it durable for long-term use in demanding environments.

Perfect Fit for Automation: 6915 Bearing
In robotic arms, 6915 Bearing offers precise movement thanks to its single-row construction. The ABEC-1 tolerance ensures consistent performance in automated production lines.

Automotive vs Aerospace: Applications of 6915 Bearing
In cars, 6915 Bearing supports components like alternators, while in aircraft, its lightweight design is ideal for auxiliary systems. Both benefit from its reliable radial load capacity.

Essential Roles of 6915 Bearing
For medical imaging devices, 6915 Bearing provides smooth rotation with minimal friction. The stainless steel cage adds durability, making it suitable for high-precision equipment.
