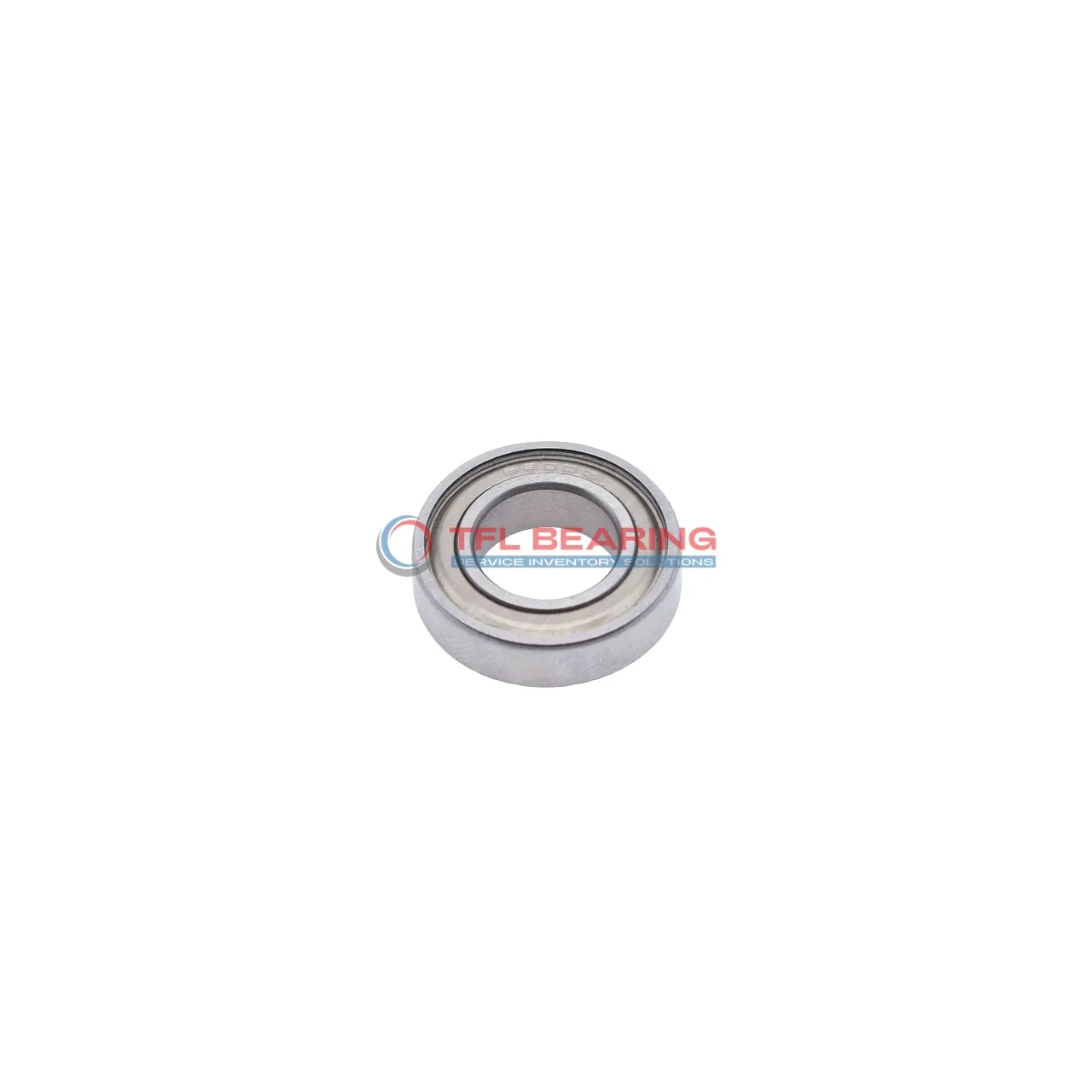

Thin Section Ball Bearings 6813zz

Thin Section Ball Bearings 6813zz

The 6813zz is a thin-section ball bearing with a 65mm bore and 85mm outer diameter, designed for radial loads. Its compact 10mm width makes it ideal for space-constrained applications.

Shielded on both sides, it keeps dust out while maintaining smooth rotation. The chrome steel construction ensures durability, handling dynamic loads up to 2678 lbf.

With a maximum speed of 8600 RPM, it performs well in high-speed scenarios. The bearing operates in temperatures from -30°C to 110°C, suitable for various environments.

Weighing just 126g, it’s lightweight yet robust. Compliant with RoHS and REACH standards, it’s a reliable choice for machinery requiring precision and longevity.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 6813zz
  • Brand TFL
  • Bore Dia 65 mm
  • Bore Dia Tolerance -0.015mm to 0
  • Outer Dia 85 mm
  • Outer Dia Tolerance -0.015mm to 0
  • Width 10 mm
  • Width Tolerance -0.150mm to 0
  • Radial Clearance 0.008mm to 0.028mm
  • System of Measurement Metric
  • Bearing Type Ball
  • For Load Direction Radial
  • Construction Single Row
  • Seal Type Shielded
  • Tolerance Class ABEC-1
  • Radial Clearance Trade No C0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Stainless Steel
  • Dynamic Radial Load 2678 lbf
  • Static Radial Load 2588 lbf
  • Temperature Range -30°C to 110 °C
  • Lubrication Required
  • RoHS Compliant
  • REACH Compliant
  • Max Speed 8600 rpm
  • Weight 126 g
  • Price（$） 2.8
Thin Section Ball Bearings 6813zz dimension drawing
Download DWG Download PDF

Features

How Does 6813zz Bearing Reduce Friction?

6813zz Bearing features a shielded design, protecting against contaminants while maintaining smooth operation.
The chrome steel construction ensures durability and reduces friction during radial load applications.

With a dynamic radial load capacity of 2678 lbf, it handles demanding tasks efficiently.
Its maximum speed of 8,600 rpm makes it suitable for high-speed operations.

The stainless steel cage keeps the balls aligned, minimising wear and extending service life.
Operating between -30°C to 110°C, it performs reliably in varied temperature conditions.

Application

Industrial Uses of 6813zz Bearing
6813zz Bearing is commonly used in conveyor systems, where its thin section design saves space without compromising load capacity. The shielded seals help keep contaminants out, extending the bearing’s life in dusty environments.

What Makes 6813zz Bearing a Preferred Choice?
In robotics, 6813zz Bearing offers smooth rotation for joints and arms, thanks to its precise ABEC-1 tolerance. The chrome steel construction ensures durability even with frequent directional changes.

Built for Heavy-Duty Use: 6813zz Bearing
For packaging machinery, 6813zz Bearing handles radial loads efficiently while maintaining low friction. Its compact width fits neatly into tight spaces, making it ideal for modular equipment designs.

Medical vs Industrial: Where 6813zz Bearing Excels
In medical imaging devices, 6813zz Bearing provides reliable performance with minimal vibration. The stainless steel cage resists corrosion, which is crucial for maintaining hygiene standards.

Automotive vs Aerospace: Applications of 6813zz Bearing
6813zz Bearing works well in vehicle alternators, where its shielded design protects against debris. The metric sizing ensures easy integration with both European and Asian automotive components.
