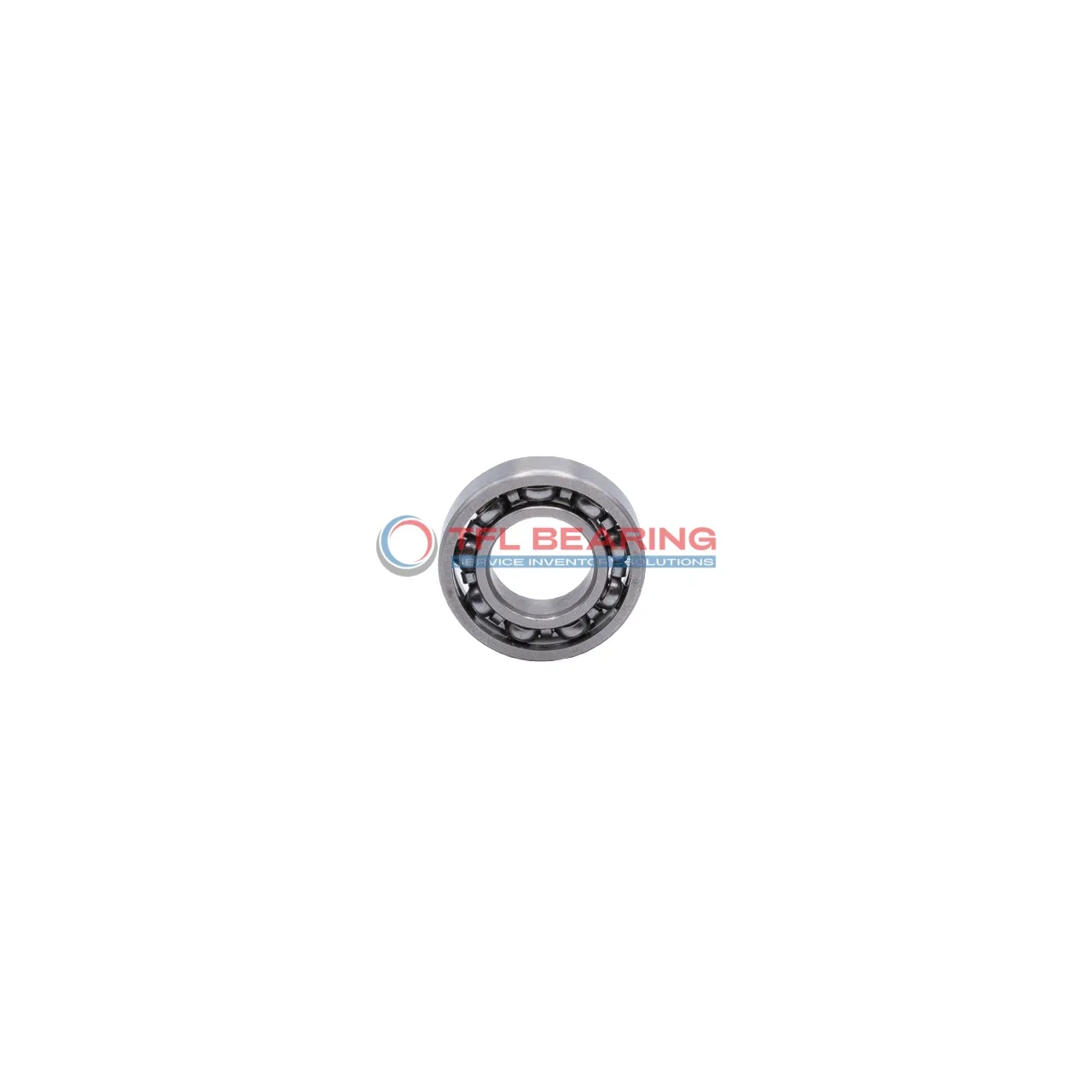

Thin Section Ball Bearings 6807

Thin Section Ball Bearings 6807

The 6807 is a slim radial ball bearing with a 35mm bore and 47mm outer diameter, measuring just 7mm wide. Made from chrome steel with a stainless steel cage, it’s built to handle radial loads up to 1066 lbf.

Its open design allows for easy lubrication, while the ABEC-1 tolerance ensures reliable performance. The bearing can spin at speeds up to 16,000 RPM, making it suitable for fast-moving applications.

With a radial clearance of 0.006mm to 0.020mm, it offers smooth operation. The temperature range of -30°C to 110°C makes it versatile for various environments.

Weighing only 32g, this lightweight bearing is ideal for compact machinery or precision equipment where space is limited. Compliant with RoHS and REACH standards, it’s a safe and durable choice.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 6807
  • Brand TFL
  • Bore Dia 35 mm
  • Bore Dia Tolerance -0.012mm to 0
  • Outer Dia 47 mm
  • Outer Dia Tolerance -0.011mm to 0
  • Width 7 mm
  • Width Tolerance -0.120mm to 0
  • Radial Clearance 0.006mm to 0.020mm
  • System of Measurement Metric
  • Bearing Type Ball
  • For Load Direction Radial
  • Construction Single Row
  • Seal Type Open
  • Tolerance Class ABEC-1
  • Radial Clearance Trade No C0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Stainless Steel
  • Dynamic Radial Load 1066 lbf
  • Static Radial Load 860 lbf
  • Temperature Range -30°C to 110 °C
  • Lubrication Required
  • RoHS Compliant
  • REACH Compliant
  • Max Speed 16000 rpm
  • Weight 32 g
  • Price（$） 2.5
Thin Section Ball Bearings 6807 dimension drawing
Download DWG Download PDF

Features

Performance Features of 6807 Bearing

6807 Bearing is designed with chrome steel rings and balls, offering reliable radial load support.
Its dynamic radial load capacity reaches 1066 lbf, making it suitable for various applications.
The stainless steel cage ensures smooth operation, even at high speeds up to 16,000 rpm.
With a compact size of 35 mm×47 mm×7 mm, it fits well in space-constrained designs.

How Does 6807 Bearing Reduce Friction?

6807 Bearing’s chrome steel construction minimises friction, ensuring smooth and efficient operation.
The ABEC-1 tolerance class provides consistent performance, reducing energy loss.
Its open design allows for easy lubrication, further enhancing its low-friction properties.
With a temperature range of -30°C to 110°C, it maintains performance in varied conditions.

Engineered for Precision: 6807 Bearing

6807 Bearing features a single-row design, optimised for precise radial load handling.
The C0 radial clearance ensures smooth movement, reducing vibration and noise.
Its lightweight construction at just 32 g makes it ideal for applications requiring precision.
The chrome steel components enhance durability, ensuring long-term reliability.

Application

Industrial Uses of 6807 Bearing
6807 Bearing is commonly used in machine tools, where its slim 7mm profile fits into compact spaces without sacrificing radial load capacity. The open design simplifies relubrication, extending service life in dusty workshop conditions.

Where Is 6807 Bearing Used?
You’ll find 6807 Bearing in printer paper feed mechanisms, where its low friction maintains consistent paper movement. The ABEC-1 tolerance provides sufficient precision for most office equipment needs.

Perfect Fit for Automation: 6807 Bearing
In robotic joint assemblies, 6807 Bearing’s chrome steel construction handles moderate loads while keeping weight down. Its 16,000 rpm limit suits most articulated arm applications.

Medical vs Industrial: Where 6807 Bearing Excels
6807 Bearing works well in dental drill handpieces due to its balanced speed and load ratings. For industrial uses, it’s equally at home in small conveyor belt rollers.

Light-Duty vs Heavy-Duty: Best Uses for 6807 Bearing
While 6807 Bearing isn’t for extreme loads, it shines in appliances like food processors where quiet operation matters. The stainless steel cage resists corrosion from occasional moisture exposure.
