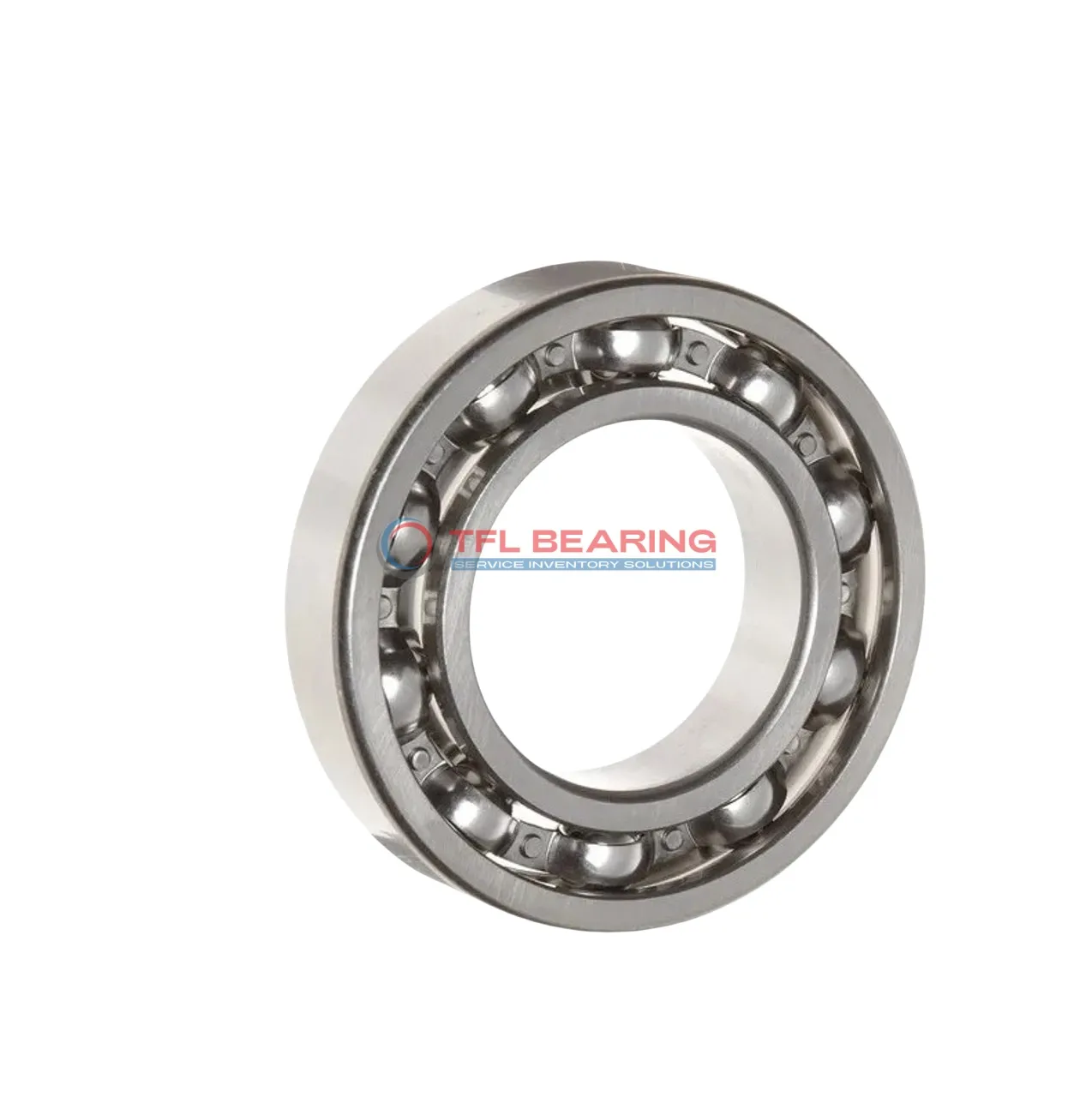

Single Row Deep Groove Ball Bearings 16064 MA

Single Row Deep Groove Ball Bearings 16064 MA

The 16064 MA is a single-row deep groove ball bearing with a 320mm bore and 480mm outer diameter, crafted from sturdy chrome steel. It handles radial loads up to 63171 lbf and operates smoothly at speeds up to 1700 RPM.

Its open design simplifies maintenance, while the stainless steel cage enhances durability. The bearing performs reliably in temperatures ranging from -30°C to 120°C.

This model is interchangeable with SKF bearings, offering a practical replacement option. Suitable for heavy-duty applications like industrial machinery or large equipment where radial loads are predominant.

Weighing 34kg, it’s built for robust performance. Compliant with RoHS and REACH standards for safe and eco-friendly use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 16064 MA
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Open
  • Tolerance Class P6
  • Radial Clearance Trade No CN
  • Bore Dia 320 mm
  • Bore Dia Tolerance -0.03mm to 0
  • Outer Dia 480 mm
  • Outer Dia Tolerance -0.033mm to 0
  • Width 50 mm
  • Width Tolerance -0.4mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Stainless Steel
  • REACH Compliant
  • Temperature Range -30° to 120 °C
  • Dynamic Radial Load 63171 lbf
  • Static Radial Load 91048 lbf
  • Max Speed 1700 rpm
  • Weight 34000 g
  • price（$） 1595.772
Single Row Deep Groove Ball Bearings 16064 MA dimension drawing
Download DWG Download PDF

Features

Performance Features of 16064 MA Bearing

16064 MA Bearing is built with chrome steel rings and balls, offering strong radial load capacity up to 63171 lbf.
Its stainless steel cage ensures smooth operation and reduces wear, even at high speeds.

The open design of 16064 MA Bearing allows for easy lubrication and maintenance.
With a maximum speed of 1,700 rpm, it delivers reliable performance in various applications.

16064 MA Bearing operates efficiently in temperatures ranging from -30° to 120°C.
Its P6 tolerance class ensures precision and consistency in demanding conditions.

Application

Industrial Uses of 16064 MA Bearing
16064 MA Bearing is commonly used in large industrial machinery, such as heavy-duty pumps and compressors, where its robust radial load capacity ensures reliable performance.
The open design allows for easy lubrication, making it suitable for high-temperature environments up to 120°C.

Where Is 16064 MA Bearing Used?
In wind turbines, 16064 MA Bearing supports the main shaft, handling significant radial loads while maintaining smooth rotation.
Its chrome steel construction provides durability in harsh outdoor conditions, ensuring long service life.

Built for Heavy-Duty Use: 16064 MA Bearing
16064 MA Bearing excels in mining equipment, where its high static radial load capacity withstands extreme pressures.
The stainless steel cage adds corrosion resistance, making it ideal for wet or dusty environments.

Automotive vs Aerospace: Applications of 16064 MA Bearing
In automotive applications, 16064 MA Bearing is found in large truck transmissions, offering stability under heavy loads.
For aerospace, its precision tolerance class P6 ensures reliable performance in auxiliary power units.

Practical Applications of 16064 MA Bearing
16064 MA Bearing is a go-to choice for conveyor systems in manufacturing plants, thanks to its high dynamic radial load rating.
The metric dimensions make it compatible with European machinery standards, simplifying replacements.
