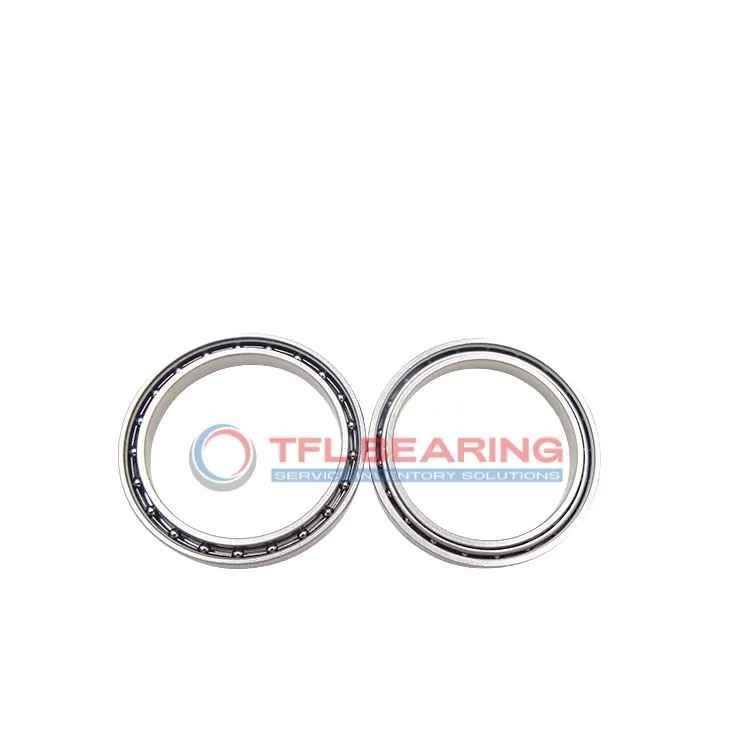

Thin Section Ball Bearings 6806

Thin Section Ball Bearings 6806

The 6806 is a slim, single-row ball bearing with a 30mm bore and 42mm outer diameter, measuring just 7mm wide. Made from chrome steel, it’s lightweight at 27g yet handles radial loads up to 1001 lbf.
Its open design allows for easy lubrication, while the stainless steel cage ensures smooth operation at speeds up to 18,000 RPM. The bearing fits well in tight spaces due to its thin profile.
With a temperature range of -30°C to 110°C, it’s suitable for various environments. Ideal for applications like small motors or precision instruments where space is limited.
Compliant with RoHS and REACH standards, it’s a reliable choice for both new designs and replacements.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 6806
  • Brand TFL
  • Bore Dia 30 mm
  • Bore Dia Tolerance -0.01mm to 0
  • Outer Dia 42 mm
  • Outer Dia Tolerance -0.011mm to 0
  • Width 7 mm
  • Width Tolerance -0.120mm to 0
  • Radial Clearance 0.006mm to 0.020mm
  • System of Measurement Metric
  • Bearing Type Ball
  • For Load Direction Radial
  • Construction Single Row
  • Seal Type Open
  • Tolerance Class ABEC-1
  • Radial Clearance Trade No C0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Stainless Steel
  • Dynamic Radial Load 1001 lbf
  • Static Radial Load 774 lbf
  • Temperature Range -30°C to 110 °C
  • Lubrication Required
  • RoHS Compliant
  • REACH Compliant
  • Max Speed 18000 rpm
  • Weight 27 g
  • Price（$） 2
Thin Section Ball Bearings 6806 dimension drawing
Download DWG Download PDF

Features

Performance Features of 6806 Bearing

6806 Bearing is designed with chrome steel rings and balls, offering reliable radial load support.

Its compact 7 mm width makes it ideal for space-constrained applications without sacrificing performance.

The stainless steel cage ensures smooth operation at speeds up to 18,000 rpm.

With a dynamic radial load capacity of 1001 lbf, it handles demanding tasks efficiently.

Application

Common Applications of 6806 Bearing
6806 Bearing is widely used in industrial equipment like conveyor systems and small machinery, where its slim profile saves space without sacrificing performance. The open design allows for easy lubrication, extending its lifespan in dusty environments.

In automotive applications, 6806 Bearing fits well in compact components such as electric motors and gear mechanisms. Its chrome steel construction ensures reliable operation even under continuous radial loads.

For medical devices, 6806 Bearing’s precision makes it suitable for delicate instruments like lab equipment. The ABEC-1 tolerance guarantees smooth movement, which is essential for accurate readings.

Automation systems benefit from 6806 Bearing’s lightweight design, particularly in robotic arms and 3D printers. The high-speed capability ensures efficient operation without overheating.

At home, you might find 6806 Bearing in appliances like printers or small fans. Its durability and quiet performance make it a practical choice for everyday devices.
