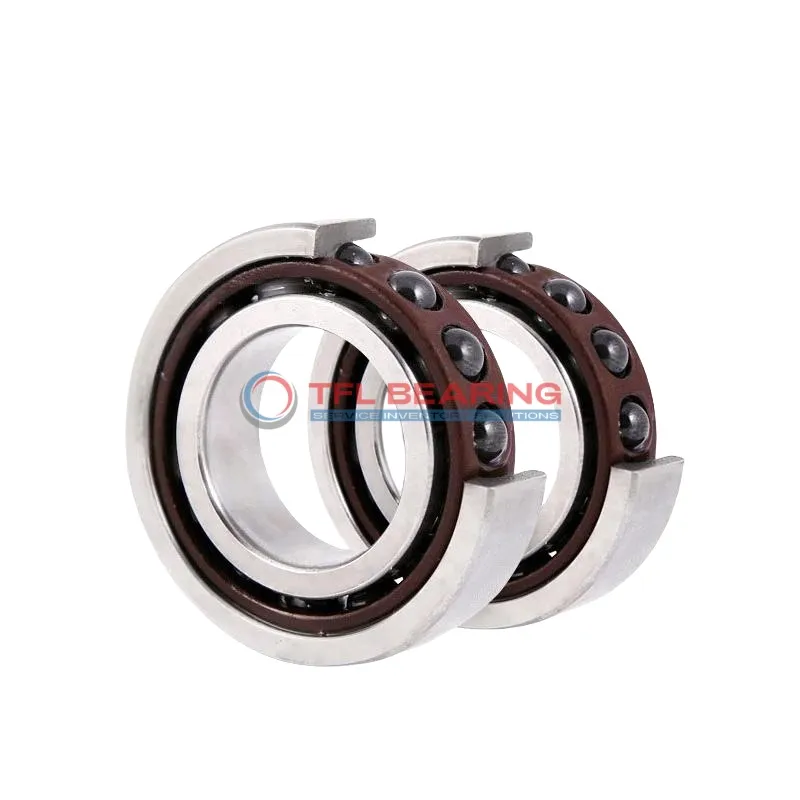

Super Precision Angular Contact Ball Bearings 7205 ACD/HCP4A

Brand: TFL Bearing Interchangeable: SKF 7205 ACD/HCP4A 25 mm × 52 mm × 15 mm Metric Open
Part number: 7205 ACD/HCP4A
Super Precision Angular Contact Ball Bearings 7205 ACD/HCP4A
In Stock
US$54.85 / piece
Reference price · volume pricing on request
Get a Quote WhatsApp
  • ISO 9001 quality system
  • Pre-shipment inspection
  • Lead time confirmed with your quote
Dimensions
Bore Dia25 mm
Bore Dia Tolerance-0.005mm to 0
Outer Dia52 mm
Outer Dia Tolerance-0.007mm to 0
Width15 mm
Width Tolerance-0.2mm to 0
Ball Dia7.938 mm
Performance
PreloadAvailable
Dynamic Radial Load2,925 lbf
Static Radial Load1,564 lbf
Temperature Range-30° to 110 °C
Max Speed48,000 rpm
Characteristics
Ball Qty13
Contact Angle25°
Tolerance ClassP4 (ABEC-7)
System of MeasurementMetric
Seal TypeOpen
Matched ArrangementNo
For Load DirectionAngular Contact
LubricationLubricated
Weight0.11 kg
Material
Ring MaterialChrome Steel
Ball MaterialCeramic
Cage MaterialPhenolic
Dimension drawing · click to enlarge

Description

The 7205 ACD/HCP4A is a super precision angular contact ball bearing with a 25mm bore and 52mm outer diameter, measuring 15mm in width. Made from chrome steel and ceramic balls, it offers smooth operation and durability.

With a 25° contact angle, it handles both radial and thrust loads efficiently, supporting up to 2925 lbf dynamically. It spins at speeds up to 48,000 RPM, ideal for high-performance applications.

The open design and phenolic cage ensure easy maintenance and long service life. Preload availability allows for precise adjustments to suit specific needs.

Perfect for machine tools or high-speed spindles where accuracy is crucial. Compliant with P4 tolerance standards, it’s interchangeable with SKF bearings for easy replacement. Weighing just 0.11kg, it’s lightweight yet robust.

Features

Performance Features of 7205 ACD/HCP4A Bearing

7205 ACD/HCP4A Bearing features a 25° contact angle, optimised for high-precision angular contact applications.
Its chrome steel rings and ceramic balls reduce friction, enhancing speed and durability.

With a dynamic radial load capacity of 2925 lbf, it handles demanding operations smoothly.
The phenolic cage ensures stable performance, even at high speeds up to 48,000 rpm.

Designed for precision, 7205 ACD/HCP4A Bearing meets P4 tolerance standards for reliable accuracy.
Its open design allows easy lubrication, maintaining efficiency in varied temperature conditions.

Application

How Does 7205 ACD/HCP4A Bearing Improve Performance?
7205 ACD/HCP4A Bearing is widely used in high-speed machine tools, where its 25° contact angle ensures smooth operation under angular loads. The ceramic balls reduce friction, making it ideal for precision grinding applications.

In automotive applications, 7205 ACD/HCP4A Bearing supports components like electric motors and turbochargers, thanks to its high-speed capability. The phenolic cage provides stability, even under varying temperatures.

For robotics, 7205 ACD/HCP4A Bearing offers reliable performance in articulated arms and joints, where precision is key. Its P4 tolerance class ensures minimal vibration during high-speed movements.

In medical imaging devices, 7205 ACD/HCP4A Bearing’s chrome steel rings and ceramic balls deliver consistent accuracy. The open design allows for easy lubrication, extending service life in critical applications.
