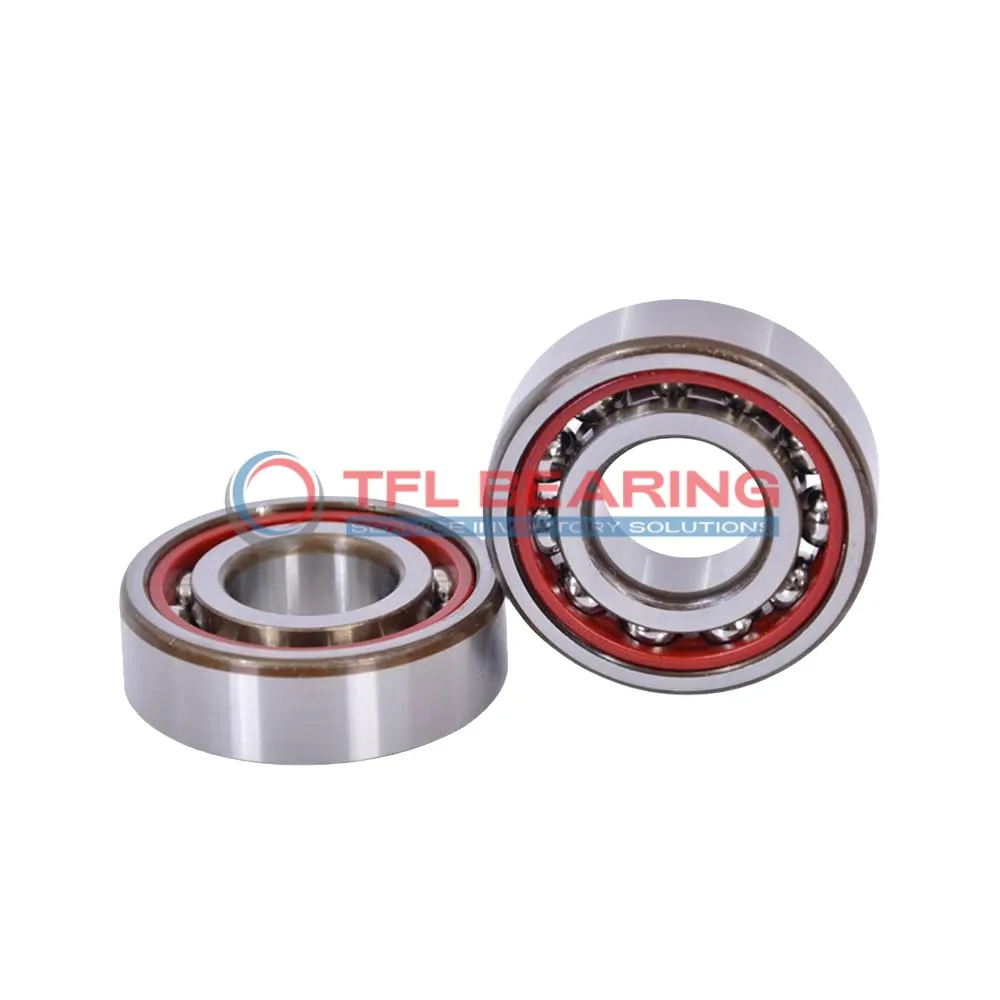

Super Precision Angular Contact Ball Bearings V7001 CEGA/P4A

Brand: TFL Bearing Interchangeable: SKF V7001 CEGA/P4A 12 mm × 28 mm × 8 mm Metric Open
Part number: V7001 CEGA/P4A
Super Precision Angular Contact Ball Bearings V7001 CEGA/P4A
In Stock
Price on request
Send your part number and quantity for a quote
Get a Quote WhatsApp
  • ISO 9001 quality system
  • Pre-shipment inspection
  • Lead time confirmed with your quote
Dimensions
Bore Dia12 mm
Bore Dia Tolerance-0.004mm to 0
Outer Dia28 mm
Outer Dia Tolerance-0.004mm to 0
Width8 mm
Width Tolerance-0.2mm to 0
Ball Dia3.969 mm
Performance
PreloadExtra light / Class A
Dynamic Radial Load718 lbf
Static Radial Load302 lbf
Temperature Range- 30°C to 110 °C
Max Speed0 rpm
Characteristics
Ball Qty12
Contact Angle15°
Tolerance ClassP4A
System of MeasurementMetric
Seal TypeOpen
Matched ArrangementNo
Number Of Bearings In Matched Set2
Universal Matching BearingYes, back-to-back (<>), face-to-face (><) or tandem (>>)
For Load DirectionAngular Contact
LubricationLubricated
Weight0.019 kg
Material
Ring MaterialChrome Steel
Ball MaterialChrome Steel
Cage MaterialPhenolic
Dimension drawing · click to enlarge

Description

The V7001 CEGA/P4A is a super precision angular contact ball bearing with a compact 12mm bore and 28mm outer diameter, crafted from high-quality chrome steel. It features a 15° contact angle and is designed for angular contact loads, handling up to 718 lbf dynamically.

Its open design and phenolic cage ensure smooth operation, while the extra-light preload (Class A) enhances precision. The bearing is lubricated for easy maintenance and performs well in temperatures from -30°C to 110°C.

This model is interchangeable with SKF bearings and comes in a universal matching set, suitable for back-to-back, face-to-face, or tandem arrangements. Ideal for high-precision applications like machine tools or spindle drives.

Weighing just 0.019kg, it’s lightweight yet durable, meeting P4A tolerance standards for reliable performance.

Features

Why Choose V7001 CEGA/P4A Bearing for Precision Tasks?

V7001 CEGA/P4A Bearing features a 15° contact angle, ideal for high-precision angular contact applications.
Its chrome steel construction ensures durability and smooth operation under dynamic radial loads up to 718 lbf.

The phenolic cage maintains ball alignment, reducing friction and enhancing performance.
With a P4A tolerance class, it delivers exceptional accuracy for demanding tasks.

V7001 CEGA/P4A Bearing operates efficiently within a temperature range of -30°C to 110°C.
Its open design allows for easy lubrication, ensuring long-term reliability.

Application

Key Fields for V7001 CEGA/P4A Bearing
V7001 CEGA/P4A Bearing is commonly used in high-precision machine tools, where its 15° contact angle ensures accurate radial and axial load handling. The open design and phenolic cage make it suitable for applications requiring minimal friction.

In robotics, V7001 CEGA/P4A Bearing supports articulated arms and joints, providing smooth movement and durability. Its extra-light preload helps maintain precision in repetitive tasks.

For medical imaging devices, V7001 CEGA/P4A Bearing’s chrome steel construction ensures reliable performance in sensitive environments. The P4A tolerance class guarantees consistent operation in critical applications.

Automotive applications like electric power steering systems benefit from V7001 CEGA/P4A Bearing’s balanced load capacity. Its metric sizing and universal matching options make it versatile for various vehicle designs.

In 3D printers, V7001 CEGA/P4A Bearing’s low-friction design enhances print accuracy. The lightweight construction and high-speed compatibility make it ideal for detailed fabrication tasks.
