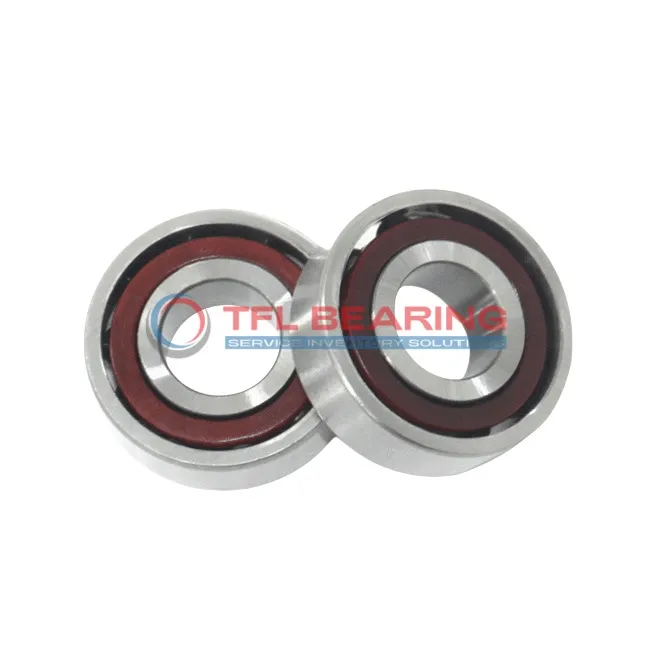

Super Precision Angular Contact Ball Bearings V7014 CEGA/P4A

Brand: TFL Bearing Interchangeable: SKF V7014 CEGA/P4A 70 mm × 110 mm × 20 mm Metric Open
Part number: V7014 CEGA/P4A
Super Precision Angular Contact Ball Bearings V7014 CEGA/P4A
In Stock
Price on request
Send your part number and quantity for a quote
Get a Quote WhatsApp
  • ISO 9001 quality system
  • Pre-shipment inspection
  • Lead time confirmed with your quote
Dimensions
Bore Dia70 mm
Bore Dia Tolerance-0.004mm to 0
Outer Dia110 mm
Outer Dia Tolerance-0.004mm to 0
Width20 mm
Width Tolerance-0.2mm to 0
Ball Dia9.525 mm
Performance
PreloadExtra light / Class A
Dynamic Radial Load5,355 lbf
Static Radial Load4,118 lbf
Temperature Range- 30°C to 110 °C
Max Speed28,000 rpm
Characteristics
Ball Qty25
Contact Angle15°
Tolerance ClassP4A
System of MeasurementMetric
Seal TypeOpen
Matched ArrangementNo
Number Of Bearings In Matched Set2
Universal Matching BearingYes, back-to-back (<>), face-to-face (><) or tandem (>>)
For Load DirectionAngular Contact
LubricationLubricated
Weight0.56 kg
Material
Ring MaterialChrome Steel
Ball MaterialChrome Steel
Cage MaterialPhenolic
Dimension drawing · click to enlarge

Description

The V7014 CEGA/P4A is a super precision angular contact ball bearing with a 70mm bore and 110mm outer diameter, crafted from durable chrome steel. It features a 15° contact angle and is designed for high-speed operations up to 28,000 RPM.

This bearing handles radial loads up to 5355 lbf and comes pre-lubricated for smooth performance. Its phenolic cage ensures stability, while the open design allows for easy maintenance and re-lubrication.

The P4A tolerance class guarantees exceptional precision, making it suitable for demanding applications. It works well in temperatures ranging from -30°C to 110°C and can be paired in back-to-back, face-to-face, or tandem arrangements.

Ideal for high-precision machinery like spindles or CNC equipment, this bearing is interchangeable with SKF models. Weighing 0.56kg, it offers a balance of strength and lightweight design.

Features

Performance Features of V7014 CEGA/P4A Bearing

V7014 CEGA/P4A Bearing is designed with a 15° contact angle, optimising load distribution for angular contact applications.

Its chrome steel rings and balls ensure durability, while the phenolic cage reduces friction for smoother operation.

With a dynamic radial load capacity of 5355 lbf, it handles demanding conditions reliably.

The P4A tolerance class guarantees high precision, making it suitable for critical applications.

Application

Industrial Uses of V7014 CEGA/P4A Bearing
V7014 CEGA/P4A Bearing is commonly used in high-speed machine tools, where its precision angular contact design ensures accurate spindle rotation. The phenolic cage reduces friction, making it suitable for continuous operation.

Where Is V7014 CEGA/P4A Bearing Used?
In automotive applications, V7014 CEGA/P4A Bearing supports wheel hubs and transmission systems, handling both radial and axial loads efficiently. Its extra light preload helps maintain smooth performance under varying conditions.

Optimized for Performance: V7014 CEGA/P4A Bearing
For automation systems, V7014 CEGA/P4A Bearing is ideal for robotic arms and CNC machines, thanks to its high-speed capability and P4A tolerance class. The chrome steel construction ensures long-lasting durability.

Medical vs Industrial: Where V7014 CEGA/P4A Bearing Excels
In medical imaging devices, V7014 CEGA/P4A Bearing provides reliable precision, while in industrial settings, it excels in high-speed compressors and pumps. The open design allows for easy lubrication and maintenance.
