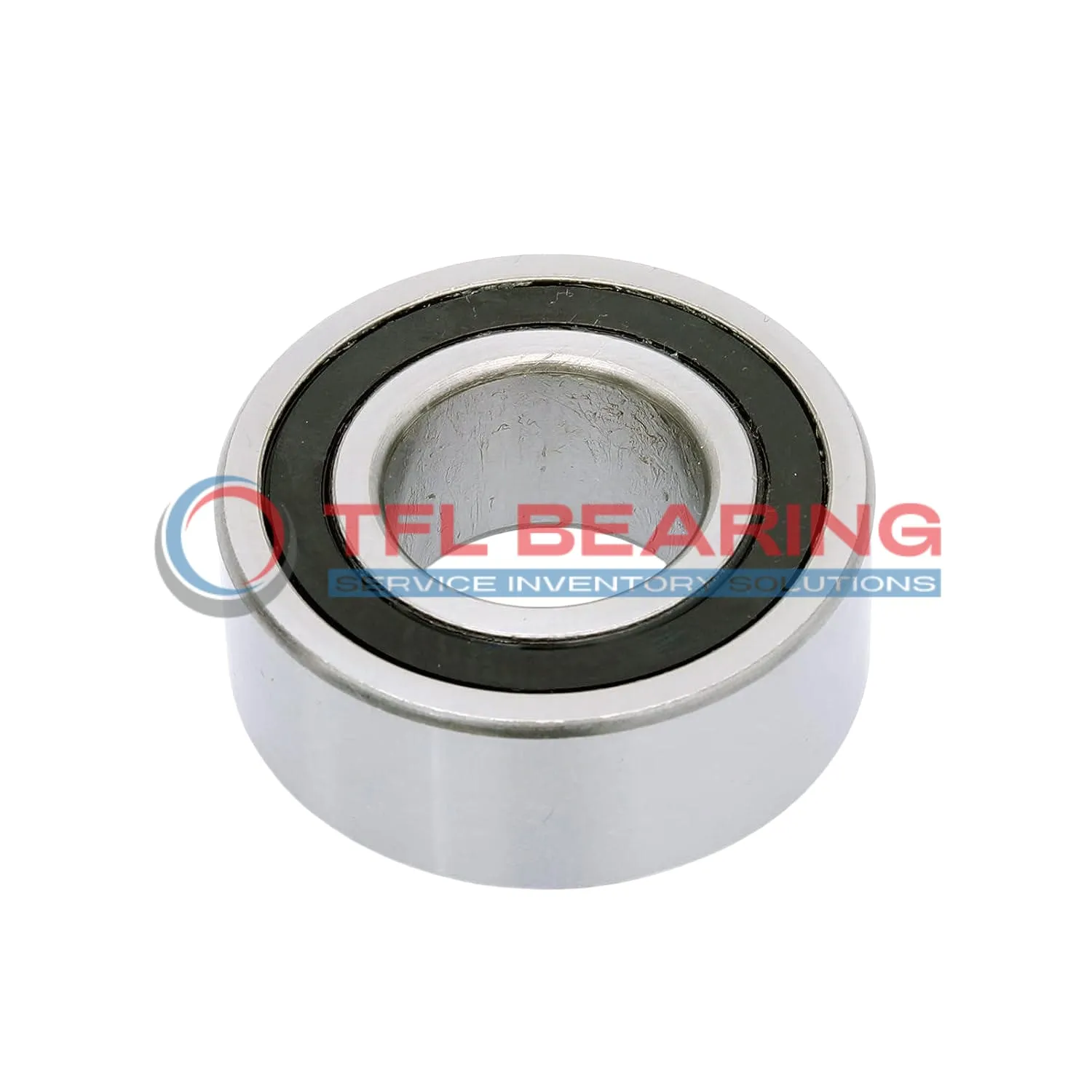

Super Precision Angular Contact Ball Bearings S7206 ACD/P4ADBA

Brand: TFL Bearing Interchangeable: SKF S7206 ACD/P4ADBA 30 mm × 62 mm × 32 mm Metric Sealed
Part number: S7206 ACD/P4ADBA
Super Precision Angular Contact Ball Bearings S7206 ACD/P4ADBA
In Stock
Price on request
Send your part number and quantity for a quote
Get a Quote WhatsApp
  • ISO 9001 quality system
  • Pre-shipment inspection
  • Lead time confirmed with your quote
Dimensions
Bore Dia30 mm
Bore Dia Tolerance-0.004mm to 0
Outer Dia62 mm
Outer Dia Tolerance-0.004mm to 0
Width32 mm
Width Tolerance-0.2mm to 0
Ball Dia9.525 mm
Performance
PreloadExtra light / Class A
Dynamic Radial Load8,482 lbf
Static Radial Load6,862 lbf
Temperature Range- 30°C to 110 °C
Max Speed100,500 rpm
Characteristics
Ball Qty13
Contact Angle25°
Tolerance ClassP4A
System of MeasurementMetric
Seal TypeSealed
Matched Arrangement2 bearings <> DB
Number Of Bearings In Matched Set2
Universal Matching BearingNo
For Load DirectionAngular Contact
LubricationGrease
Weight0.4 kg
Material
Ring MaterialChrome Steel
Ball MaterialChrome Steel
Cage MaterialPhenolic
Dimension drawing · click to enlarge

Description

The S7206 ACD/P4ADBA is a super precision angular contact ball bearing with a 30mm bore and 62mm outer diameter, crafted from durable chrome steel. It features a 25° contact angle and comes sealed for protection, with two bearings arranged back-to-back for stability.

This model handles radial loads up to 8482 lbf and spins smoothly at speeds up to 100,500 RPM. Its phenolic cage ensures quiet operation, while the extra-light preload (Class A) enhances precision.

The sealed design keeps grease in and contaminants out, making it low-maintenance. Ideal for high-speed applications like machine tool spindles or precision instruments where accuracy is key.

Weighing 0.4kg, it’s compact yet robust, with a temperature range of -30°C to 110°C. Compliant with P4A tolerance standards, it’s interchangeable with SKF bearings for easy replacement.

Features

Performance Features of S7206 ACD/P4ADBA Bearing

S7206 ACD/P4ADBA Bearing is designed with a 25° contact angle, optimising load distribution for angular contact applications.
Its chrome steel rings and balls ensure durability and resistance to wear under high-speed conditions.

The sealed design of S7206 ACD/P4ADBA Bearing protects against contaminants, maintaining smooth operation.
With a maximum speed of 100,500 rpm, it is suitable for high-performance machinery.

S7206 ACD/P4ADBA Bearing’s phenolic cage enhances stability and reduces friction during operation.
The extra light preload (Class A) ensures precise alignment and minimal vibration.

This bearing set includes two matched bearings (DB arrangement), providing balanced performance.
Its dynamic radial load capacity of 8482 lbf makes it reliable for demanding applications.

S7206 ACD/P4ADBA Bearing operates efficiently within a temperature range of -30°C to 110°C.
The P4A tolerance class guarantees high precision and consistent performance.

Application

Key Fields for S7206 ACD/P4ADBA Bearing
S7206 ACD/P4ADBA Bearing is widely used in high-speed machine tools, where its precision and angular contact design ensure accurate spindle rotation. The sealed construction keeps contaminants out, extending service life in demanding workshop conditions.

In robotics, S7206 ACD/P4ADBA Bearing provides smooth motion control for articulated arms, thanks to its extra-light preload and matched arrangement. The phenolic cage reduces friction, making it ideal for repetitive movements.

For medical imaging devices like CT scanners, S7206 ACD/P4ADBA Bearing offers reliable performance with minimal vibration. Its chrome steel components withstand continuous operation while maintaining tight tolerances.

In automotive testing equipment, S7206 ACD/P4ADBA Bearing handles both radial and axial loads during durability trials. The grease lubrication ensures consistent performance across a wide temperature range.

Consumer electronics like high-end turntables benefit from S7206 ACD/P4ADBA Bearing’s quiet operation. The P4A tolerance class delivers the precision needed for flawless audio playback.
