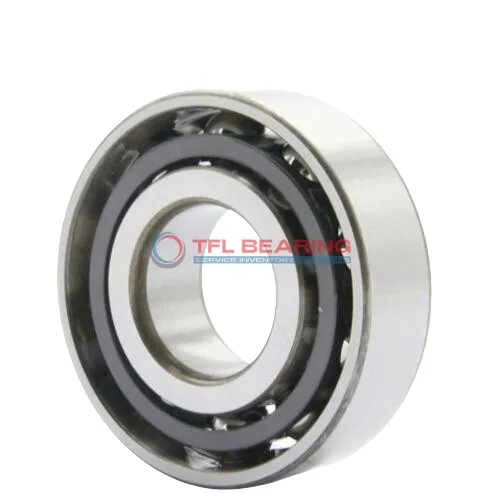

Super Precision Angular Contact Ball Bearings S71907 CB/HCP4ADGA

Super Precision Angular Contact Ball Bearings S71907 CB/HCP4ADGA

The S71907 CB/HCP4ADGA is a super precision angular contact ball bearing with a 35mm bore and 55mm outer diameter, crafted from high-quality chrome steel. Its compact 20mm width makes it suitable for space-sensitive applications.

With a 15° contact angle and ceramic balls, it handles radial loads up to 1872 lbf and spins smoothly at speeds up to 56,000 RPM. The phenolic cage ensures durability while the sealed design keeps grease in and contaminants out.

This bearing is part of a universal matching set, allowing flexible arrangements like back-to-back or face-to-face. Ideal for high-speed machinery, spindles, or precision tools where accuracy is key.

Weighing just 0.15kg, it operates efficiently in temperatures from -30°C to 110°C. Compliant with P4A tolerance standards, it’s interchangeable with SKF bearings for easy replacement.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number S71907 CB/HCP4ADGA
  • Brand TFL
  • Interchangeable SKF
  • Bore Dia 35 mm
  • Bore Dia Tolerance -0.004mm to 0
  • Outer Dia 55 mm
  • Outer Dia Tolerance -0.004mm to 0
  • Width 20 mm
  • Width Tolerance -0.2mm to 0
  • Ball Dia 3.969 mm
  • Ball Qty 25
  • Contact Angle 15°
  • Tolerance Class P4A
  • System of Measurement Metric
  • Seal Type Sealed
  • Matched Arrangement Universal matching
  • Number Of Bearings In Matched Set 2
  • Universal Matching Bearing Yes, back-to-back (<>), face-to-face (><) or tandem (>>)
  • Preload Extra light / Class A
  • For Load Direction Angular Contact
  • Ring Material Chrome Steel
  • Ball Material Ceramic
  • Cage Material Phenolic
  • Dynamic Radial Load 1872 lbf
  • Static Radial Load 1654 lbf
  • Lubrication Grease
  • Temperature Range - 30°C to 110 °C
  • Max Speed 56000 rpm
  • Weight 0.15 kg
Super Precision Angular Contact Ball Bearings S71907 CB/HCP4ADGA dimension drawing
Download DWG Download PDF

Features

Performance Features of S71907 CB/HCP4ADGA Bearing

S71907 CB/HCP4ADGA Bearing is crafted with chrome steel rings and ceramic balls, offering high precision and durability.
Its 15° contact angle ensures optimal load distribution, making it suitable for angular contact applications.

The phenolic cage maintains ball alignment, reducing friction and enhancing performance.
With a dynamic radial load capacity of 1872 lbf, it handles demanding tasks efficiently.

S71907 CB/HCP4ADGA Bearing operates at speeds up to 56,000 rpm, ideal for high-speed machinery.
Its sealed design and grease lubrication minimise maintenance needs, ensuring long-term reliability.

The universal matching feature allows flexible arrangement options, including back-to-back and face-to-face setups.
This versatility makes it a practical choice for various industrial applications.

Application

Common Applications of S71907 CB/HCP4ADGA Bearing
S71907 CB/HCP4ADGA Bearing is widely used in high-speed machine tools, where its precision and ceramic balls ensure smooth operation. The sealed design keeps contaminants out, extending bearing life in demanding environments.

In robotics, S71907 CB/HCP4ADGA Bearing provides reliable angular contact support for mechanical arms, thanks to its universal matching capability. The phenolic cage reduces friction, making it ideal for repetitive movements.

For medical imaging devices, S71907 CB/HCP4ADGA Bearing’s P4A tolerance class guarantees the accuracy needed for sensitive equipment. Its grease lubrication ensures quiet operation, crucial in hospital settings.

Automotive applications like electric vehicle motors benefit from S71907 CB/HCP4ADGA Bearing’s high-speed performance and extra light preload. The chrome steel rings offer durability under constant angular loads.

In aerospace systems, S71907 CB/HCP4ADGA Bearing’s temperature range and ceramic balls make it suitable for both extreme cold and moderate heat conditions. The matched set design simplifies installation in complex assemblies.
