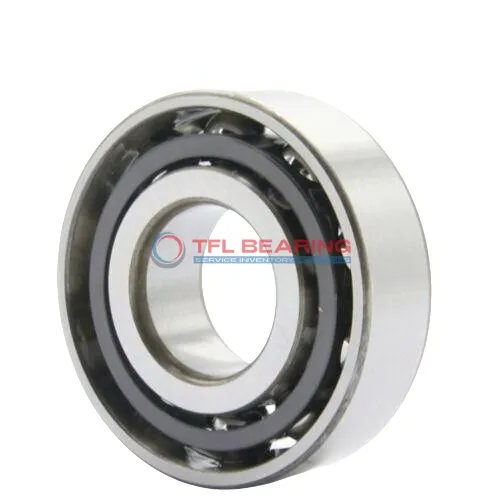

Super Precision Angular Contact Ball Bearings S71907 ACB/HCP4A

Brand: TFL Bearing Interchangeable: SKF S71907 ACB/HCP4A 35 mm × 55 mm × 10 mm Metric Sealed
Part number: S71907 ACB/HCP4A
Super Precision Angular Contact Ball Bearings S71907 ACB/HCP4A
In Stock
US$37.43 / piece
Reference price · volume pricing on request
Get a Quote WhatsApp
  • ISO 9001 quality system
  • Pre-shipment inspection
  • Lead time confirmed with your quote
Dimensions
Bore Dia35 mm
Bore Dia Tolerance-0.006mm to 0
Outer Dia55 mm
Outer Dia Tolerance-0.007mm to 0
Width10 mm
Width Tolerance-0.2mm to 0
Ball Dia3.969 mm
Performance
PreloadAvailable
Dynamic Radial Load1,098 lbf
Static Radial Load776 lbf
Temperature Range-30° to 110 °C
Max Speed36,000 rpm
Characteristics
Ball Qty25
Contact Angle25°
Tolerance ClassP4 (ABEC-7)
System of MeasurementMetric
Seal TypeSealed
Matched ArrangementAvailable
For Load DirectionAngular Contact
LubricationLubricated
Weight0.077 kg
Material
Ring MaterialChrome Steel
Ball MaterialCeramic
Cage MaterialPhenolic
Dimension drawing · click to enlarge

Description

The S71907 ACB/HCP4A is a super precision angular contact ball bearing with a 35mm bore and 55mm outer diameter, crafted from chrome steel for durability. It features a 25° contact angle and ceramic balls for smooth operation.

This sealed bearing handles radial loads up to 1098 lbf and spins at speeds up to 36,000 RPM, making it suitable for high-performance applications. Its phenolic cage ensures quiet and efficient running.

Preload and matched arrangements are available for enhanced stability in demanding setups. Ideal for precision machinery like spindles or CNC equipment where accuracy is key.

Weighing just 0.077kg, it’s lightweight yet robust. Compliant with P4 (ABEC-7) tolerance standards, it operates reliably in temperatures from -30°C to 110°C.

The S71907 ACB/HCP4A is a sealed angular contact bearing with a compact 35mm×55mm×10mm size, designed for precision applications. Its ceramic balls reduce friction and wear.

It supports dynamic radial loads of 1098 lbf and static loads of 776 lbf, with a maximum speed of 36,000 RPM. The phenolic cage adds to its durability and quiet performance.

Available with preload and matched arrangements, this bearing is perfect for high-speed spindles or robotics. Its sealed design keeps lubrication in and contaminants out.

With a P4 (ABEC-7) tolerance class, it ensures high accuracy. The bearing works well in temperatures ranging from -30°C to 110°C, making it versatile for various environments.

This angular contact bearing measures 35mm×55mm×10mm and is built for precision with chrome steel rings and ceramic balls. The 25° contact angle optimises load distribution.

It handles speeds up to 36,000 RPM and radial loads up to 1098 lbf, thanks to its robust design. The sealed construction protects against dust and moisture.

Preload options and matched sets are available for applications requiring extra stability, such as machine tools or medical devices. The phenolic cage ensures smooth operation.

Weighing only 0.077kg, it’s lightweight yet strong. Compliant with P4 (ABEC-7) standards, it performs reliably in temperatures from -30°C to 110°C.

Features

Performance Features of S71907 ACB/HCP4A Bearing

S71907 ACB/HCP4A Bearing is designed with a 25° contact angle, optimising load distribution for angular contact applications.
Its chrome steel rings and ceramic balls enhance durability while reducing friction for smoother operation.

The phenolic cage maintains ball alignment, ensuring consistent performance even at high speeds up to 36,000 rpm.
With a dynamic radial load capacity of 1098 lbf, it handles demanding conditions reliably.

S71907 ACB/HCP4A Bearing operates efficiently within a temperature range of -30° to 110°C, suitable for various environments.
Its sealed design and preload availability further enhance its precision and longevity.

Application

Ideal for Precision: S71907 ACB/HCP4A Bearing
S71907 ACB/HCP4A Bearing is commonly used in high-speed machine tools, where its angular contact design ensures accurate spindle rotation. The ceramic balls reduce friction, making it suitable for prolonged operations.

In robotics, S71907 ACB/HCP4A Bearing provides smooth motion control for articulated arms, thanks to its phenolic cage and sealed design. The P4 tolerance class guarantees consistent performance in automated systems.

For medical imaging devices, S71907 ACB/HCP4A Bearing’s chrome steel rings offer durability, while the ceramic balls minimise heat generation. This combination is ideal for precision instruments requiring quiet operation.

Automotive vs Aerospace: Applications of S71907 ACB/HCP4A Bearing
In automotive applications, S71907 ACB/HCP4A Bearing supports electric motor shafts, where its high-speed capability is beneficial. The sealed design also protects against contaminants.

Aerospace systems rely on S71907 ACB/HCP4A Bearing for flight control mechanisms, due to its lightweight construction and reliability. The matched arrangement option ensures precise alignment in critical assemblies.
