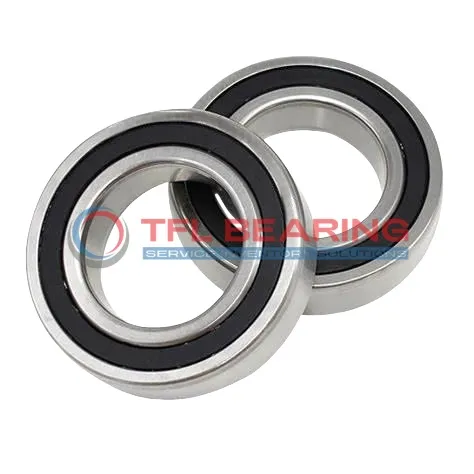

Super Precision Angular Contact Ball Bearings S7014 CE/P4BVG275

Super Precision Angular Contact Ball Bearings S7014 CE/P4BVG275

The S7014 CE/P4BVG275 is a super precision angular contact ball bearing with a 70mm bore and 110mm outer diameter, crafted from high-grade chrome steel. It handles radial loads up to 5355 lbf and operates smoothly at speeds up to 17,000 RPM.

Its sealed design keeps lubrication in and contaminants out, while the phenolic cage ensures quiet, durable performance. The 15° contact angle provides excellent stability for angular loads.

This bearing is available with preload and matched arrangements, making it ideal for high-precision applications like machine tool spindles or robotics. It meets P4 tolerance standards for exceptional accuracy.

Weighing 0.64kg, it’s suitable for use in temperatures from -30°C to 110°C. Interchangeable with SKF bearings, it offers a reliable solution for demanding industrial environments.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number S7014 CE/P4BVG275
  • Brand TFL
  • Interchangeable SKF
  • Bore Dia 70 mm
  • Bore Dia Tolerance -0.007mm to 0
  • Outer Dia 110 mm
  • Outer Dia Tolerance -0.008mm to 0
  • Width 20 mm
  • Width Tolerance -0.2mm to 0
  • Ball Dia 9.525 mm
  • Ball Qty 25
  • Contact Angle 15°
  • Tolerance Class P4 (ABEC-7)
  • System of Measurement Metric
  • Seal Type Sealed
  • Matched Arrangement Available
  • Preload Available
  • For Load Direction Angular Contact
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Phenolic
  • Dynamic Radial Load 5355 lbf
  • Static Radial Load 4118 lbf
  • Lubrication Lubricated
  • Temperature Range -30° to 110 °C
  • Max Speed 17000 rpm
  • Weight 0.64 kg
  • Price（$） 562.482
Super Precision Angular Contact Ball Bearings S7014 CE/P4BVG275 dimension drawing
Download DWG Download PDF

Features

Why Choose S7014 CE/P4BVG275 Bearing for Precision Tasks?

S7014 CE/P4BVG275 Bearing features a 15° contact angle, optimised for high-precision angular contact applications.
Its chrome steel rings and balls ensure durability, while the phenolic cage reduces friction and noise.

With a dynamic radial load capacity of 5355 lbf, it handles demanding operations smoothly.
The P4 tolerance class guarantees exceptional accuracy, making it ideal for precision machinery.

Sealed and preloaded options are available, enhancing performance and longevity.
It operates at speeds up to 17,000 rpm, maintaining reliability in high-speed environments.

Application

Industrial Uses of S7014 CE/P4BVG275 Bearing
S7014 CE/P4BVG275 Bearing is commonly used in high-precision machine tools, where its 15° contact angle ensures accurate radial and axial load handling. The sealed design keeps contaminants out, extending service life in demanding environments.

In robotics, S7014 CE/P4BVG275 Bearing supports smooth motion in articulated arms, thanks to its phenolic cage reducing friction. Its P4 tolerance class makes it ideal for applications requiring minimal vibration.

For automotive applications, S7014 CE/P4BVG275 Bearing excels in wheel hubs and transmissions, where its high-speed capability and durability are key. The chrome steel construction ensures reliable performance under heavy loads.

Medical imaging devices benefit from S7014 CE/P4BVG275 Bearing’s precision and low noise operation. The lubricated design ensures consistent performance in sensitive equipment.

In aerospace systems, S7014 CE/P4BVG275 Bearing’s matched arrangement and preload options provide stability in critical components. Its lightweight design helps reduce overall system weight.
