Stainless Steel Deep Groove Ball Bearings W 61806-2Z

Stainless Steel Deep Groove Ball Bearings W 61806-2Z

The W 61806-2Z is a compact stainless steel deep groove ball bearing, measuring 30mm by 42mm by 7mm. It handles radial loads up to 805 lbf and spins smoothly at speeds up to 17000 RPM.

Its shielded design keeps dirt out while retaining grease, making it low-maintenance. The all-stainless construction resists corrosion, ideal for damp or harsh environments.

This bearing suits small machinery like electric motors or medical devices where space is limited. It works in temperatures from -30°C to 120°C and is interchangeable with SKF models.

Weighing just 23 grams, it’s lightweight yet durable. Compliant with RoHS and REACH standards for safe use in various industries.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number W 61806-2Z
  • Brand TFL
  • Interchangeable SKF
  • Bore Dia 30 mm
  • Bore Dia Tolerance -0.01mm to 0
  • Outer Dia 42 mm
  • Outer Dia Tolerance -0.011mm to 0
  • Width 7 mm
  • Width Tolerance -0.12mm to 0
  • System of Measurement Metric
  • Bearing Type Ball
  • For Load Direction Radial
  • Construction Single Row
  • Seal Type Shielded
  • Tolerance Class P0
  • Radial Clearance Trade No CN
  • Ring Material Stainless Steel
  • Ball Material Stainless Steel
  • Cage Material Stainless Steel
  • Dynamic Radial Load 805 lbf
  • Static Radial Load 652 lbf
  • Temperature Range -30° to 120 °C
  • Lubrication Grease
  • RoHS Compliant
  • REACH Compliant
  • Max Speed 17000 rpm
  • Weight 0.023 kg

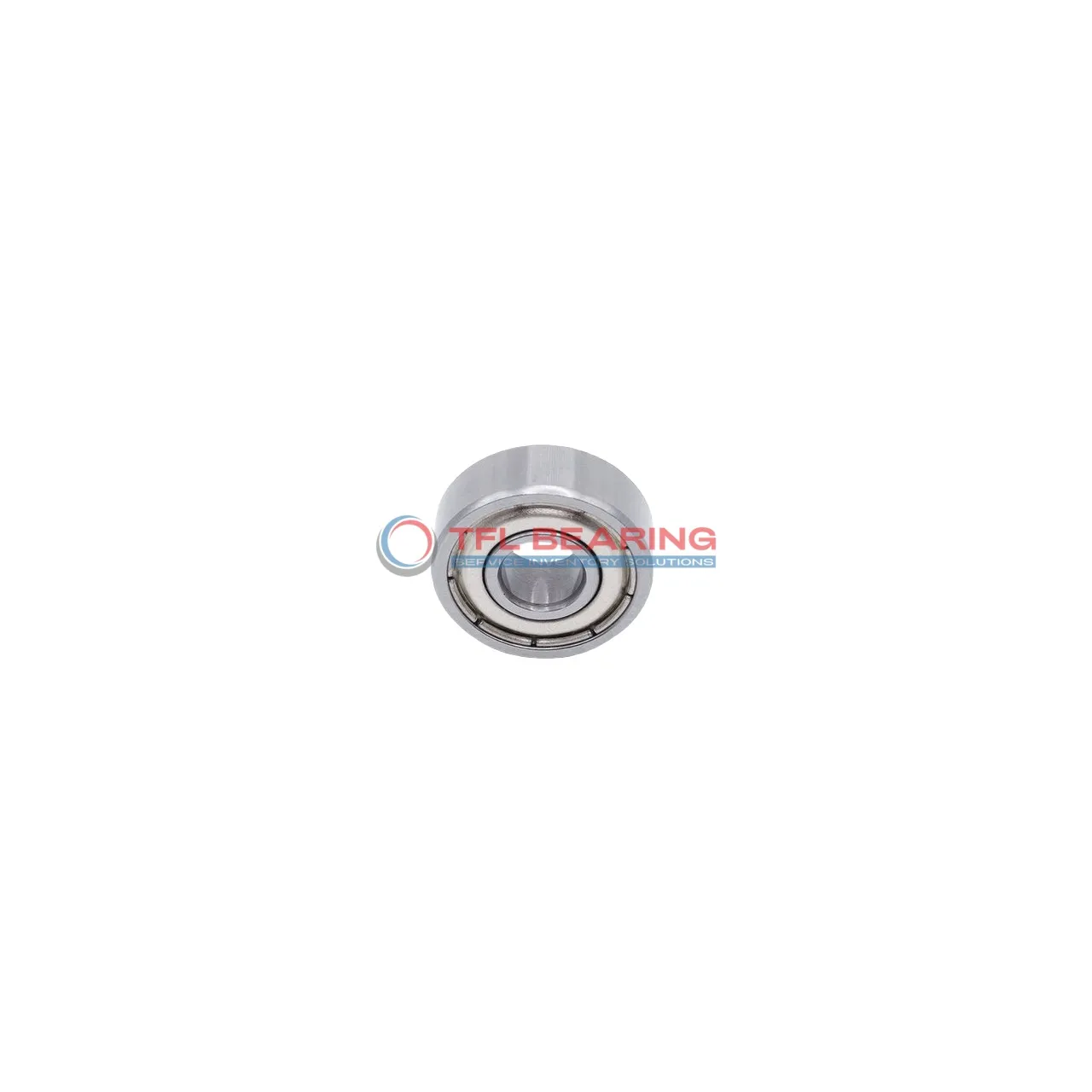

Stainless Steel Deep Groove Ball Bearings W 61806-2Z dimension drawing
Download DWG Download PDF

Features

How Does W 61806-2Z Bearing Reduce Friction?

W 61806-2Z Bearing features stainless steel construction, ensuring smooth operation with minimal friction.
Its shielded design keeps contaminants out, maintaining consistent performance over time.
The single-row deep groove design efficiently handles radial loads up to 805 lbf.
With a maximum speed of 17,000 rpm, it offers reliable performance in various applications.

Application

Industrial Uses of W 61806-2Z Bearing
W 61806-2Z Bearing is commonly used in conveyor systems and small machinery, where its compact size and shielded design help keep out contaminants. The stainless steel construction makes it suitable for environments where corrosion resistance is needed.

How Does W 61806-2Z Bearing Improve Performance?
In automotive applications like electric motors, W 61806-2Z Bearing provides smooth rotation and long service life. Its grease lubrication ensures quiet operation, even at higher speeds.

Perfect Fit for Automation: W 61806-2Z Bearing
This bearing works well in robotic arms and precision equipment, thanks to its consistent performance and low friction. The metric sizing makes it easy to integrate into various automated systems.

Medical vs Industrial: Where W 61806-2Z Bearing Excels
W 61806-2Z Bearing is reliable in medical devices like dental tools, where hygiene and durability matter. It’s also a solid choice for industrial pumps, handling radial loads with ease.
