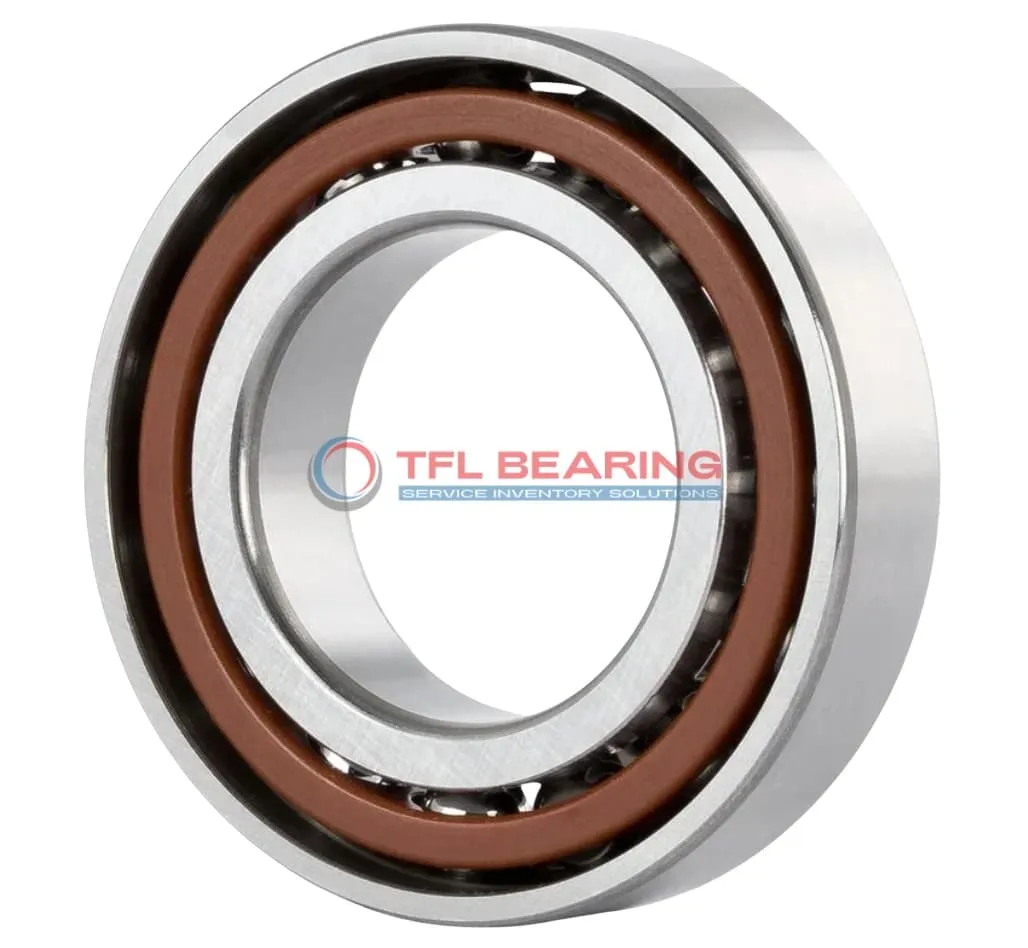

Super Precision Angular Contact Ball Bearings S7006 FE/HCP4ADT

Super Precision Angular Contact Ball Bearings S7006 FE/HCP4ADT

The S7006 FE/HCP4ADT is a super precision angular contact ball bearing, measuring 30mm by 55mm by 26mm. Made from chrome steel with ceramic balls, it offers smooth operation and durability.

With a contact angle of 18°, it handles radial loads up to 3398 lbf and spins at speeds up to 100,500 RPM. The sealed design keeps grease in and contaminants out, ensuring long service life.

This matched set of two bearings comes with preload for better stability. Ideal for high-speed applications like machine tool spindles or precision instruments.

Weighing just 0.21kg, it meets P4A tolerance standards for exceptional accuracy. Works in temperatures from -30°C to 110°C.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number S7006 FE/HCP4ADT
  • Brand TFL
  • Interchangeable SKF
  • Bore Dia 30 mm
  • Bore Dia Tolerance -0.004mm to 0
  • Outer Dia 55 mm
  • Outer Dia Tolerance -0.004mm to 0
  • Width 26 mm
  • Width Tolerance -0.2mm to 0
  • Ball Dia 6.35 mm
  • Ball Qty 17
  • Contact Angle 18°
  • Tolerance Class P4A
  • System of Measurement Metric
  • Seal Type Sealed
  • Matched Arrangement 2 bearings << DT
  • Number Of Bearings In Matched Set 2
  • Universal Matching Bearing No
  • Preload Available
  • For Load Direction Angular Contact
  • Ring Material Chrome Steel
  • Ball Material Ceramic
  • Cage Material Phenolic
  • Dynamic Radial Load 3398 lbf
  • Static Radial Load 2340 lbf
  • Lubrication Grease
  • Temperature Range - 30°C to 110 °C
  • Max Speed 100500 rpm
  • Weight 0.21 kg
Super Precision Angular Contact Ball Bearings S7006 FE/HCP4ADT dimension drawing
Download DWG Download PDF

Features

Performance Features of S7006 FE/HCP4ADT Bearing

S7006 FE/HCP4ADT Bearing is designed with a 18° contact angle, optimising load distribution for angular contact applications.
The ceramic balls reduce friction, enhancing speed capabilities up to 100,500 rpm.

Its phenolic cage ensures smooth operation, even at high speeds, while maintaining alignment.
The sealed design protects against contaminants, extending service life in demanding conditions.

With a dynamic radial load capacity of 3398 lbf, S7006 FE/HCP4ADT Bearing handles heavy loads reliably.
The chrome steel rings and ceramic balls provide durability and resistance to wear.

Preload availability ensures precise performance, making it suitable for high-precision tasks.
Its compact size (30 mm×55 mm×26 mm) allows for efficient use in space-constrained applications.

Application

Industrial Uses of S7006 FE/HCP4ADT Bearing
S7006 FE/HCP4ADT Bearing is commonly used in high-speed machine tools, where its precision and angular contact design ensure accurate spindle rotation. The ceramic balls reduce friction, making it ideal for applications demanding smooth operation.

In automotive systems, S7006 FE/HCP4ADT Bearing supports components like electric motors and gearboxes, where its sealed design protects against contaminants. The matched arrangement with preload enhances stability in high-performance vehicles.

For medical imaging devices, S7006 FE/HCP4ADT Bearing’s phenolic cage and chrome steel rings provide reliable performance in sensitive equipment. Its low tolerance class ensures minimal vibration, crucial for clear imaging results.

Perfect Fit for Automation: S7006 FE/HCP4ADT Bearing
S7006 FE/HCP4ADT Bearing excels in robotic arms, where its high-speed capability and precision are essential for repetitive tasks. The grease lubrication ensures long service life even in continuous operation.

In 3D printers, S7006 FE/HCP4ADT Bearing’s angular contact design supports precise linear motion, improving print quality. The sealed construction keeps out dust, maintaining performance in various environments.
