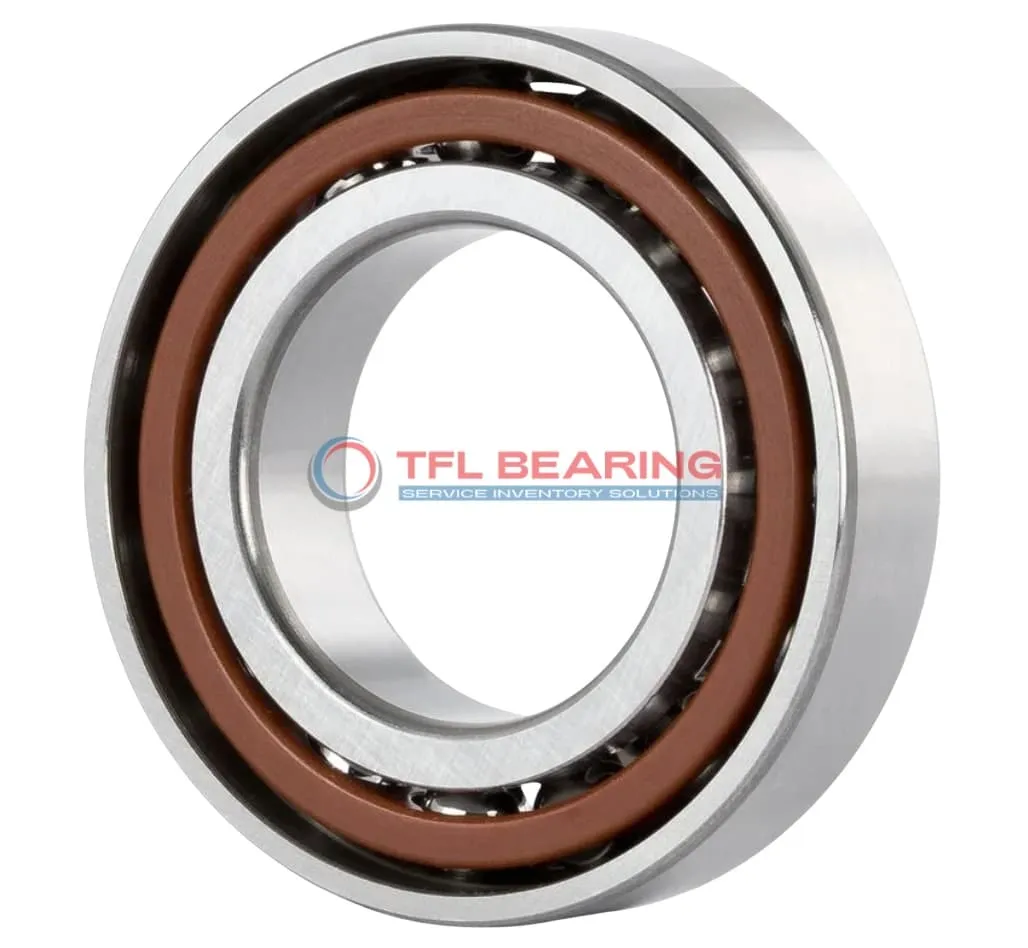

Super Precision Angular Contact Ball Bearings S7006 CE/HCP4ADGB

Super Precision Angular Contact Ball Bearings S7006 CE/HCP4ADGB

The S7006 CE/HCP4ADGB is a super precision angular contact ball bearing with a 30mm bore and 55mm outer diameter, designed for high-speed applications. Its 15° contact angle and ceramic balls ensure smooth operation under radial loads up to 3398 lbf.

The sealed design keeps grease in and contaminants out, while the phenolic cage offers durability. It can handle speeds up to 100,500 RPM and temperatures from -30°C to 110°C.

This bearing comes in a matched set of two, allowing universal mounting in back-to-back, face-to-face, or tandem configurations. Ideal for machine tools or high-precision spindles where accuracy is key.

Weighing just 0.21kg, it meets P4A tolerance standards for exceptional performance. Interchangeable with SKF bearings for easy replacement.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number S7006 CE/HCP4ADGB
  • Brand TFL
  • Interchangeable SKF
  • Bore Dia 30 mm
  • Bore Dia Tolerance -0.004mm to 0
  • Outer Dia 55 mm
  • Outer Dia Tolerance -0.004mm to 0
  • Width 26 mm
  • Width Tolerance -0.2mm to 0
  • Ball Dia 6.35 mm
  • Ball Qty 17
  • Contact Angle 15°
  • Tolerance Class P4A
  • System of Measurement Metric
  • Seal Type Sealed
  • Matched Arrangement Universal matching
  • Number Of Bearings In Matched Set 2
  • Universal Matching Bearing Yes, back-to-back (<>), face-to-face (><) or tandem (>>)
  • Preload Light / Class B
  • For Load Direction Angular Contact
  • Ring Material Chrome Steel
  • Ball Material Ceramic
  • Cage Material Phenolic
  • Dynamic Radial Load 3398 lbf
  • Static Radial Load 2340 lbf
  • Lubrication Grease
  • Temperature Range - 30°C to 110 °C
  • Max Speed 100500 rpm
  • Weight 0.21 kg
Super Precision Angular Contact Ball Bearings S7006 CE/HCP4ADGB dimension drawing
Download DWG Download PDF

Features

Performance Features of S7006 CE/HCP4ADGB Bearing

S7006 CE/HCP4ADGB Bearing is designed with a 15° contact angle, optimising load distribution for angular contact applications.

The ceramic balls and chrome steel rings enhance durability while reducing friction for smoother operation.

With a dynamic radial load capacity of 3398 lbf, it handles demanding conditions with reliability.

Its sealed design and grease lubrication ensure consistent performance even at high speeds up to 100,500 rpm.

Application

Common Applications of S7006 CE/HCP4ADGB Bearing
S7006 CE/HCP4ADGB Bearing is widely used in high-speed machine tools, where its ceramic balls and phenolic cage reduce friction and heat buildup. The sealed design keeps contaminants out, ensuring long-lasting performance in demanding environments.

In robotics, S7006 CE/HCP4ADGB Bearing provides smooth motion control for precision tasks, thanks to its angular contact design and light preload. Its universal matching feature allows flexible arrangement in complex robotic arms.

For medical imaging devices, S7006 CE/HCP4ADGB Bearing’s P4A tolerance class ensures the accuracy needed for sensitive diagnostic equipment. The grease lubrication and temperature range make it reliable for continuous operation in clinical settings.

Automotive applications like electric vehicle motors benefit from S7006 CE/HCP4ADGB Bearing’s high-speed capability and low maintenance requirements. The chrome steel rings and ceramic balls handle both radial and axial loads efficiently.

In 3D printers, S7006 CE/HCP4ADGB Bearing’s precision and smooth rotation contribute to consistent print quality. The matched set design simplifies installation and alignment in compact printer mechanisms.
