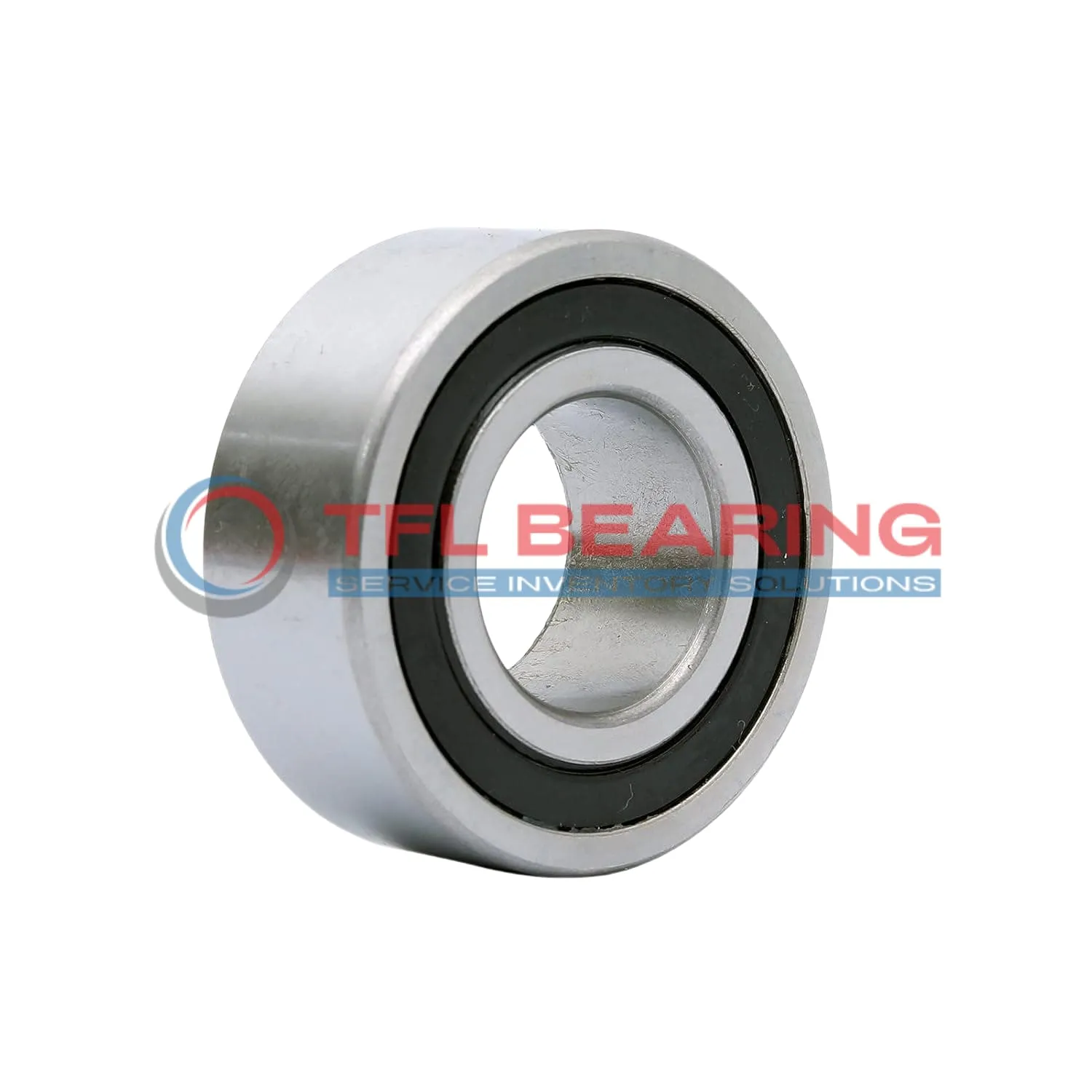

Super Precision Angular Contact Ball Bearings S7006 CD/P4ADGB

Brand: TFL Bearing Interchangeable: SKF S7006 CD/P4ADGB 30 mm × 55 mm × 26 mm Metric Sealed
Part number: S7006 CD/P4ADGB
Super Precision Angular Contact Ball Bearings S7006 CD/P4ADGB
In Stock
Price on request
Send your part number and quantity for a quote
Get a Quote WhatsApp
  • ISO 9001 quality system
  • Pre-shipment inspection
  • Lead time confirmed with your quote
Dimensions
Bore Dia30 mm
Bore Dia Tolerance-0.004mm to 0
Outer Dia55 mm
Outer Dia Tolerance-0.004mm to 0
Width26 mm
Width Tolerance-0.2mm to 0
Ball Dia7.938 mm
Performance
PreloadLight / Class B
Dynamic Radial Load5,265 lbf
Static Radial Load3,600 lbf
Temperature Range- 30°C to 110 °C
Max Speed100,500 rpm
Characteristics
Ball Qty14
Contact Angle15°
Tolerance ClassP4A
System of MeasurementMetric
Seal TypeSealed
Matched ArrangementUniversal matching
Number Of Bearings In Matched Set2
Universal Matching BearingYes, back-to-back (<>), face-to-face (><) or tandem (>>)
For Load DirectionAngular Contact
LubricationGrease
Weight0.23 kg
Material
Ring MaterialChrome Steel
Ball MaterialChrome Steel
Cage MaterialPhenolic
Dimension drawing · click to enlarge

Description

The S7006 CD/P4ADGB is a super precision angular contact ball bearing with a 30mm bore and 55mm outer diameter, crafted from durable chrome steel. It handles radial loads up to 5265 lbf and spins smoothly at speeds up to 100,500 RPM.

Its sealed design keeps grease in and contaminants out, while the phenolic cage ensures quiet, long-lasting performance. The bearing operates reliably in temperatures from -30°C to 110°C.

This model is universally matched, allowing flexible arrangements like back-to-back or face-to-face. Ideal for high-precision applications like machine tools or spindles where accuracy is key.

Weighing just 0.23kg, it’s lightweight yet robust. Compliant with P4A tolerance standards for exceptional precision.

Features

How Does S7006 CD/P4ADGB Bearing Achieve Super Precision?

S7006 CD/P4ADGB Bearing features a 15° contact angle, optimised for high-precision angular contact applications.
Its chrome steel rings and balls ensure durability, while the phenolic cage reduces friction for smoother operation.

With a dynamic radial load capacity of 5265 lbf, S7006 CD/P4ADGB Bearing handles demanding conditions reliably.
The sealed design and grease lubrication extend service life, even at speeds up to 100,500 rpm.

S7006 CD/P4ADGB Bearing is universally matched, allowing flexible arrangements like back-to-back or face-to-face mounting.
Its P4A tolerance class guarantees exceptional accuracy for precision machinery.

Application

Industrial Uses of S7006 CD/P4ADGB Bearing
S7006 CD/P4ADGB Bearing is commonly used in high-precision machine tools, where its angular contact design ensures accurate spindle rotation. The sealed construction helps keep contaminants out, extending service life in demanding workshop conditions.

In robotics, S7006 CD/P4ADGB Bearing provides smooth motion control for articulated arms, thanks to its light preload and universal matching capability. The phenolic cage reduces friction, making it ideal for repetitive, high-speed movements.

For medical imaging devices like CT scanners, S7006 CD/P4ADGB Bearing offers reliable performance with minimal vibration. Its P4A tolerance class ensures the precision needed for sensitive diagnostic equipment.

Automotive applications include electric vehicle motors, where S7006 CD/P4ADGB Bearing handles combined radial and axial loads efficiently. The grease lubrication and temperature range suit both cold starts and sustained high-speed operation.

In aerospace systems, S7006 CD/P4ADGB Bearing’s matched set design accommodates complex load arrangements in flight control mechanisms. The chrome steel construction withstands rigorous operational demands while maintaining precision.
