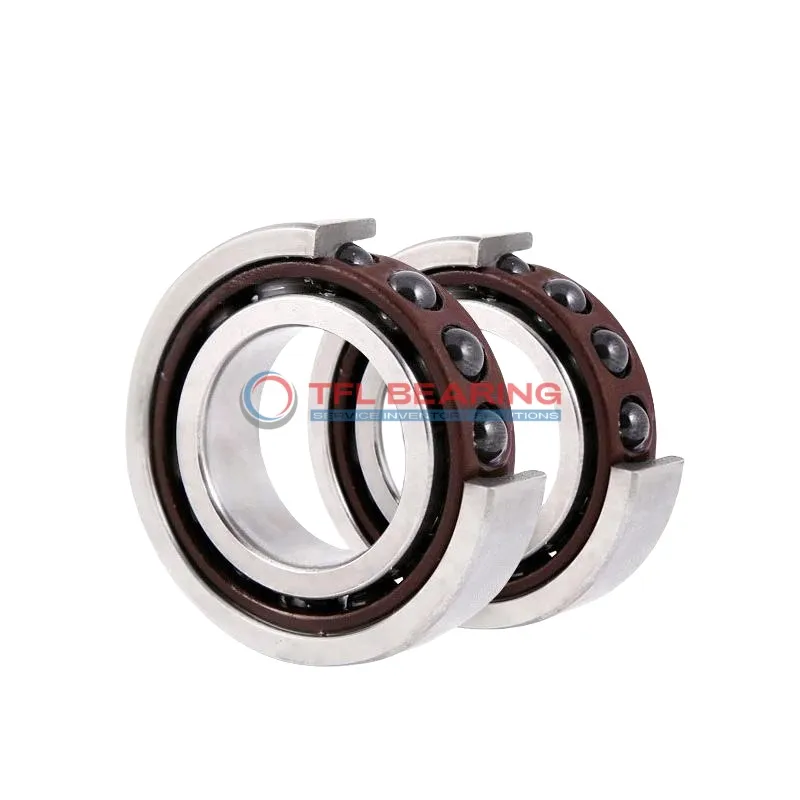

Super Precision Angular Contact Ball Bearings S7006 CB/HCP4ADGA

Super Precision Angular Contact Ball Bearings S7006 CB/HCP4ADGA

The S7006 CB/HCP4ADGA is a super precision angular contact ball bearing with a 30mm bore and 55mm outer diameter, crafted from durable chrome steel and ceramic balls. It handles radial loads up to 2340 lbf and spins smoothly at speeds up to 100,500 RPM.

Its sealed design keeps grease in and contaminants out, while the phenolic cage ensures quiet, long-lasting performance. The bearing operates well in temperatures from -30°C to 110°C, making it versatile for various environments.

This model is universally matched, allowing flexible arrangements like back-to-back or face-to-face setups. Ideal for high-precision applications such as machine tools or spindle drives where accuracy and speed are crucial.

Weighing just 0.25kg, it’s lightweight yet robust, with a P4A tolerance class for exceptional precision. Compatible with SKF bearings for easy replacements.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number S7006 CB/HCP4ADGA
  • Brand TFL
  • Interchangeable SKF
  • Bore Dia 30 mm
  • Bore Dia Tolerance -0.004mm to 0
  • Outer Dia 55 mm
  • Outer Dia Tolerance -0.004mm to 0
  • Width 26 mm
  • Width Tolerance -0.2mm to 0
  • Ball Dia 4.762 mm
  • Ball Qty 20
  • Contact Angle 15°
  • Tolerance Class P4A
  • System of Measurement Metric
  • Seal Type Sealed
  • Matched Arrangement Universal matching
  • Number Of Bearings In Matched Set 2
  • Universal Matching Bearing Yes, back-to-back (<>), face-to-face (><) or tandem (>>)
  • Preload Extra light / Class A
  • For Load Direction Angular Contact
  • Ring Material Chrome Steel
  • Ball Material Ceramic
  • Cage Material Phenolic
  • Dynamic Radial Load 2340 lbf
  • Static Radial Load 1868 lbf
  • Lubrication Grease
  • Temperature Range - 30°C to 110 °C
  • Max Speed 100500 rpm
  • Weight 0.25 kg
Super Precision Angular Contact Ball Bearings S7006 CB/HCP4ADGA dimension drawing
Download DWG Download PDF

Features

How Does S7006 CB/HCP4ADGA Bearing Achieve Super Precision?

S7006 CB/HCP4ADGA Bearing features a 15° contact angle and ceramic balls, ensuring high precision in angular contact applications.
Its phenolic cage maintains ball alignment, reducing friction and enhancing performance.
With a dynamic radial load capacity of 2340 lbf, it handles demanding tasks efficiently.
The sealed design and grease lubrication allow it to operate smoothly at speeds up to 100,500 rpm.

Application

Industrial Uses of S7006 CB/HCP4ADGA Bearing
S7006 CB/HCP4ADGA Bearing is commonly used in high-speed machine tools, where its ceramic balls and phenolic cage reduce friction and heat buildup. The sealed design also helps keep contaminants out, ensuring longer service life.

What Makes S7006 CB/HCP4ADGA Bearing a Preferred Choice?
In robotics, S7006 CB/HCP4ADGA Bearing offers smooth motion control thanks to its angular contact design and extra-light preload. The universal matching feature makes it easy to install in various configurations.

Perfect Fit for Automation: S7006 CB/HCP4ADGA Bearing
S7006 CB/HCP4ADGA Bearing works well in automated production lines, handling both radial and axial loads efficiently. Its P4A tolerance class ensures precision in repetitive tasks.

Medical vs Industrial: Where S7006 CB/HCP4ADGA Bearing Excels
In medical imaging devices, S7006 CB/HCP4ADGA Bearing provides quiet and reliable operation. For industrial pumps, its high-speed capability and grease lubrication make it a dependable choice.
