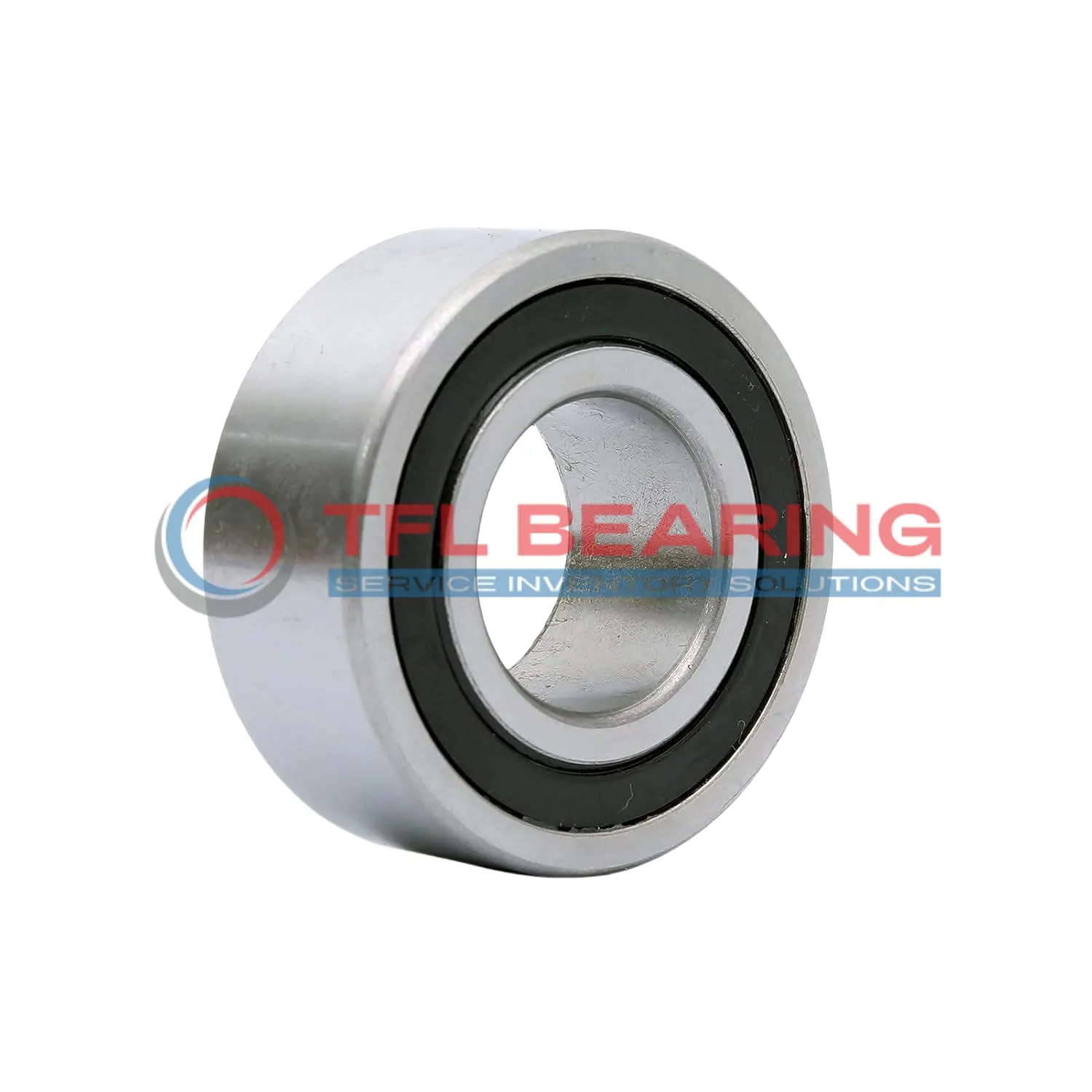

Super Precision Angular Contact Ball Bearings S7006 ACE/P4BVG275

Super Precision Angular Contact Ball Bearings S7006 ACE/P4BVG275

The S7006 ACE/P4BVG275 is a super precision angular contact ball bearing with a 30mm bore and 55mm outer diameter, crafted from high-quality chrome steel. It handles radial loads up to 1989 lbf and operates smoothly at speeds up to 35,000 RPM.

Its sealed design keeps lubrication in and contaminants out, while the phenolic cage ensures quiet, long-lasting performance. The 25° contact angle makes it ideal for combined radial and axial loads.

This bearing comes preloaded and matched for precision applications, with a P4 tolerance class for exceptional accuracy. It works well in temperatures from -30°C to 110°C.

Weighing just 0.12kg, it’s perfect for high-speed spindles, machine tools, or other applications demanding precision and reliability. Interchangeable with SKF bearings for easy replacement.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number S7006 ACE/P4BVG275
  • Brand TFL
  • Interchangeable SKF
  • Bore Dia 30 mm
  • Bore Dia Tolerance -0.005mm to 0
  • Outer Dia 55 mm
  • Outer Dia Tolerance -0.007mm to 0
  • Width 13 mm
  • Width Tolerance -0.2mm to 0
  • Ball Dia 6.35 mm
  • Ball Qty 17
  • Contact Angle 25°
  • Tolerance Class P4 (ABEC-7)
  • System of Measurement Metric
  • Seal Type Sealed
  • Matched Arrangement Available
  • Preload Available
  • For Load Direction Angular Contact
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Phenolic
  • Dynamic Radial Load 1989 lbf
  • Static Radial Load 1125 lbf
  • Lubrication Lubricated
  • Temperature Range -30° to 110 °C
  • Max Speed 35000 rpm
  • Weight 0.12 kg
  • Price（$） 157.941
Super Precision Angular Contact Ball Bearings S7006 ACE/P4BVG275 dimension drawing
Download DWG Download PDF

Features

Performance Features of S7006 ACE/P4BVG275 Bearing

S7006 ACE/P4BVG275 Bearing is designed with a 25° contact angle, optimising load distribution for angular contact applications.
Its chrome steel rings and balls ensure durability, while the phenolic cage provides stability at high speeds.

The bearing supports dynamic radial loads up to 1989 lbf, making it suitable for precision tasks.
With a maximum speed of 35,000 rpm, it delivers smooth and efficient performance.

S7006 ACE/P4BVG275 Bearing operates in temperatures from -30° to 110°C, ensuring reliability in varied conditions.
Its sealed design and preload availability further enhance its performance and longevity.

Application

Common Applications of S7006 ACE/P4BVG275 Bearing
S7006 ACE/P4BVG275 Bearing is widely used in high-precision machine tools, where its 25° contact angle ensures accurate radial and axial load handling. The sealed design keeps contaminants out, making it reliable for long-term use.

In robotics, S7006 ACE/P4BVG275 Bearing supports smooth motion in articulated arms, thanks to its phenolic cage and chrome steel construction. Its high-speed capability (up to 35,000 rpm) is ideal for automated systems.

For medical imaging devices, S7006 ACE/P4BVG275 Bearing’s P4 tolerance class guarantees minimal vibration and noise. The lubricated design ensures consistent performance in sensitive diagnostic equipment.

In automotive applications, S7006 ACE/P4BVG275 Bearing enhances performance in electric vehicle motors, where precision and durability are key. Its matched arrangement option allows for customised load distribution.
