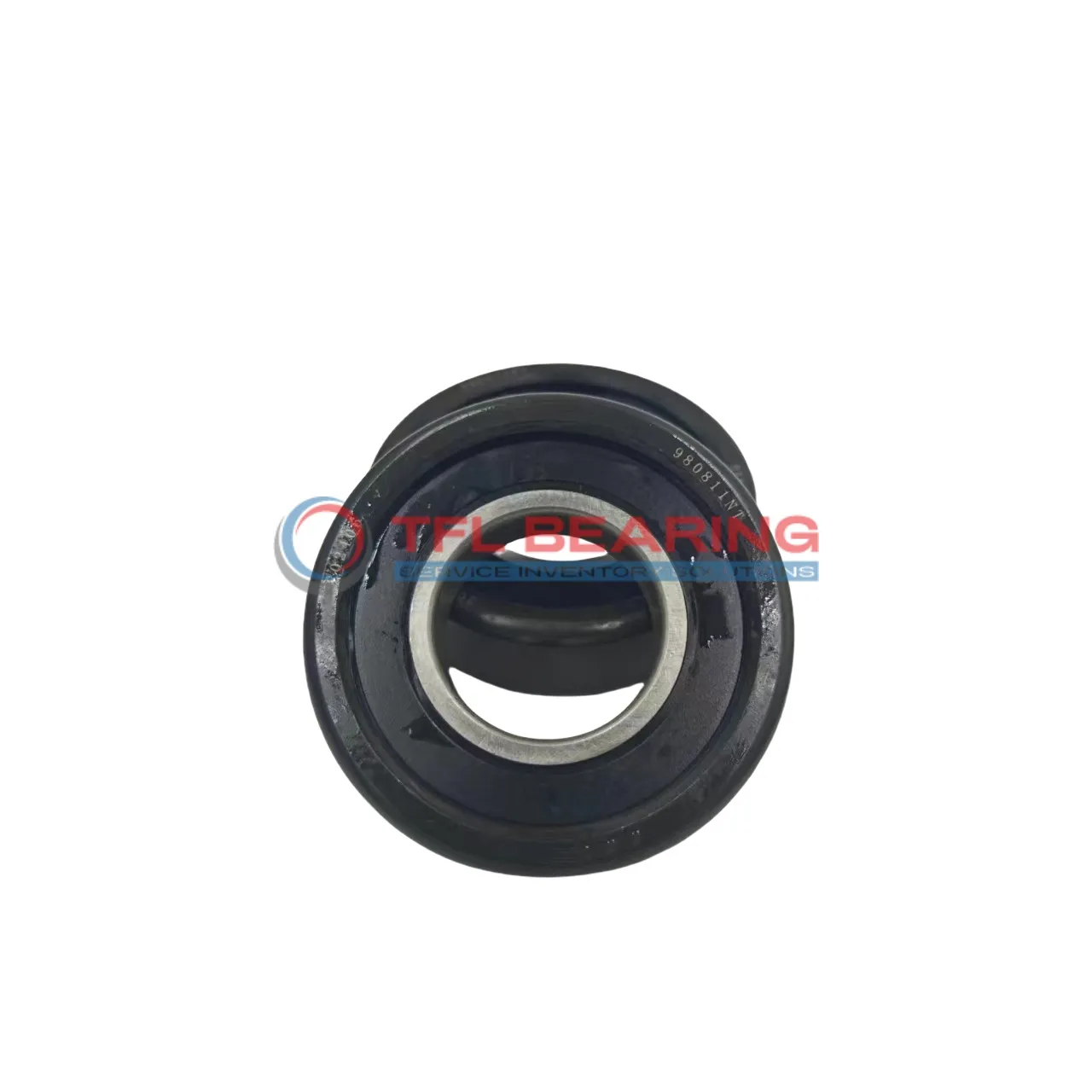

Mast Guide Bearings MG 205 FF

Mast Guide Bearings MG 205 FF

The MG 205 FF is a mast guide bearing measuring 25mm in inner diameter and 65mm in outer diameter, with a compact width of 21mm. Built for durability, it handles dynamic loads up to 14,020 N and static loads of 7,060 N.

Its design includes a 6mm radius for smooth operation, while the chrome steel construction ensures long service life. The bearing’s lightweight at just 0.34kg makes it easy to handle during installation.

Ideal for guiding applications in construction machinery or industrial equipment, it offers reliable performance under heavy loads. The balanced dimensions provide stability in tight spaces.

Compatible with OEM replacements, this bearing suits scenarios where precision and strength are key. Its straightforward design simplifies maintenance and inspection.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number MG 205 FF
  • Brand TFL & OEM
  • Inner Diameter (d) 25.000 mm
  • Outer Diameter (D) 65.00 mm
  • Inner Ring Width (b) 15 mm
  • Outer Ring Width (B) 21.000 mm
  • Radius (R) 6 mm
  • Dynamic Capacity (Cr.) 14,020 N
  • Static Capacity (Cor.) 7,060 N
  • Weight 0.3402 Kg
Mast Guide Bearings MG 205 FF dimension drawing
Download DWG Download PDF

Features

Performance Features of MG 205 FF Bearing

MG 205 FF Bearing is built with precise dimensions of 25.000 mm x 65.00 mm x 21.000 mm, ensuring a perfect fit for mast guide applications.
Its dynamic capacity of 14,020 N allows it to handle significant loads with ease.
The bearing’s static capacity of 7,060 N ensures stability even under heavy pressure.
With a weight of just 0.3402 Kg, it offers a balance of strength and lightweight design.

Application

Industrial Uses of MG 205 FF Bearing
MG 205 FF Bearing is commonly used in construction equipment, particularly in mast guide systems for cranes and lifts. Its robust design handles heavy loads while maintaining smooth movement.

Where Is MG 205 FF Bearing Used?
You’ll often find MG 205 FF Bearing in agricultural machinery, where it supports rotating parts like harvesters and tractors. The high dynamic capacity ensures reliability in tough working conditions.

Built for Heavy-Duty Use: MG 205 FF Bearing
MG 205 FF Bearing works well in material handling systems, such as conveyor belts and forklifts. The stainless steel construction offers good resistance to wear and corrosion.

Automotive vs Aerospace: Applications of MG 205 FF Bearing
In automotive applications, MG 205 FF Bearing fits well in steering columns and gear mechanisms. For aerospace, it’s suitable for auxiliary equipment due to its precise dimensions.

Perfect Fit for Automation: MG 205 FF Bearing
MG 205 FF Bearing is a solid choice for robotic arms and automated assembly lines. The smooth operation and durability make it ideal for repetitive tasks.
