Super Precision Angular Contact Ball Bearings 7224 ACD/P4ADT

Brand: TFL Bearing Interchangeable: SKF 7224 ACD/P4ADT 120 mm × 215 mm × 80 mm Metric Open
Part number: 7224 ACD/P4ADT
Super Precision Angular Contact Ball Bearings 7224 ACD/P4ADT
In Stock
Price on request
Send your part number and quantity for a quote
Get a Quote WhatsApp
  • ISO 9001 quality system
  • Pre-shipment inspection
  • Lead time confirmed with your quote
Dimensions
Bore Dia120 mm
Bore Dia Tolerance-0.004mm to 0
Outer Dia215 mm
Outer Dia Tolerance-0.004mm to 0
Width80 mm
Width Tolerance-0.2mm to 0
Ball Dia30.162 mm
Performance
PreloadAvailable
Dynamic Radial Load69,075 lbf
Static Radial Load82,125 lbf
Temperature Range- 30°C to 110 °C
Max Speed10,000 rpm
Characteristics
Ball Qty15
Contact Angle25°
Tolerance ClassP4A
System of MeasurementMetric
Seal TypeOpen
Matched Arrangement2 bearings << DT
Number Of Bearings In Matched Set2
Universal Matching BearingNo
For Load DirectionAngular Contact
LubricationLubricated
Weight10.8 kg
Material
Ring MaterialChrome Steel
Ball MaterialChrome Steel
Cage MaterialPhenolic

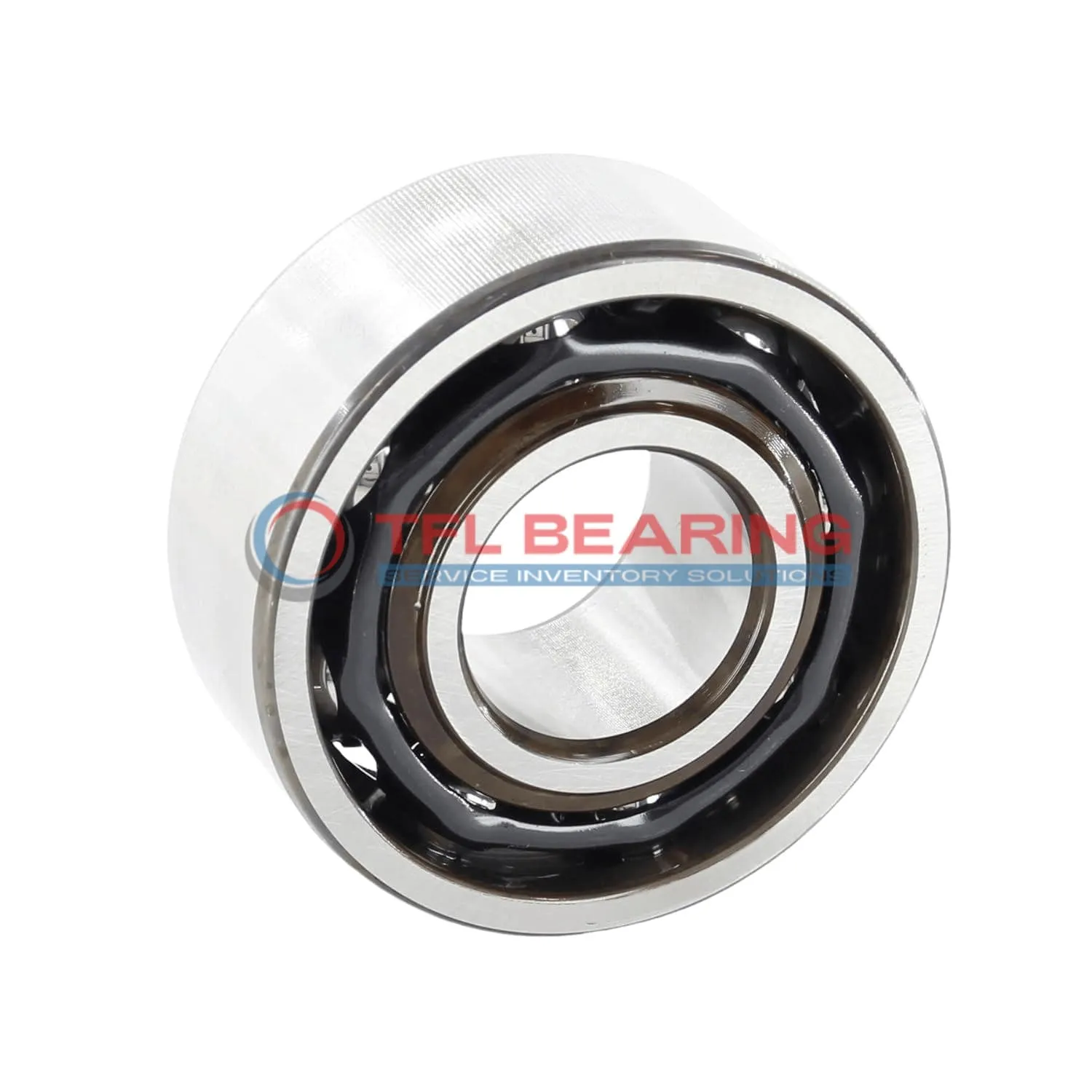

Dimension drawing · click to enlarge

Description

The 7224 ACD/P4ADT is a super precision angular contact ball bearing with a 120mm bore and 215mm outer diameter, crafted from high-quality chrome steel. It handles radial loads up to 69075 lbf and operates smoothly at speeds up to 10000 RPM.

With a 25° contact angle and matched arrangement of two bearings, it offers excellent stability for angular loads. The open design and phenolic cage ensure durability and easy maintenance.

This bearing is ideal for high-precision applications like machine tool spindles or industrial pumps. It works reliably in temperatures from -30°C to 110°C and comes pre-lubricated for immediate use.

Weighing 10.8kg, it’s a robust choice for heavy-duty machinery. Compliant with P4A tolerance standards, it’s interchangeable with SKF bearings for easy replacements.

Features

Performance Features of 7224 ACD/P4ADT Bearing

7224 ACD/P4ADT Bearing is designed with a 25° contact angle, optimising load distribution for angular contact applications.

Its chrome steel rings and balls ensure durability, while the phenolic cage reduces friction and noise.

With a dynamic radial load capacity of 69075 lbf, it handles demanding conditions reliably.

The P4A tolerance class guarantees high precision, making it suitable for critical operations.

How Does 7224 ACD/P4ADT Bearing Achieve High Precision?

7224 ACD/P4ADT Bearing’s matched arrangement of two bearings enhances stability and load distribution.

Its preload availability ensures minimal deflection, maintaining accuracy in high-speed applications.

The open design allows for efficient lubrication, extending service life and reducing maintenance.

With a maximum speed of 10,000 rpm, it balances performance and precision effortlessly.

Engineered for Precision: 7224 ACD/P4ADT Bearing

7224 ACD/P4ADT Bearing’s chrome steel construction resists wear, ensuring long-term reliability.

The 15 balls, each 30.162 mm in diameter, provide smooth operation under heavy radial loads.

Its temperature range of -30°C to 110°C makes it versatile for various environments.

Weighing 10.8 kg, it combines robust construction with precision engineering for optimal performance.

Application

Key Fields for 7224 ACD/P4ADT Bearing
7224 ACD/P4ADT Bearing is commonly used in high-precision machine tools, where its angular contact design ensures accurate spindle rotation. The matched arrangement of two bearings enhances stability, making it suitable for heavy cutting operations.

In robotics, 7224 ACD/P4ADT Bearing supports articulated arms, providing smooth movement and load handling. Its phenolic cage reduces friction, which is ideal for repetitive tasks in automated systems.

For aerospace applications, 7224 ACD/P4ADT Bearing’s chrome steel construction withstands high speeds and loads in components like landing gear. The P4A tolerance class guarantees precision even under demanding conditions.
